8
EXISTING CONSTRUCTION ASSEMBLY INSTRUCTIONS (Continued)

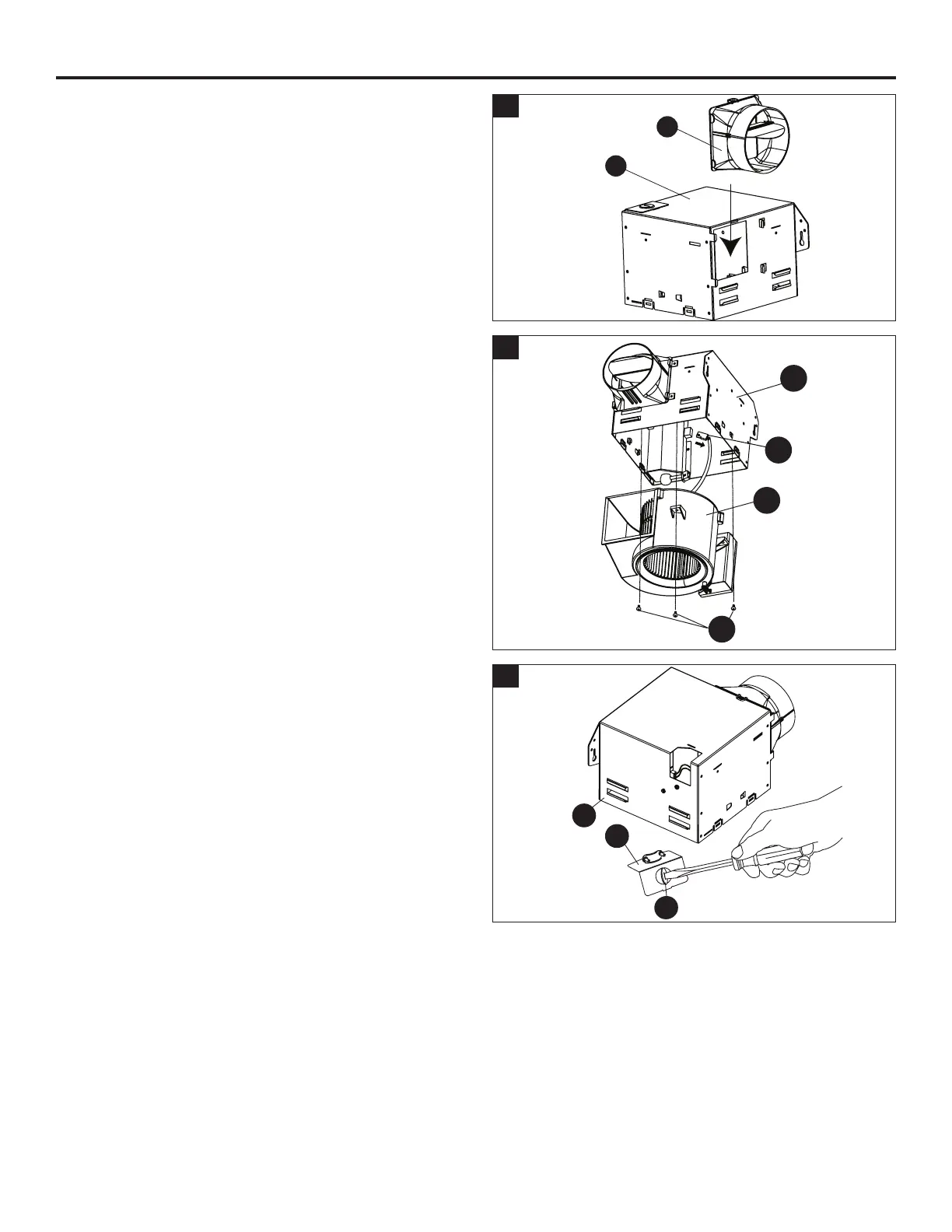

4. Attach the duct connector (C) to the fan housing (A).
4
A
C
5. Remove the three screws (5.1) on the side of the fan
housing (A) that hold the fan motor (5.2) in place. With the
screws removed, unplug the fan motor plug (5.3) and pull
the fan motor out of the fan housing (A).
NOTE: Save the screws for reinstallation of the fan motor.
5
5.1
5.2
5.3
A
6. Remove the wiring box cover (6.1) from the fan housing
(A). Remove the wiring knockout (6.2) from the wiring
box cover (6.1) with a athead screwdriver.
6
2.1
A
2.2
6.2
6.1
To Next Page
