V-Tec DT16D3 - Parts and Functions; Monitor Mounting

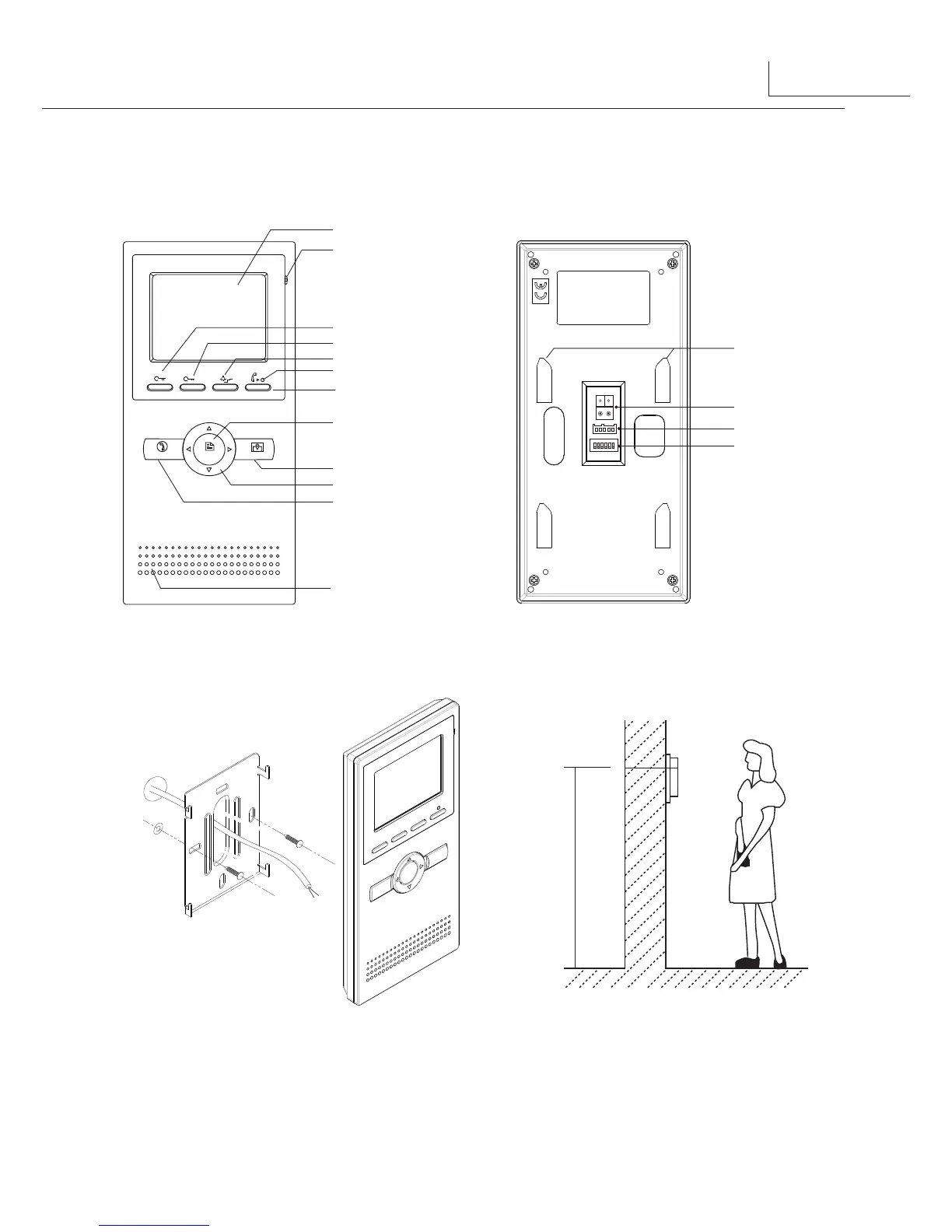

1.Parts and Functions
2.Monitor Mounting
1
1.● Use●the●screws●to●fix●the●Mounting●Bracket●on●the●mounting●box.(fitting●accesories●
includes●a●Bracket●(Two●pieces●of●4X25●screws●are●needed●for●fastening●the●Mounting●
Bracket),●Special●2●wire●cables●to●connect●with●Monitor)
2.● Wire●the●system●correctly(see●the●later●connection●chapter)●then●hang●the●Monitor●on●
the●Mounting●Bracket●firmly.
145~160 cm
Mounting Hook
Connection Port
Extend Port
DIP Switches
1 2 3 4 5 6
ON
LCD Screen
Microphone
Second UNLOCK Button
Staircase Light Button
LED Indicator
CALL Button
MENU Button
MONITOR Button
Direction Button
TALK Button
Speaker
UNLOCK Button
TALK
MENU
MONITOR
2
