V-Tec DT591 - Terminal Descriptions; Specifications; Mounting; Mounting Without Rainy Cover

-2-
•
Lock Control Jumper:
To select the lock type: see 5.2.1 , 5.2.2
•
Doorstation Code DIP:
Total 4 doorstations can be supported,see 6.1
•
Main Connect Port:
To connect the bus line and the electronic locks.
• BUS: Connect to the bus line, no polarity.
• PL: External lock power input, connect to the power positive(power +).
• S1+, S2+: Lock power(+) output, to connect 2 locks.
• S-: Lock power(-) output, connect to the power(-) input of locks(only when using the camera to power the locks,
if using the external power supply for the locks, the S- will not be connected).
3.Specications
Lock Power supply: 12Vdc, 300mA(Internal Power)
Power Consumtion: 1W in standby, 12W in working
NO, COM dry contact: Max. 48V dc 1.5A
Unlocking time: 1 to 9 seconds, set by Monitor
Working temperature: -10ºC ~ 45ºC
4.Mounting

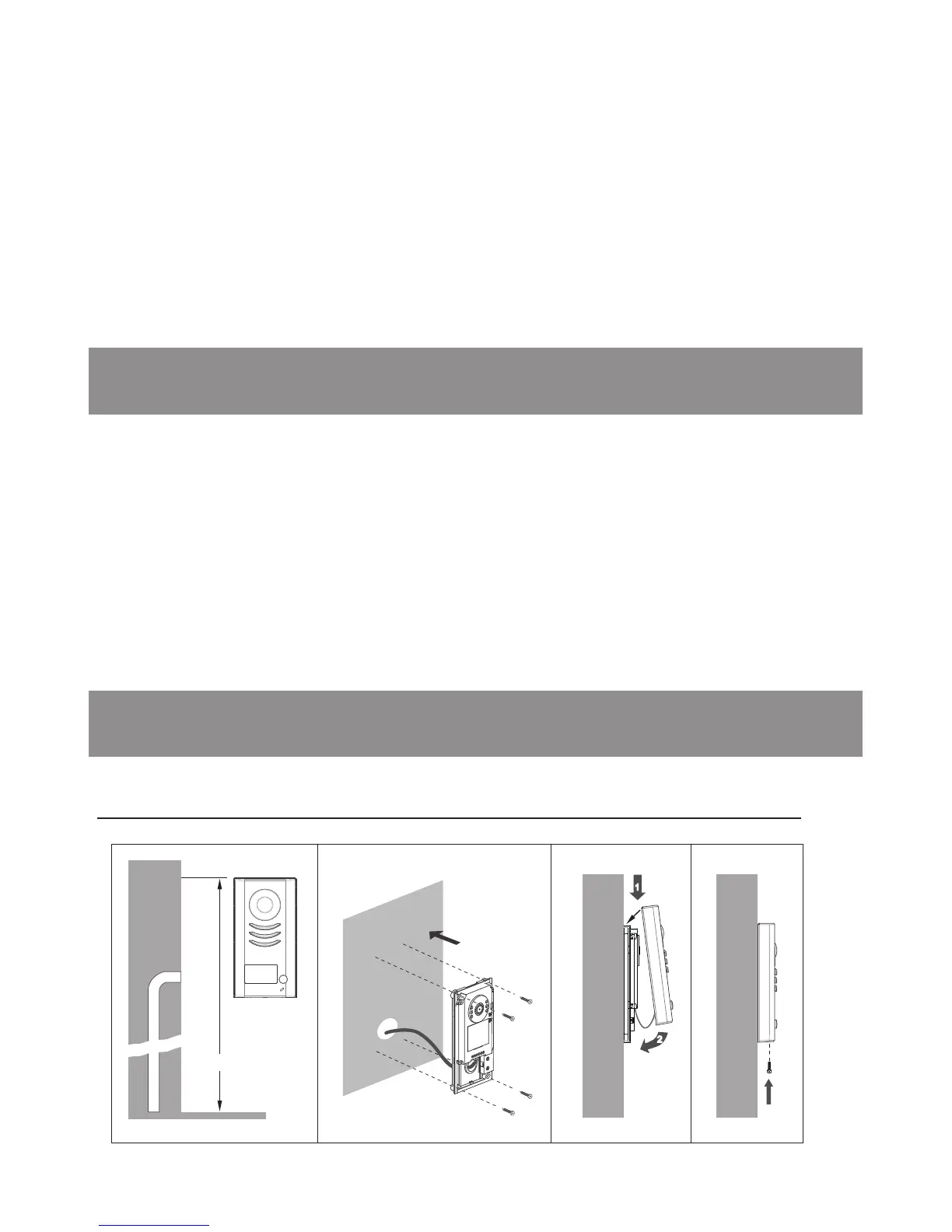

4.1 Mounting Without Rainy Cover
160-165cm
1
2
1 2 3 4
