23

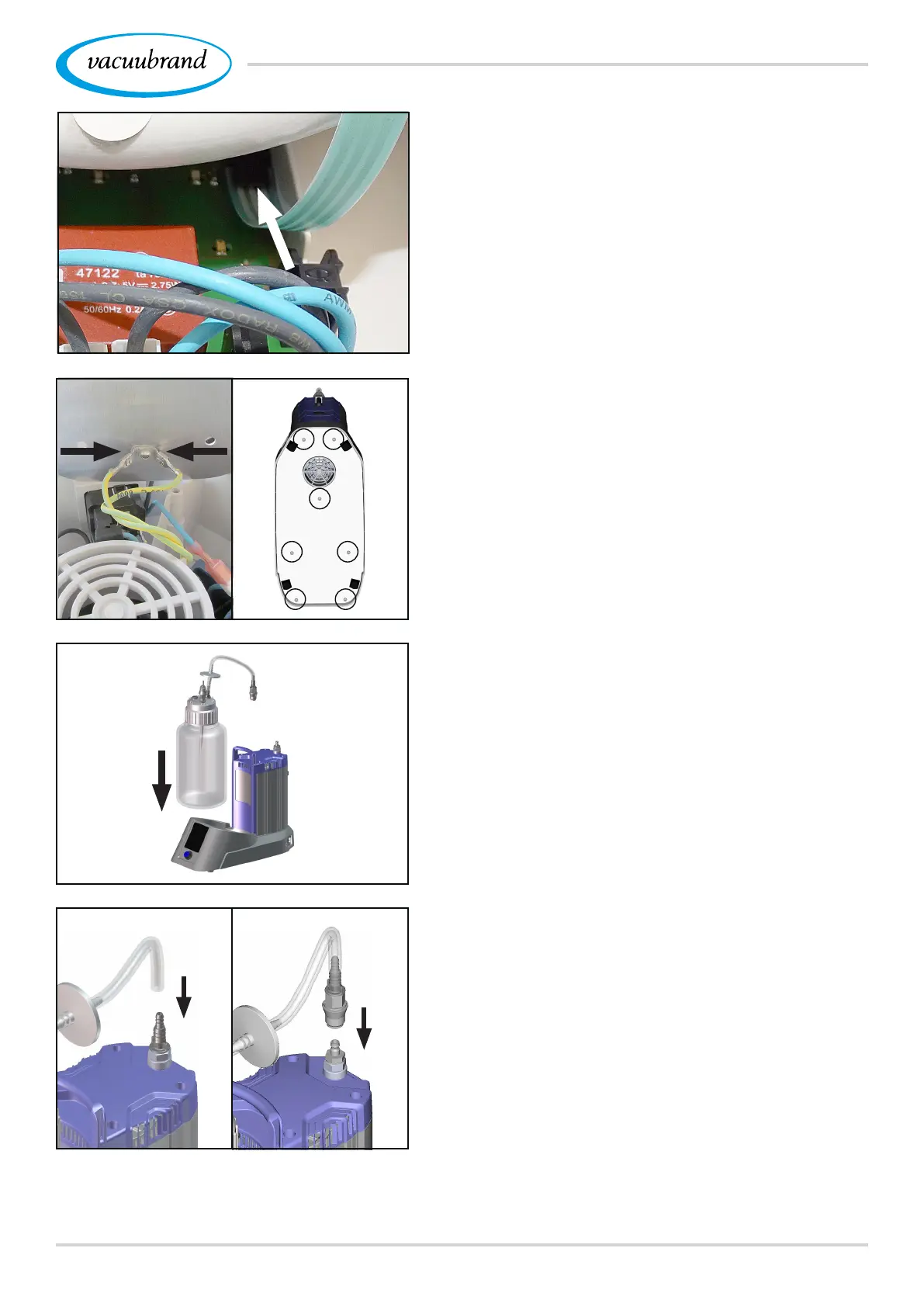

Replacing the circuit board
19. Only BVC professional / G:Plugthe
ribboncabletotheelectronicboard.
Checkthermseat.
23.PositiontheBVConthefeet.
24.Positionbottleinthesupport.
20.Checkthermseatoftheearthcables
atthebaseplate.
21.Positionthebaseplate.
22.Screwthebaseplate,max.torque1.5
Nm.
25.DependingonBVCversion,position
tubingtohosenozzleorquickcou‑
pling.
