Vaillant ecoTEC plus Setup Instructions

5 Set-up
34 Set-up instructions 0020200969_07
Offset Length of the air
pipe
Offset Length of the air
pipe
Offset Length of the air
pipe
335 125 555 345 775 565
340 130 560 350 780 570
345 135 565 355 785 575
350 140 570 360 790 580
355 145 575 365 795 585
360 150 580 370 800 590
365 155 585 375
370 160 590 380
375 165 595 385
380 170 600 390
385 175 605 395
390 180 610 400
395 185 615 405
400 190 620 410
405 195 625 415
410 200 630 420
415 205 635 425
420 210 640 430
425 215 645 435
430 220 650 440
435 225 655 445
440 230 660 450
445 235 665 455
450 240 670 460
455 245 675 465
460 250 680 470
465 255 685 475

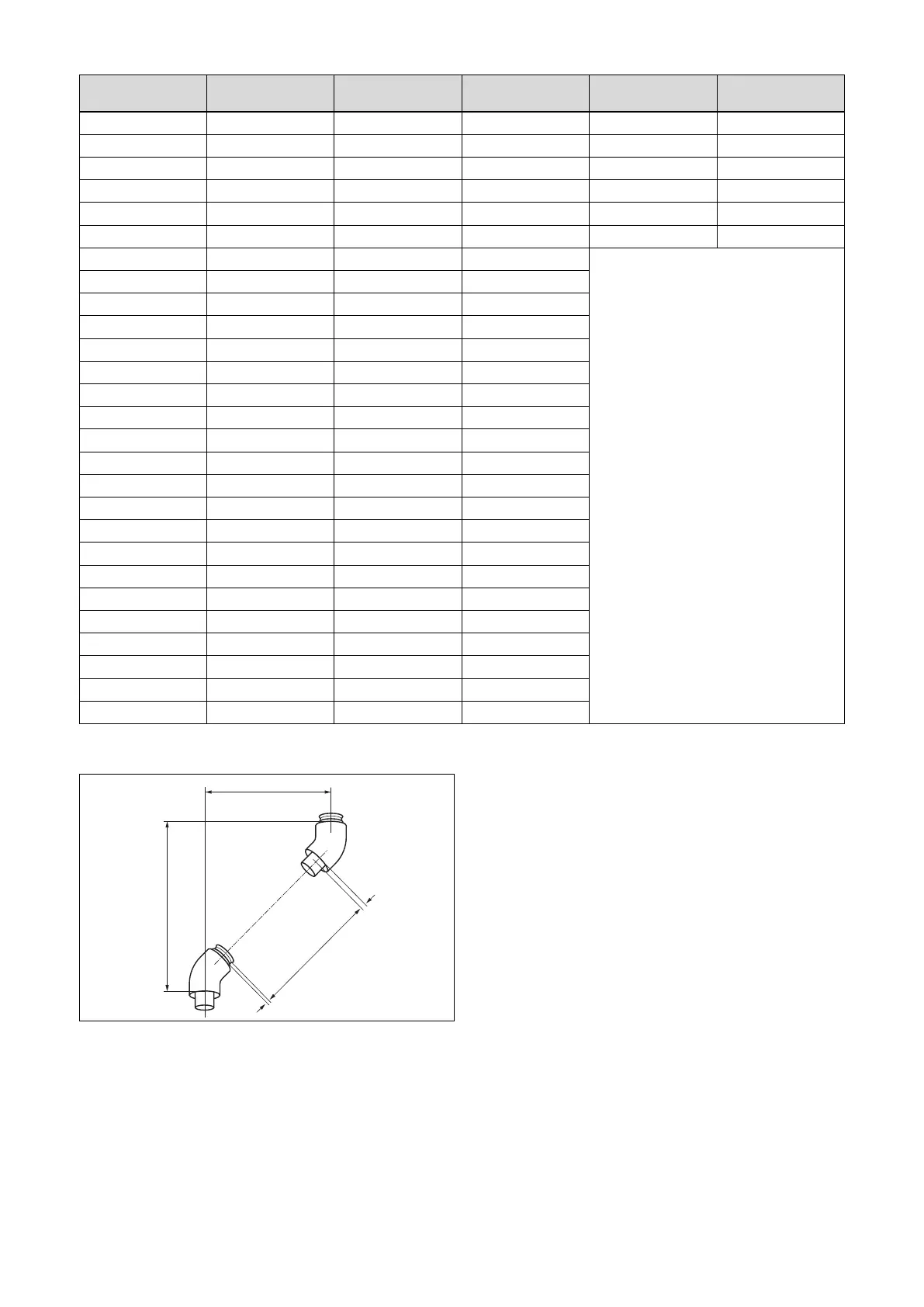

5.7.3.4 Installing the 45° elbow, 80/125 mm diameter
C
A
B
5
5
A Offset
B Length of the air pipe
C Height
1. Measure the offset (A), e.g. with 300 mm.

Vaillant ecoTEC plus Specifications

General

Model	ecoTEC plus
Category	Boiler
Type	Condensing
Dimensions (H x W x D)	720mm x 440mm x 338mm
ErP Rating	A
Mounting	Wall-mounted
Output Range	12kW to 38kW
Fuel Type	Natural Gas
Domestic Hot Water Output	38kW
Flow Rate	15.9 l/min
NOx Emissions	Class 5
Efficiency	94% (SAP 2009)
