4.1
4.2
4.3
4.4
4.5
4.6a
4.6b
4.7a
VASELINE
A
2
1
B
*
*
2
1
VASELINE
2
1
P&P
EN_23
Assemble
drip tray
and grid
Clean the fi lter weekly

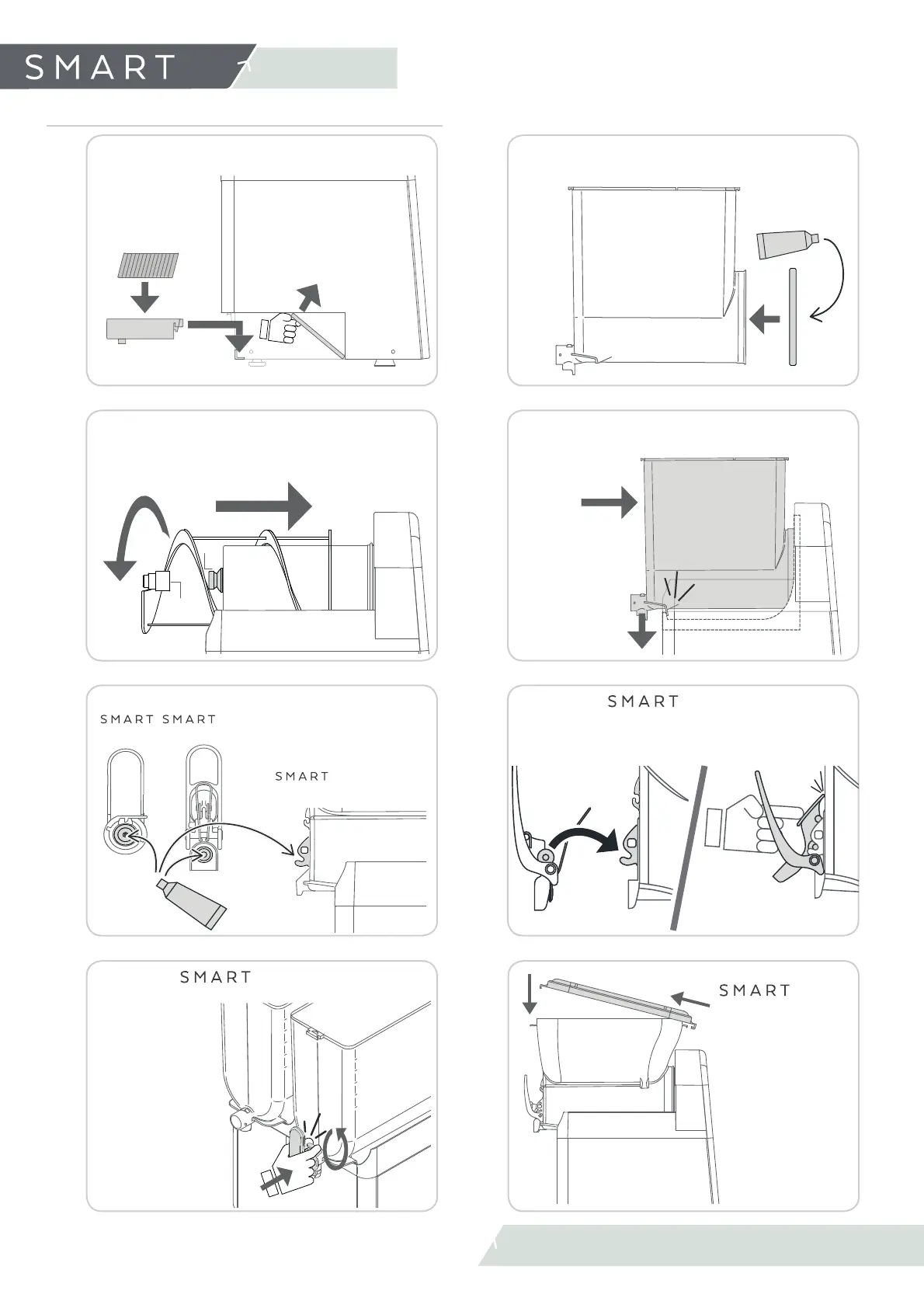

4. ASSEMBLY
Assemble and lubricate the seal
Assemble
mixer
Insert the mixer and rotate till
head (A) hooks with seal (B).
*Check if the gasket is its place if you disasbled it to clean.
Assemble
bowl
Push the bowl
downwards
until it hooks up
with the tray.
Lubricate Tap
Assemble
P&P tap
Support the bolts on their housings and press the
push cam until it clicks into the tap.
Assemble lid
7.Cleaning
7.2 How to clean the machine?
Lubricate the tap seal well.
On
P&P models,
lubricate the bowl hooks.
Assemble tap
Place the tap in
position and turn
counterclockwise
until click.
P & P
models
