RS-485 host

DC power supply

RS-485 +

RS-485 -

RS-485 common

Pin #1

Power supply

Pin #2

RS-485 -

Pin #3

Power GND

RS-485 common

Pin #4

RS-485 +

Pin #5

Probe

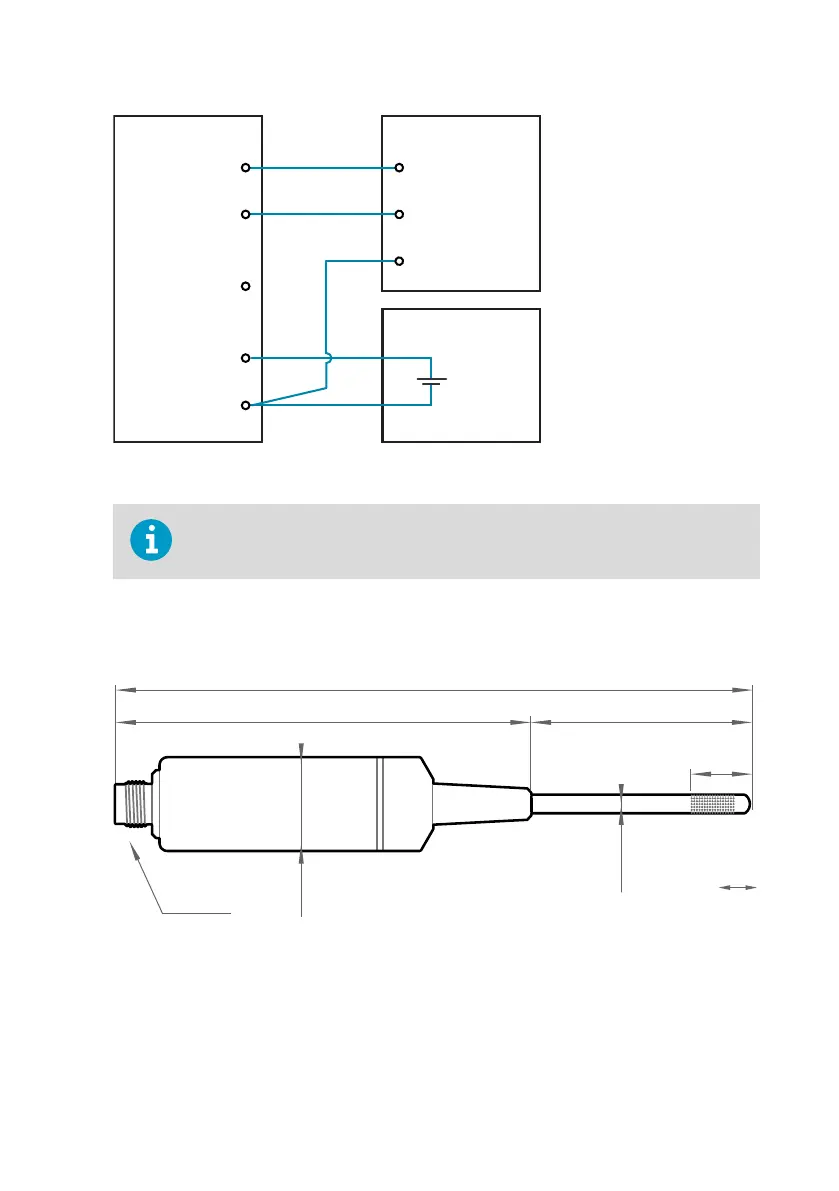

Figure 5 RS-485 wiring

Recommended maximum length of the RS-485 line is 30 m (98 ft).

4.3 HMP1 probe

112 [4.41]

162 [6.38]

Ø 25

[0.98]

M12/5

Ø 5

[0.20]

[0.63]

50 [1.97]

[in]

Figure 6 HMP1 probe dimensions

Vaisala HUMICAPâ Humidity and Temperature Probe HMP1 is designed for ambient

measurement in indoor spaces. Its probe head and body are integrated into a single unit with

no cable between them. HMP1 can be directly connected to Indigo200 series transmitters to

form a single wall-mounted unit.
