Property Description/Value

Adjustable installation depth 35 … 179 mm (1.37 … 7.05 in)

Materials

Probe AISI 316L

Probe body AISI 316L

Cable jacket FEP

136 [5.35]

Probe cable 2 m [6.56 ft]

Ø 25

[0.98]

M12/5

Ø 5

[0.2]

262 [10.32]

224 [8.82]

35 ... 179 [1.37 ... 7.05]

35 [1.37]

Ø 13.5

[0.53]

Fitting body

ISO1/2” or NPT1/2”

Ø 12

[0.47]

[in]

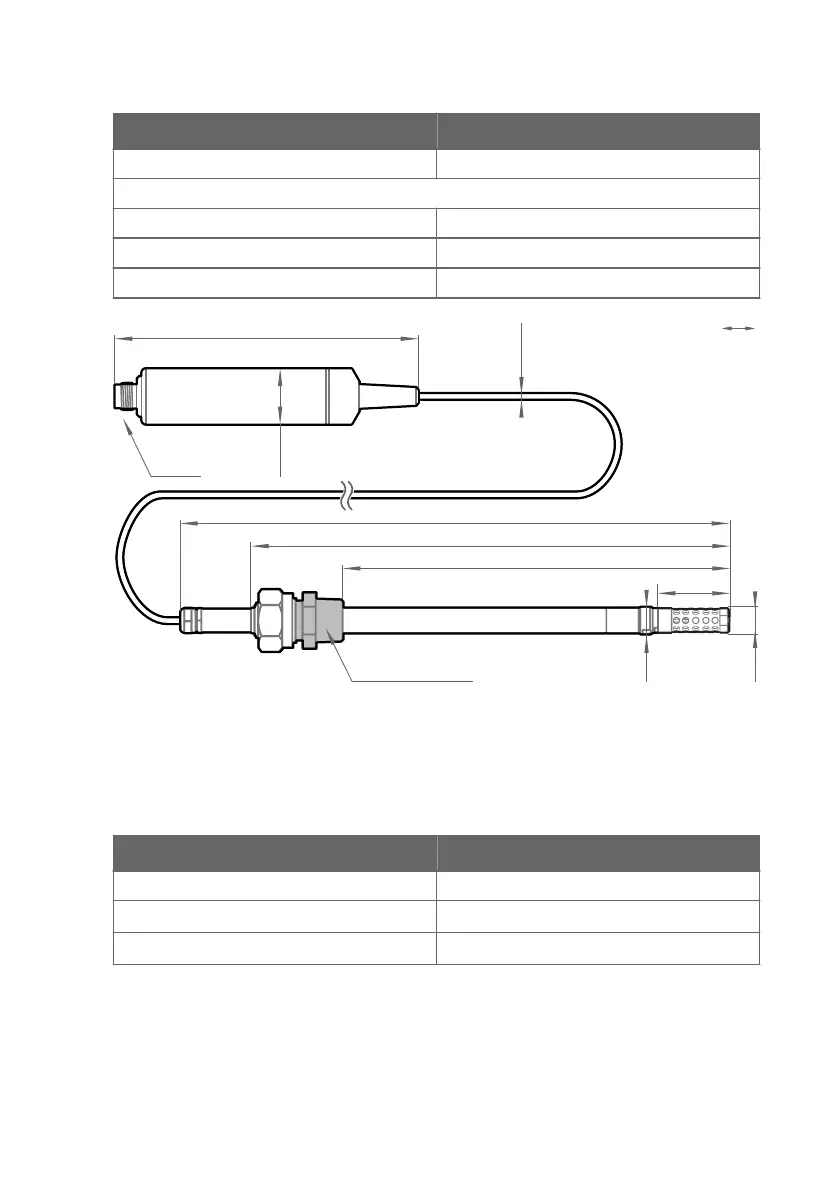

Figure 56 MMP8 dimensions

9.9

TMP1 speciﬁcations

Table 53 TMP1 measurement performance

Property Description/Value

Measurement range −70 … +180 °C (−94 … +356 °F)

Accuracy at +23 °C (+73.4 °F)

±0.1 °C (±0.18 °F)

Factory calibration uncertainty

±0.1 °C (±0.18 °F) at +23 °C (+73.4 °F)

Chapter 9 – Technical data
