Vaisala HMP7 - HMP8 Specifications

To Next Page

To Previous Page

136 [5.35]

Ø 25

[0.98]

M12/5

Ø 12

[0.47]

99.5 [3.92]

79.5 [3.13]

37.5 [1.48]

Groove for

lock ring

Ø 12

[0.47]

Ø 5

[0.2]

Probe cable

2 m [6.56 ft] or 10 m [32.8 ft]

[in]

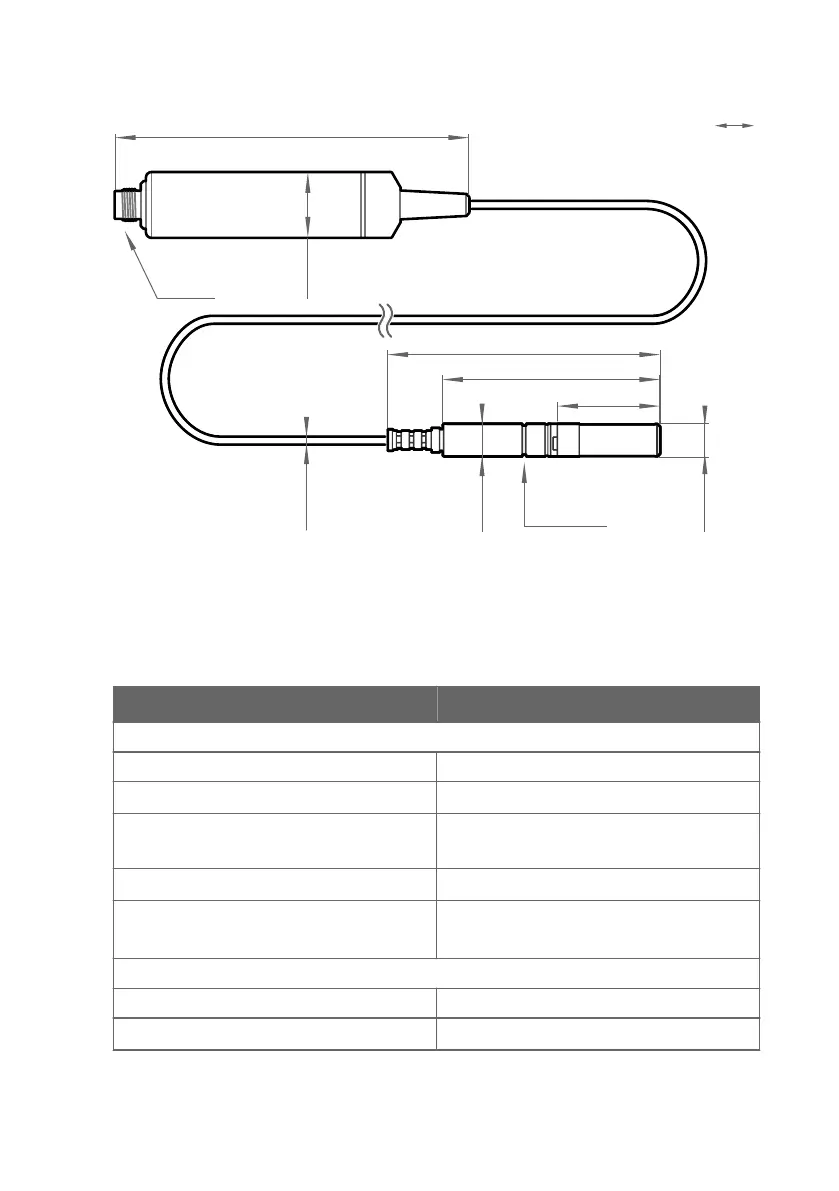

Figure 47 HMP7 probe dimensions

9.6

HMP8 speciﬁcations

Table 36 HMP8 measurement performance

Property Description/Value

Relative humidity

Measurement range 0 … 100 %RH

Accuracy at +23 °C (+73.4 °F)

±0.8 %RH (0 … 90 %RH)

Factory calibration uncertainty

±0.5 %RH (0 … 40 %RH)

±0.8 %RH (40 … 95 %RH)

response time 15 s

Sensor options HUMICAPâ R2

HUMICAPâ R2C

Temperature

Measurement range −70 … +180 °C (−94 … +356 °F)

Accuracy at +23 °C (+73.4 °F)

±0.1 °C (±0.18 °F)

Chapter 9 – Technical data
