Vaisala HUMICAP HMP155 User Manual

1
2 3
4
5
6
7
9
8
10 11
12
13
14
15

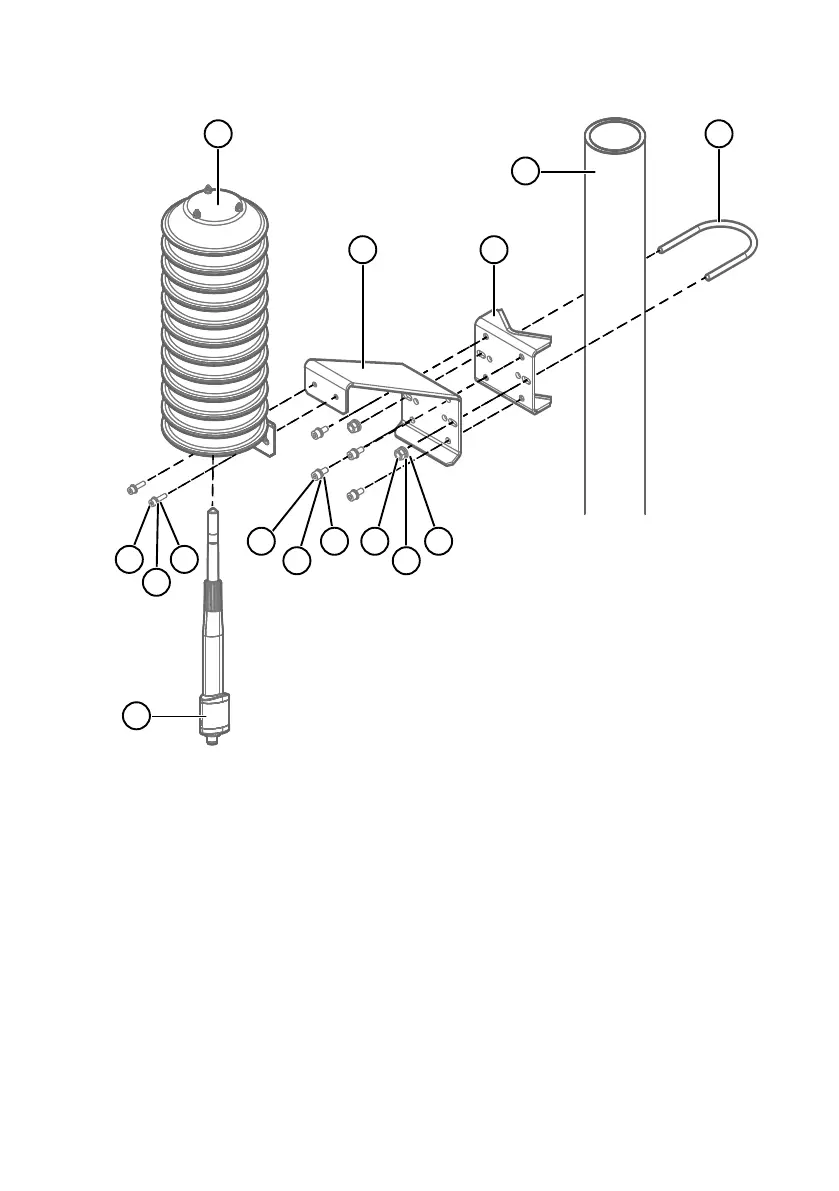

Figure 6 HMP155 and DTR503A installation accessories
1
Radiation shield (DTR503A)
2 Mounting plate
3 Support plate
4 Pole or support Ø 30 mm (1.18 in) or 60 mm (2.36 in)
5 U‑bolt
6 Hex screw M4×10 DIN912 (2 pcs). Tightening torque 5 Nm.
7 Spring washer B4 DIN127 (2 pcs)
8 Flat washer A4,3 DIN125 (2 pcs)
9 HMP155
10 Hex screw M5×12 DIN912 (4 pcs)
11 Spring washer B5 DIN127 (4 pcs)
12 Flat washer A5,3 DIN125 (4 pcs)
13 Nut M6 DIN934 (2 pcs)
14 Spring washer B6 DIN127 (2 pcs)
Chapter 3 – Installation
25

Vaisala HUMICAP HMP155 Specifications

General

Humidity Measurement Range	0 to 100 %RH
Operating Humidity Range	0 to 100 %RH
Protection Class	IP65
Measurement Parameters	Humidity and Temperature
Temperature Measurement Range	-40 to +60 °C
Temperature Accuracy	±0.2 °C
Operating Temperature Range	-40 to +60 °C
Humidity Sensor	Vaisala HUMICAP®
