Main menu
In the main menu, you can configure the MI70 settings and basic display options, view information about the probe,
access recordings and clear the memory, set alarms, start adjustments, and use the analog output option of the MI70
indicator.
To open the main menu and navigate in the menus:
1. Go to the basic display.
2. Press any arrow button, then select Open (must be pressed within 5 seconds or the indicator returns to the
basic display).
3. Move in the menus using the buttons.
4. Select an item with the button.
5. To return to the previous level, press .
6. To return to normal operation, press Exit.

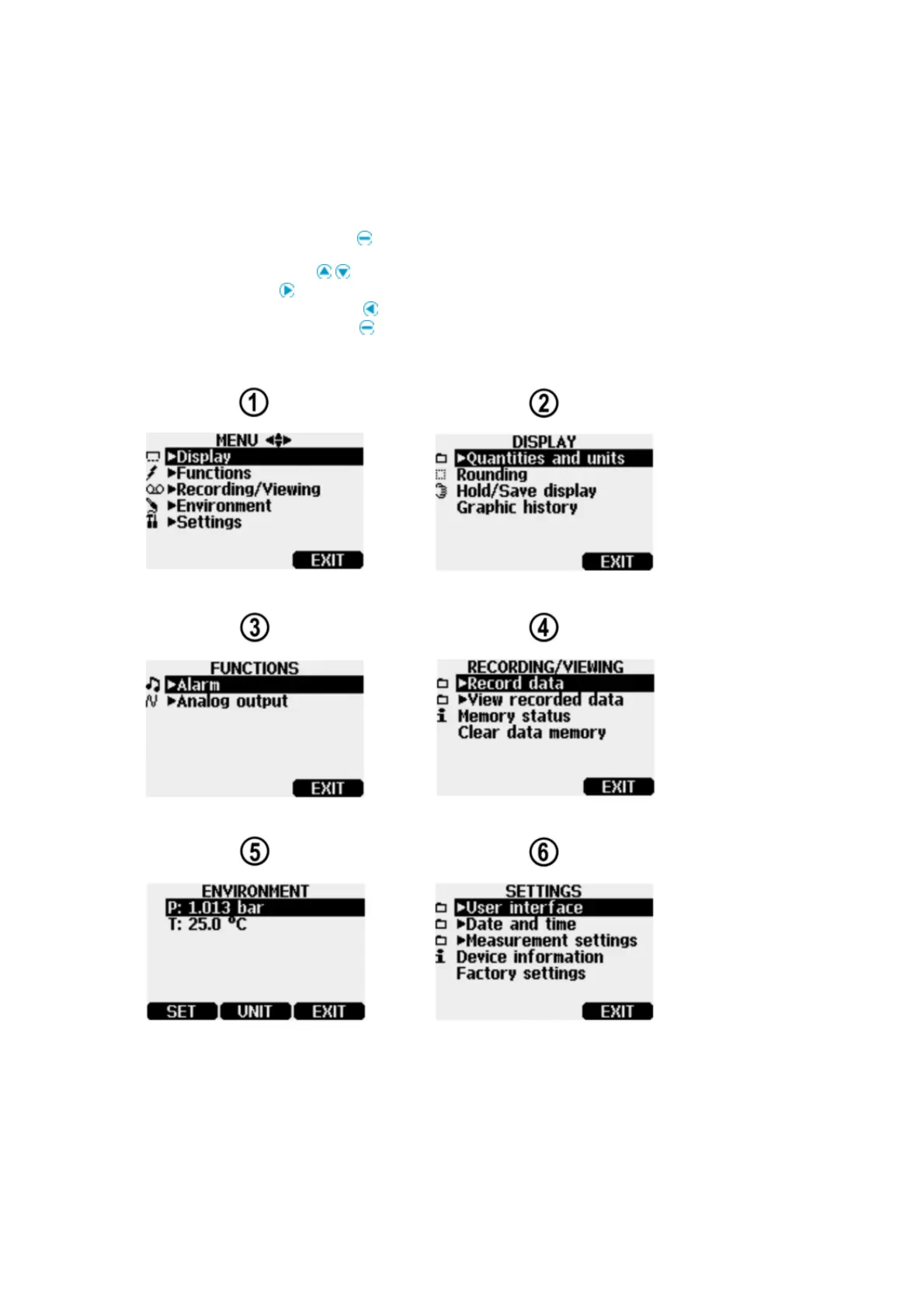

Figure 1. GM70 menus
1 Main menu
2 Display menu
3 Functions menu
4 Recording/Viewing menu
5 Environment menu
6 Settings menu
