EQUIPMENT DESCRIPTION

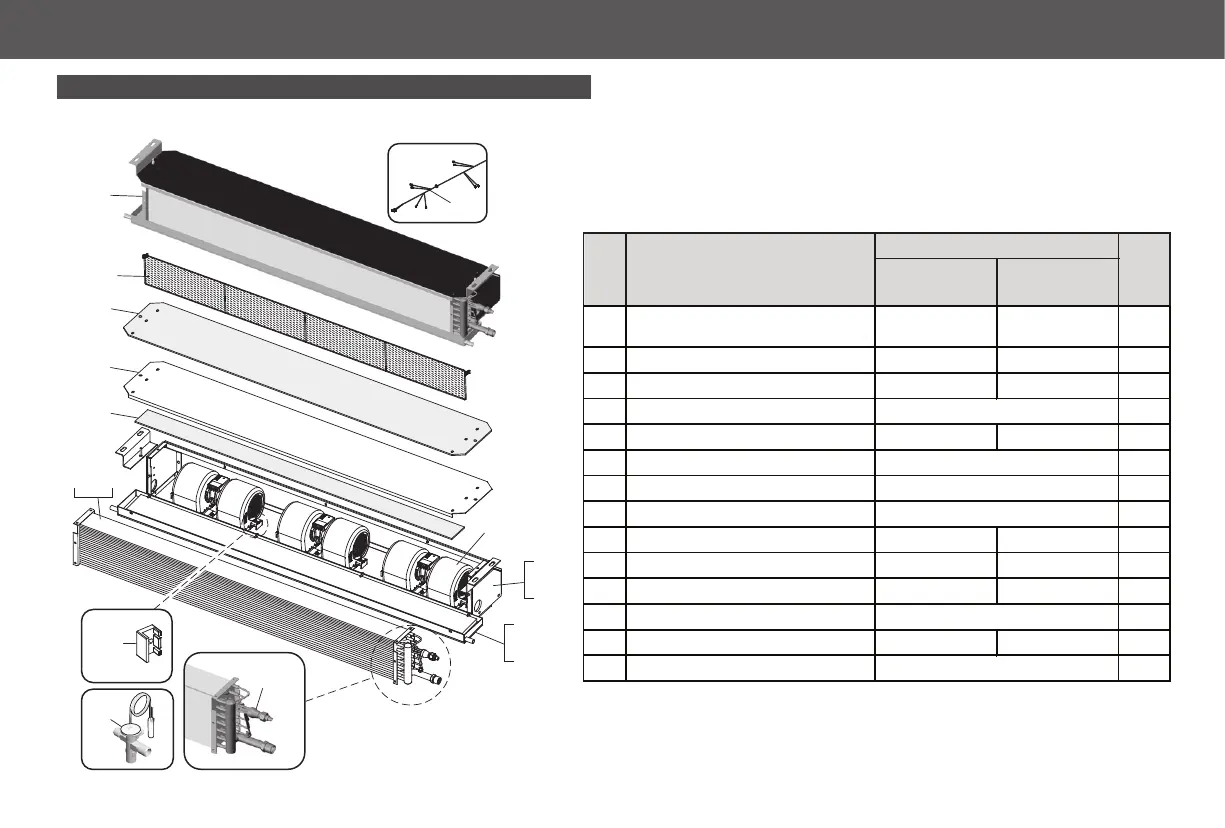

2.1- Components of Upper Evaporator Models: DS - ES - FS
NOTE: visit www.reparts.com to consult the complete parts catalog.
DD 430
WITHOUT HEATING WITH HEATING
1 Upper Evaporator Module
061-00262-000 RH
061-00263-000 LH
061-00262-001 RH
061-00263-001 LH
1
2 Upper Evaporator Capillary Tube Coil 006-00091-001 006-00176-000 1
3 Upper Heater Capillary Tube Coil - 006-00178-000 1
4 Expansion Valve 1
5 Evaporator Electric Wiring Harness 016-00021-000 016-00021-002 1
6 Radial Fan Clip 6
7 Radial Fan 24V 3
8 Armaflex Seat Foam -
9 Upper End cover 040-00554-000 040-02157-000 1
10 Right Hand End Cover 040-00555-000 040-02158-000 1
11 Left Hand End Cover 040-00556-000 040-02159-000 1
12 Tray / Fan Assembly 1
13 Air Filter Assembly 041-01502-000 041-01551-000 1
14 Evaporator Assembly 1
017-00309-000
021-00014-000
035-00049-001
041-00186-006
043-00182-002
ITEM DESCRIPTION
CODE
QUANT.
012-00081-000
44
