EQUIPMENT DESCRIPTION DD 430
NOTE: visit www.reparts.com to consult the complete parts catalog.

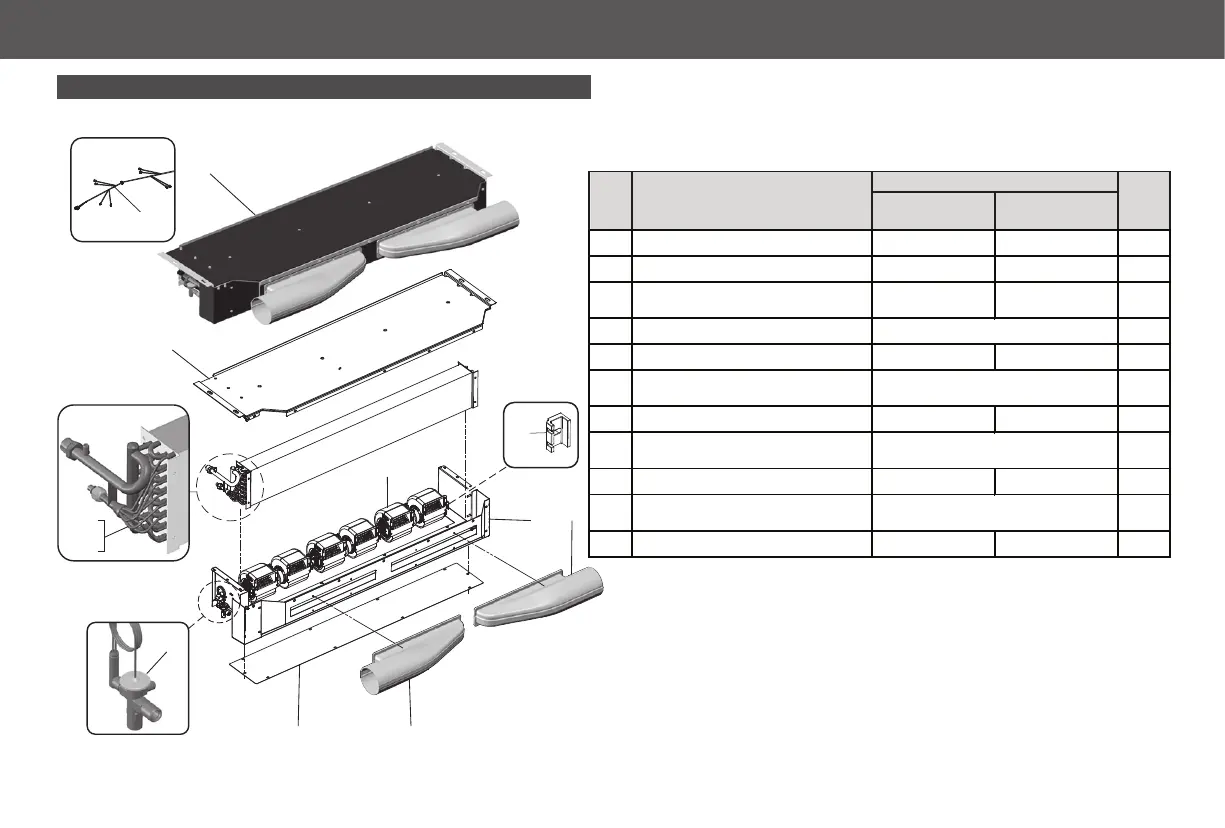

2.3- Components of Lower Evaporator Models B - DS
WITHOUT HEATING WITH HEATING
1 Lower Evaporator Model CC430 061-00107-006 061-00245-000 1
2 Lower Evaporator Capillary Tube Coil 006-00097-001 006-00175-000 1
3 Lower Heating Capillary Tube Coil - 006-00177-000 1
4 Expansion Valve 1
5 Evaporator Electric Wiring Harness 016-00188-004 016-00323-003 1
6 Radial Fan Clip 6
7 Radial Fan 24V 021-00014-000 3
8 Lower Evaporator Air Duct 2
9 Upper End Cover 040-00521-000 040-02154-000 1
10 Fan Maintenance Cover 1
11 Lower End Cover 043-00468-000 043-00607-000 1
QUANT.
012-00081-000
017-00309-000
034-00039-001
040-01629-000
ITEM DESCRIPTION
CODE
46
