DD 430
NOTE: visit www.reparts.com to consult the complete parts catalog.

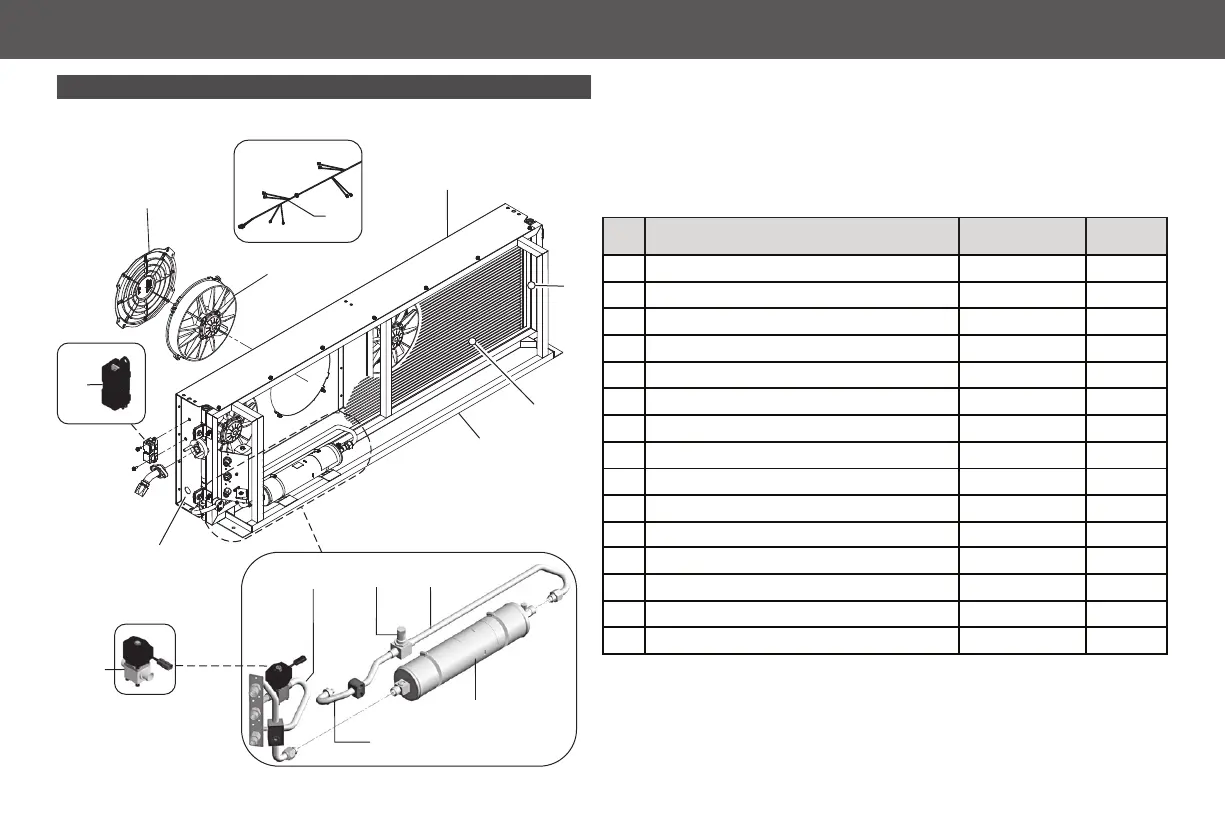

2.6- Components of Condenser
6
1
2
7
9
8
10
11
12
13
14
15
3
4
5
ITEM DESCRIPTION CODE QUANT.
1 Condenser Module 060-00188-000 1
2 Condenser Structure 046-00021-002 1
3 Condenser Left Hand End Cover 040-02503-001 1
4 Condenser Right Hand End Cover 040-02412-001 1
5 Condenser Capillary Tube Coil 006-00195-000 1
6 Axial Fan 021-00015-000 4
7 Liquid Tank and Dry Filter 038-00039-000 1
8 Liquid Tank Pipe Assembly 042-01162-000 1
9 Condenser Fan Grille 034-00111-000 4
10 Solenoid Valve 012-00102-002 1
11 Dry Filter Tube Assembly vs Liquid Line 042-01164-001 1
12 Service Valve 012-00117-000 1
13 Capillary Tube Coil vs Liquid Tank 031-00459-000 1
14 Charge Distribution (Derivation Switch) 015-00012-000 1
15 4-Fan Condenser Electric Wiring Harness 016-00149-002 1
