Valeo DD 430 User Manual

EQUIPMENT DESCRIPTION

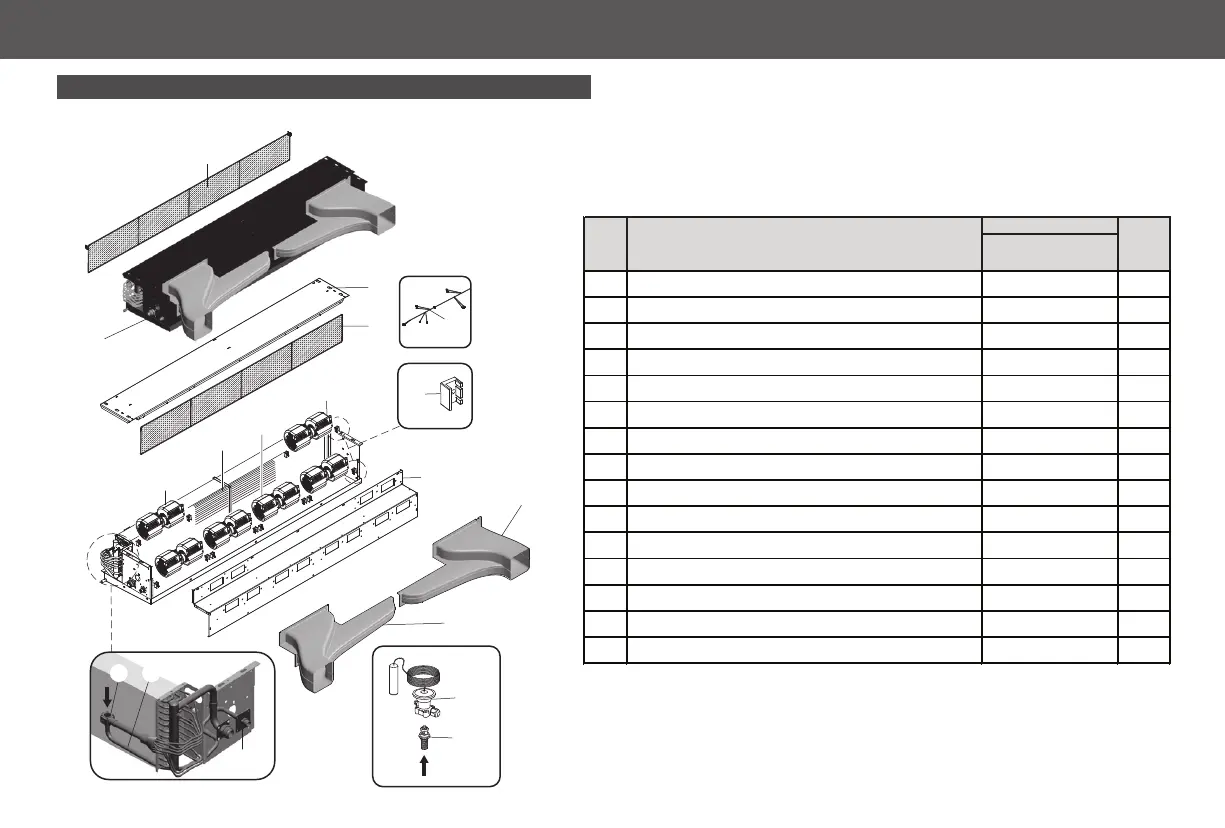

2.2- Components of Upper Evaporator Models B - C
NOTE: visit www.reparts.com to consult the complete parts catalog.
DD 430
11
1
11
10
13
2
8
8
8
7
9
9
3
4
5
12
15
14
6
CODE
WITHOUT HEATING
1 Upper Evaporator Module 061-00187-000 1
2 Upper Evaporator Capillary Tubes 006-00021-000 1
3 Expansion Valve 012-00032-000 1
4 Expansion Valve Hole 012-00033-000 1
5 Expansion Valve Body 012-00034-000 1
6 Evaporator Electric Wiring Harness 016-00148-002 1
7 Radial Fan Clip 017-00309-000 12
8 Radial Fan 24V 021-00014-000 6
9 Liquid Line Tube 031-00061-001 1
10 Right Hand Air Insufflator Duct 034-00252-000 1
11 Left Hand Air Insufflator Duct 034-00253-000 1
12 Front End Cover 040-00707-000 1
13 Upper End Cover 040-00709-000 1
14 Upper Evaporator Water Grille Assembly DD 041-00052-000 1
15
Upper Evaporator Air Filter Assembly DF 880 X 260
041-00162-000 1
QUANT.
ITEM DESCRIPTION
45
