Valeo TM08 - Page 9

-7-

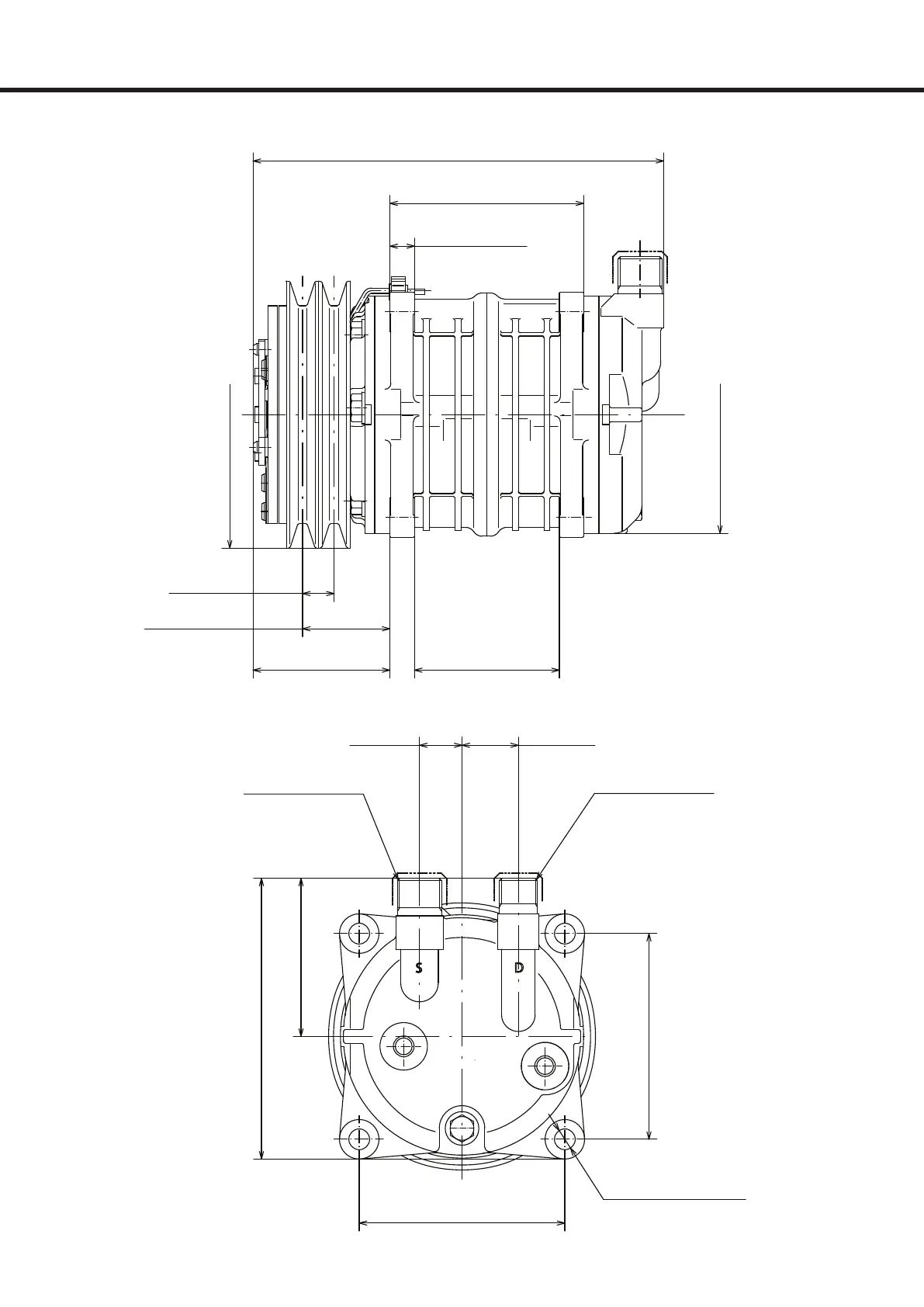

1-Product description - Dimensions TM13
135Ø
69.2
16
44.2
±0.6
73.3
±0.1
120Ø
12.4
±0.1
98
±0.1
208( )
7/8-14UNF
3/4-16UNF
DISCHARGE
SUCTION
21.5
28.5
80
142
104
±0.3
104
±0.3
10.3
+0.4
Ø8-
S
D
