Valeo TM31 - Replacement of Components

- 18 -
Current
Compressor
is kept
Compressor is
replaced
Specified
charge
Amount
recovered
Charging
amount
Amount
to remove
from new
compressor
500
350 or
more
Same as
recovered
500-(amount
recovered +
20)
Under
350
350 130
3- Handling instructions
unit: cm
3
& cc
unit: cu in
Current
Compressor
is kept
Compressor is
replaced
Specified
charge
Amount
recovered
Charging
amount
Amount
to remove
from new
compressor
30.5
21.4 or
more
Same as
recovered
30.5-(amount
recovered +
1.2)
Under
21.4
21.4 7.9
100cm
3
(6.1cu in)
60cm
3
(3.7cu in)
30cm
3
(1.8cu in)
6. Install the oil filler plug and tighten it to the
specified torque.
Specified torque: 14 ~ 16 N·m
{1.4 ~ 1.6 kgf·m, 10.3 ~ 11.8 lbf·ft}

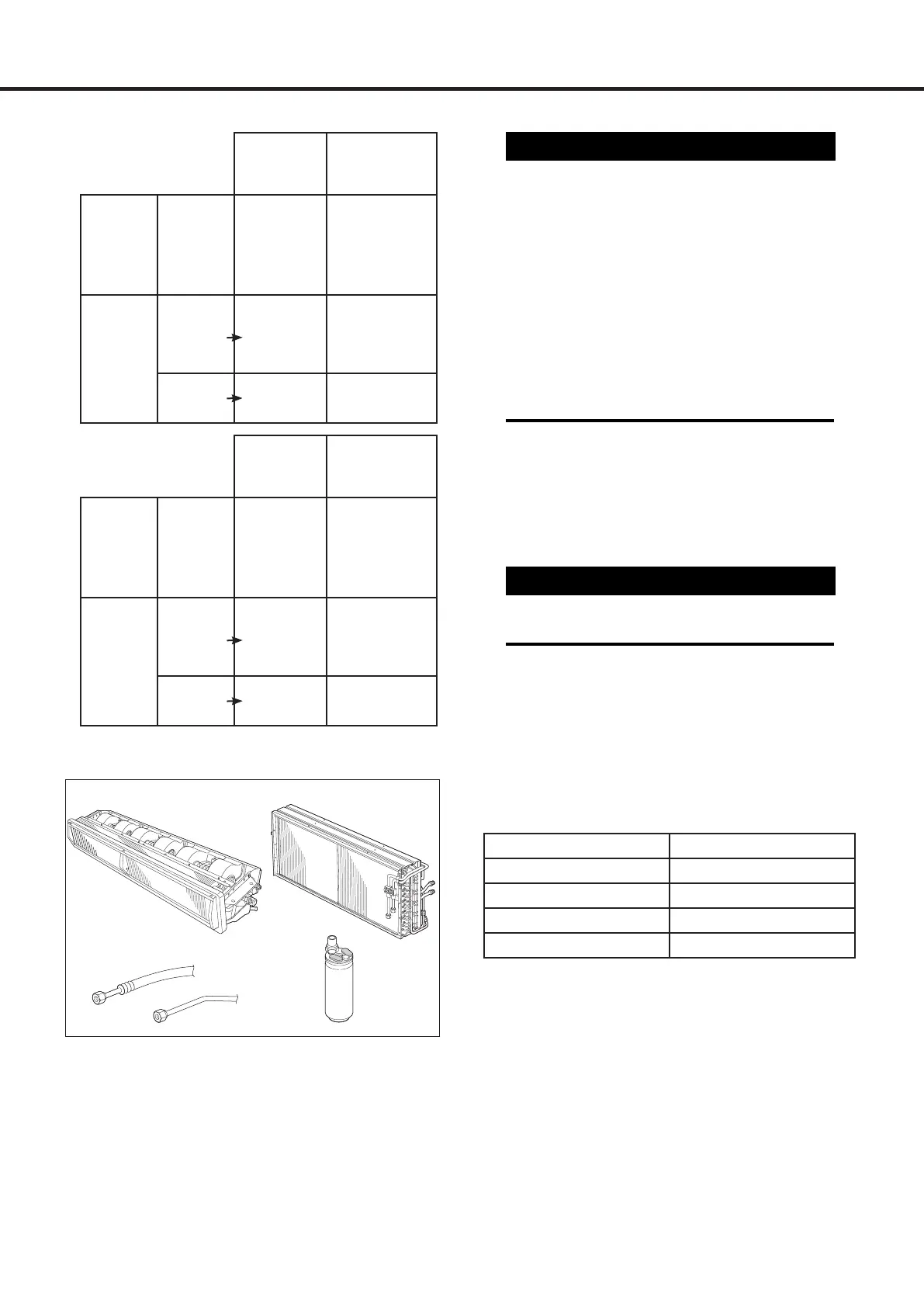

Replacement of components
When replacing the system’s component parts,
supply the following amount of oil to the
compressor.
Component mounted Amount of oil
Evaporator 100 cm
3
(6.1 cu in)
Condenser 60 cm
3
(3.7 cu in)
Receiver drier 30 cm
3
(1.8 cu in)
Pipe or hose 30 cm
3
(1.8 cu in)
After installing these component parts, check the
compressor oil. (See p.16).
CAUTION!
The specified oil quantity differs, depending
on the type of air conditioning system. A
label describing the specified quantity is
attached to the compressor. Additionally, all
of the oil cannot be removed when draining
the compressor, as some remains as an oil
film on the inside of the compressor and
the system components. Therefore, refer to
the table at the left when recharging the
compressor with oil. Excess oil adversely
affects the cooling capacity and the
compressor.
CAUTION!
The oil filler plug O-ring must be replaced
with a new one.
