Valeo TM31 - Tightening Torques

- 26 -

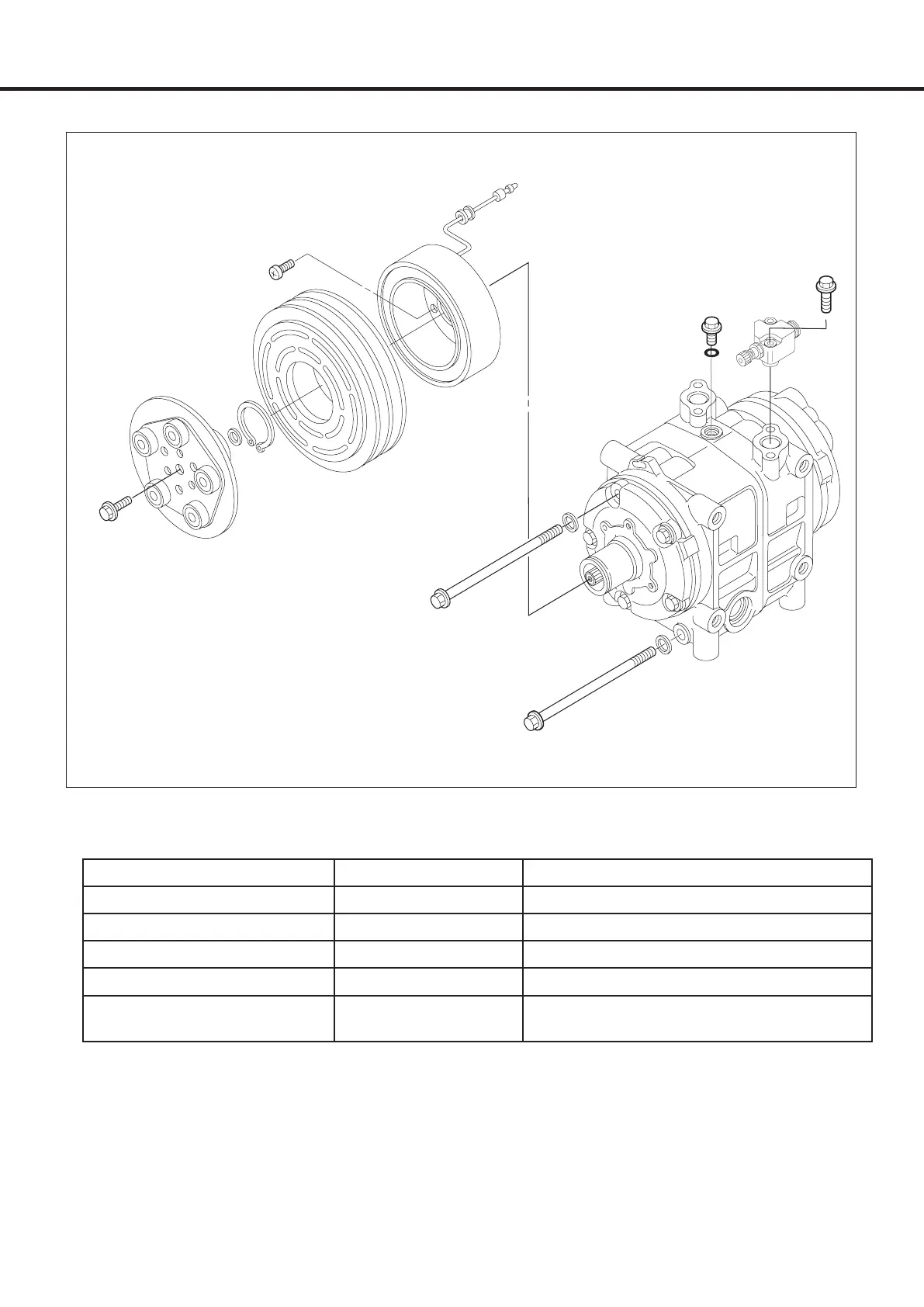

5- Tightening torques
Unit : N·m {kgf·m, lbf·ft.}
5
1
2
3
3
4
Part Thread size Tightening torque
1. Center bolt M8 x 1.25 20 - 22 {2.0 - 2.2, 14 - 16}
2. Field coil screws M6 x 1.0 4.2 - 7.2 {0.4 - 0.7, 3.1 - 5.3}
3. Bolt M10 x 1.5 25 - 30{2.5 - 3.0, 18 - 22}
4. Oil filler plug M10 x 1.5 14 - 16 {1.4 - 1.6, 10 - 12}
5. Connector bolt M8 x 1.25 20 - 24 {2.0 - 2.4, 14 - 17}
for connectors
