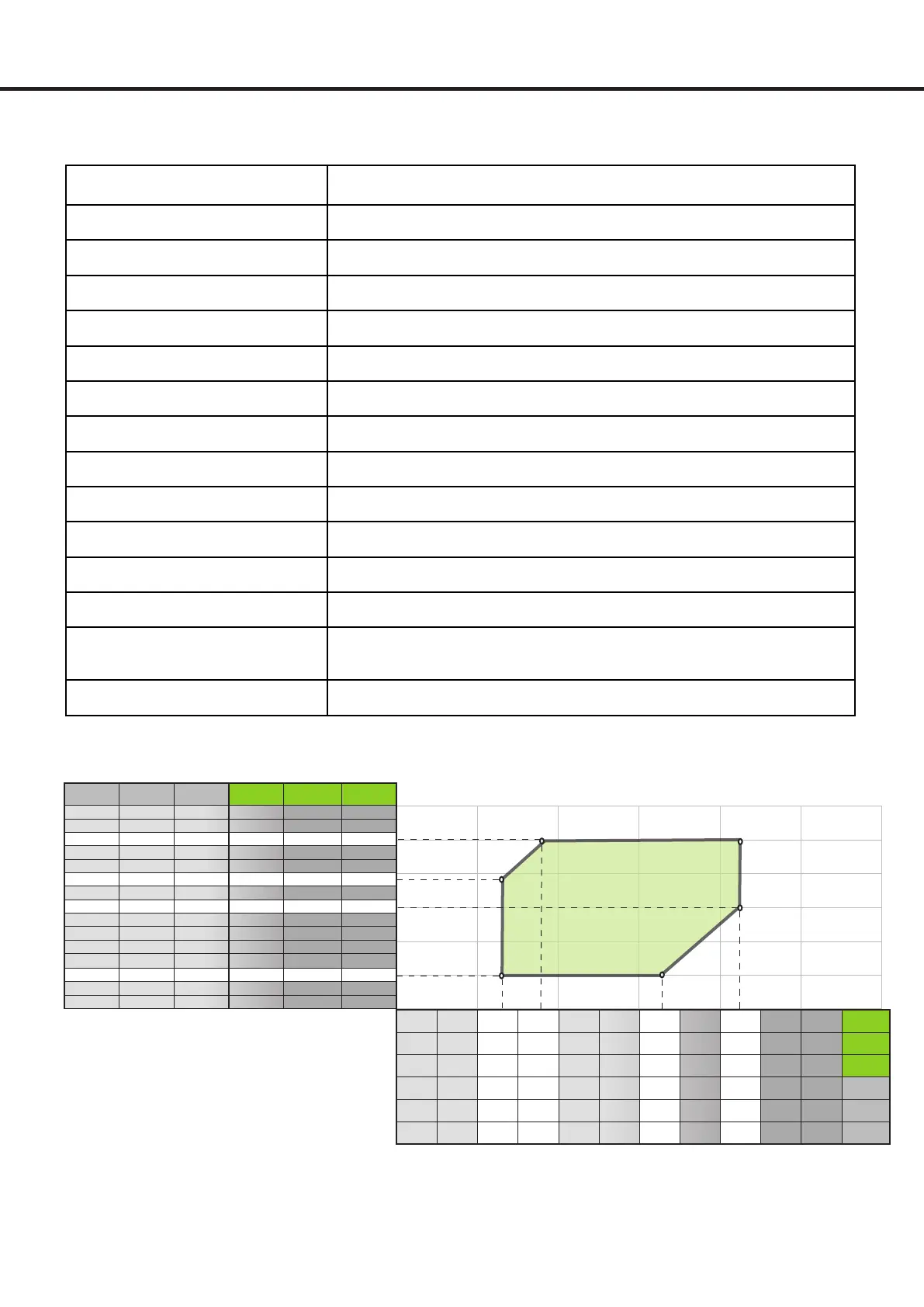

1-Product description
- Compressor
t
c
t
e
Compressor
MODEL
TM31
TECHNOLOGY Heavy Duty Swash Plate
DISPLACEMENT 313 cc (19.1 cu in) per rev.
NUMBER OF CYLINDERS 10
REVOLUTION RANGE 700-6,000 rpm (maximum peak : 7,000 rpm)
DIRECTION OF ROTATION Clockwise viewed from clutch
BORE 36 mm (1.42 in)
STROKE 30.7 mm (1.21 in)
SHAFT SEAL Lip seal type
LUBRICATION SYSTEM Lubrication by gear pump
REFRIGERANT HFC-134a
OIL (QUANTITY) ZXL 100 PG PAG OIL (DH-PS): 500 cc ( 30.5 cu in)
WEIGHT 9.5 kg (21 lb) (w/o Clutch w/o oil)
DIMENSIONS (with clutch)
Length - Width - Height
278.5 - 143 - 178 (mm)
10.94 - 5.63 - 7 (in)
MOUNTING Direct (side or base)
Valeo TM31 Application limits for HFC-134a
Saturated evaporating conditions
Saturated condensing conditions
PSIA PSIG
o
F MPaA MPaG
o
C
358 343 171 2.47 2.37 77
244 229 140 1.68 1.58 60
191 177 122 1.32 1.22 50
100 85 79 0.69 0.58 26
-17 -10 5 14
o
C
0.05 0.10 0.25 0.37 MPaG
0.15 0.20 0.35 047 MPaA
1 14 41 57
o
F
7 14 36 54 PSIG
22 29 51 69 PSIA
t
e
t
c
:
Condensing temperature
t
e
:
Evaporating gas temperature
