Valeo TM31 - Service Procedures: Shaft Seal Assembly

- 31 -

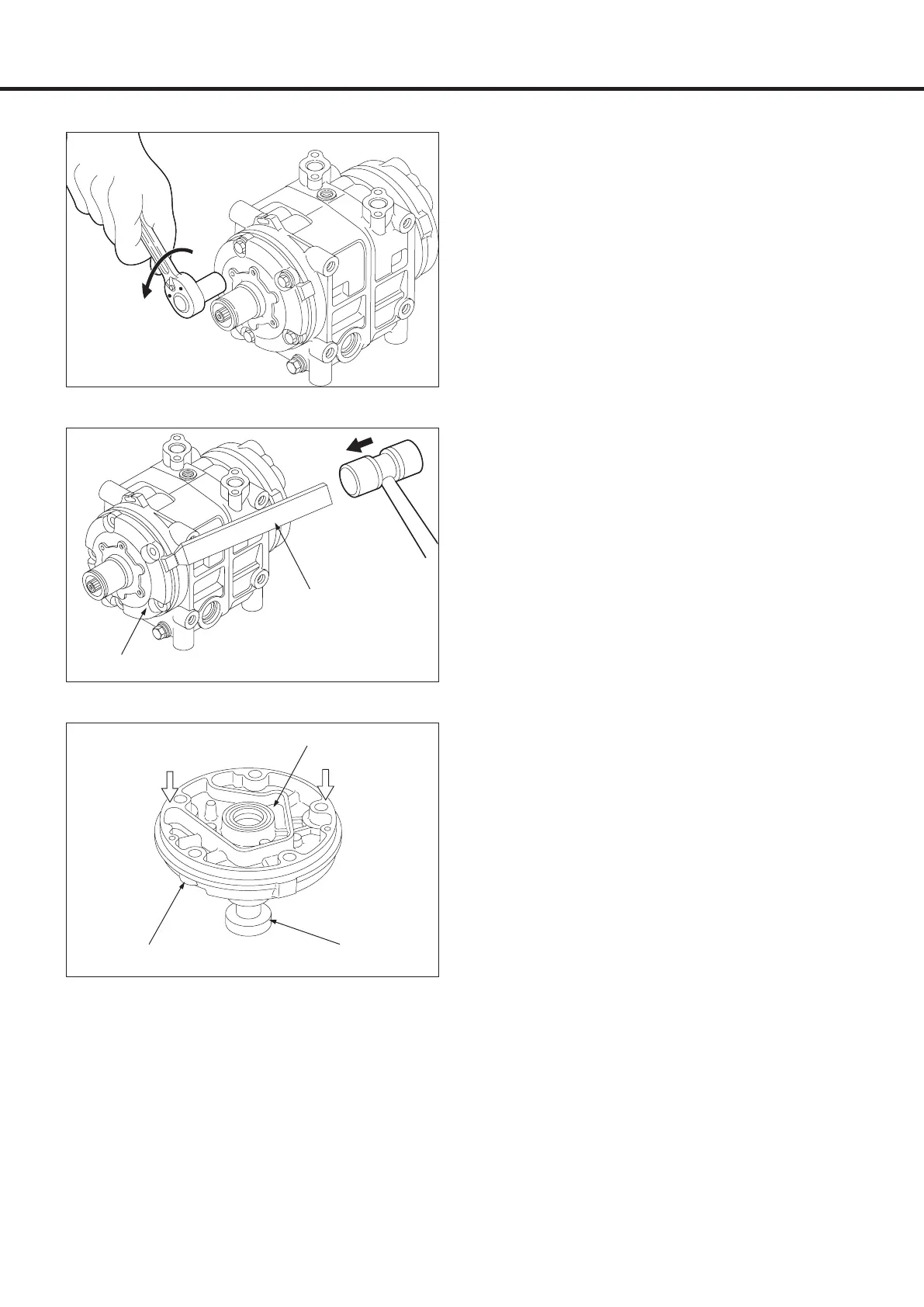

7- Service procedures - Shaft seal assembly
Front cylinder head
Remover
597035-0500
Tap lightly
Shaft seal assembly
Removal
1. Remove the magnetic clutch assembly as
described on page 27.
2. Remove the four bolts securing the
connectors, and then remove the connectors
and strainer from the cylinder shaft assembly.
3. Remove the oil filler plug and then drain the
oil.
4. Remove the five bolts securing the heads.
5. Alternately tap the two projections on the
front head using the remover (597035-
0500) and a mallet to remove the front
cylinder head.
6. Remove the shaft seal assembly using the
remover (597035-4700).
Remover
597035-4700
Shaft seal
Front cylinder head
Press uniformly from
above
