- 30 -

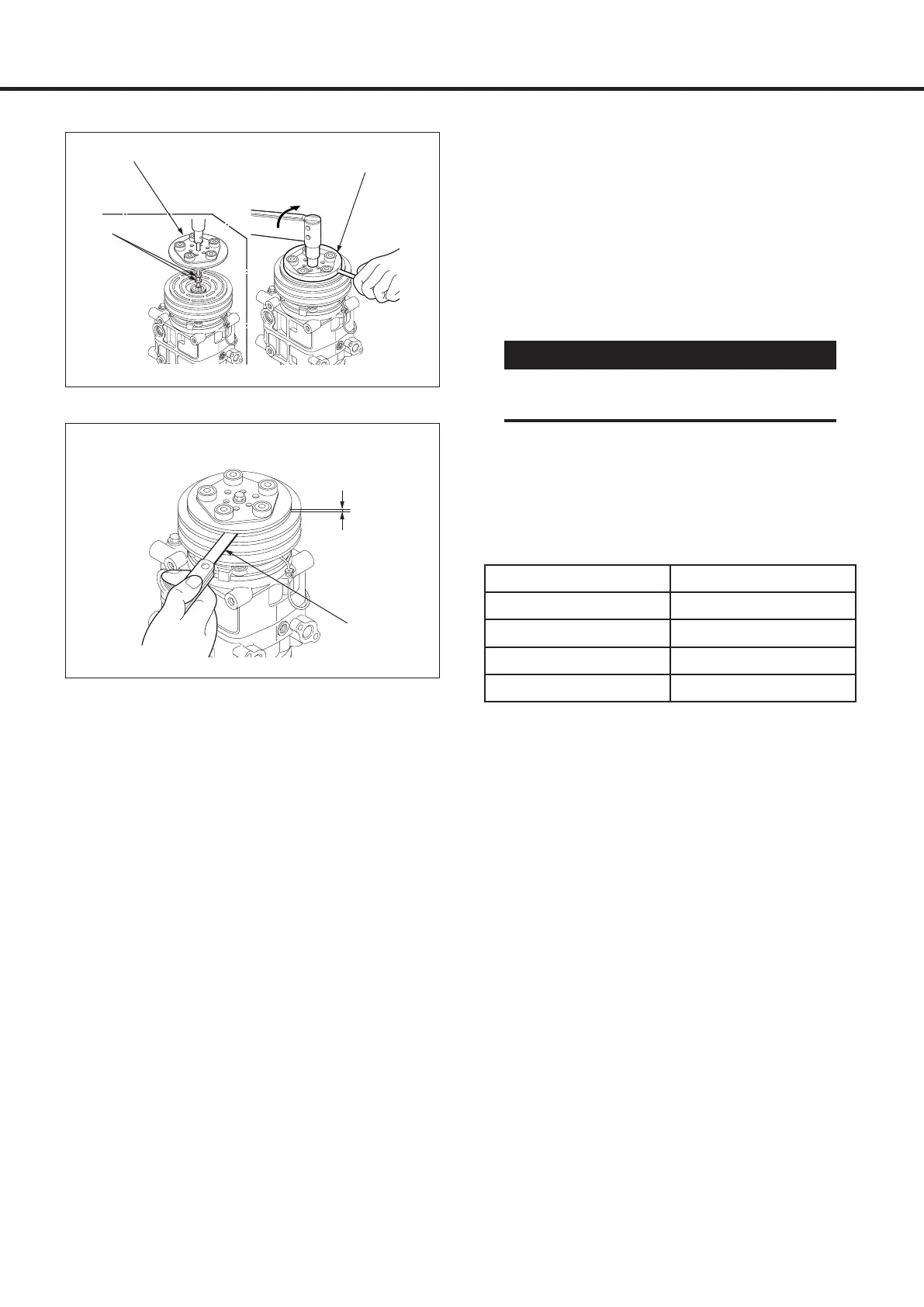

6- Service procedures - Magnetic clutch
Drive plate holder
597031-3000
Drive plate
Adjusting
shims
5. Install the armature assembly on the
driveshaft together with the original shim(s).
Press the armature assembly down by hand.
6. Install the center bolt and tighten to the
specified torque using the drive plate holder
(597031-3000) to prevent the armature
assembly from the rotating.
Specified torque: 20 ~ 22 N·m
{2.0 ~ 2.2 kgf·m, 14 ~ 16 lbf·ft}
7. Check that the clutch clearance is as
specified. If necessary adjust the clearance
using shim(s).
Adjusting shims are available in the following
thickness :
Shim Part No. Thickness
596541-2600 0.1 mm (0.004 in)
596541-2700 0.3 mm (0.012 in)
596541-2800 0.5 mm (0.020 in)
596541-2900 0.8 mm (0.031 in)
Specified clearance: 0.3 ~ 0.6 mm
{0.01 ~ 0.02 in}
8. Run-in the clutch as described on page 19.
Gap adjustment
0.3～0.6 mm
Thickness
gauge
After tightening the center bolt, check
that the pulley rotates smoothly.
CAUTION!
