- 29 -

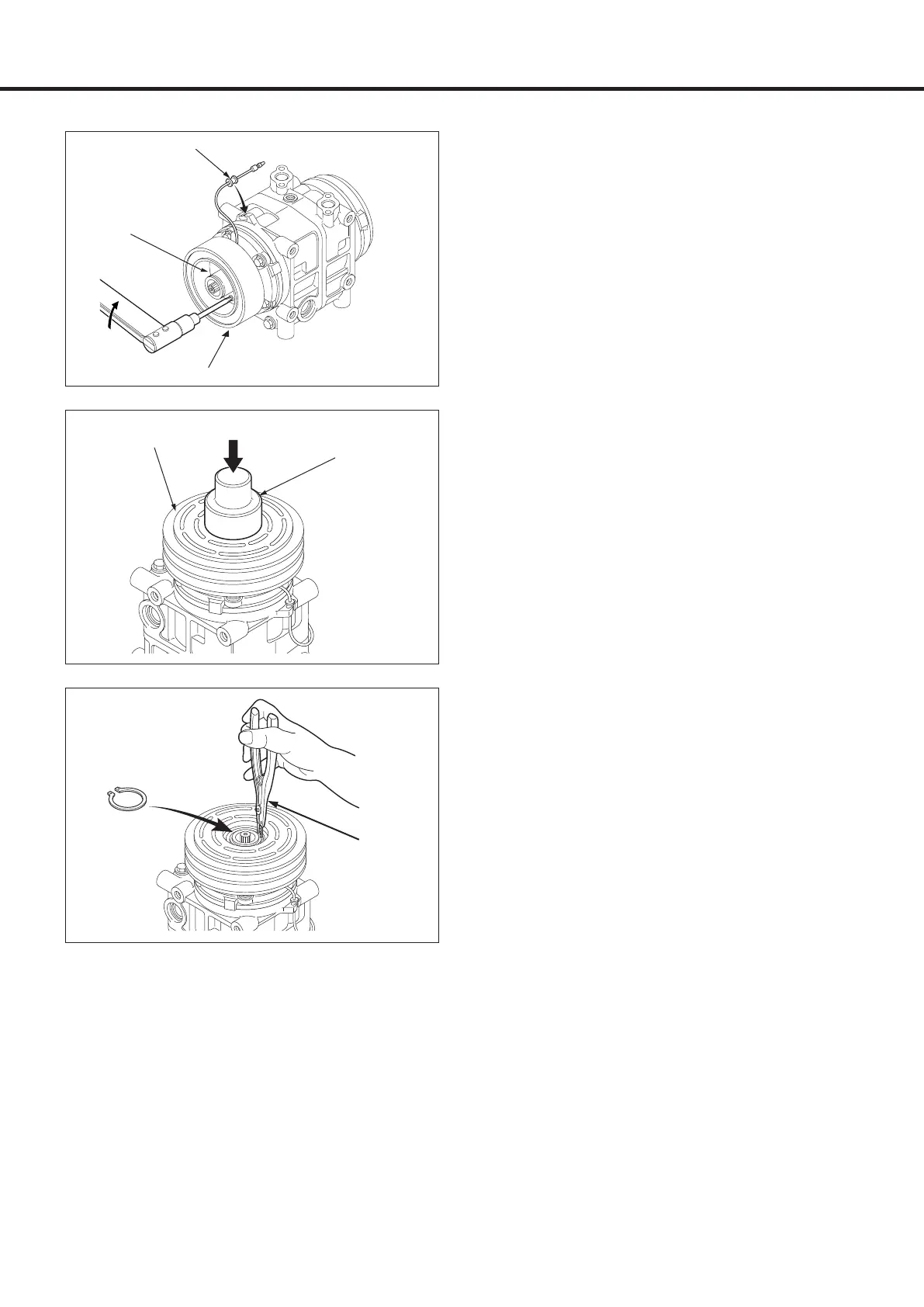

6- Service procedures - Magnetic clutch
Lead wire bushing
Screws
Field coil
Magnetic clutch
Installation
1. Install the field coil on the compressor
(with the harness on top) and tighten the
mounting screws to the specified torque.
Specified torque: 4.2 ~ 7.2 N·m
{0.4 ~ 0.7 kgf·m, 3.1 ~ 5.3 lbf·ft}
2. Carefully place the wire harness bushing.
3. Install the pulley assembly using the pulley
installer (597034-5700) and a hand press.
4. Install the snap ring (beveled edge up) using
external snap ring pliers.
Press
Pulley
assembly
Installer
597034-5700
External snap ring
pliers
Snap ring
