- 28 -
6- Service procedures - Magnetic clutch

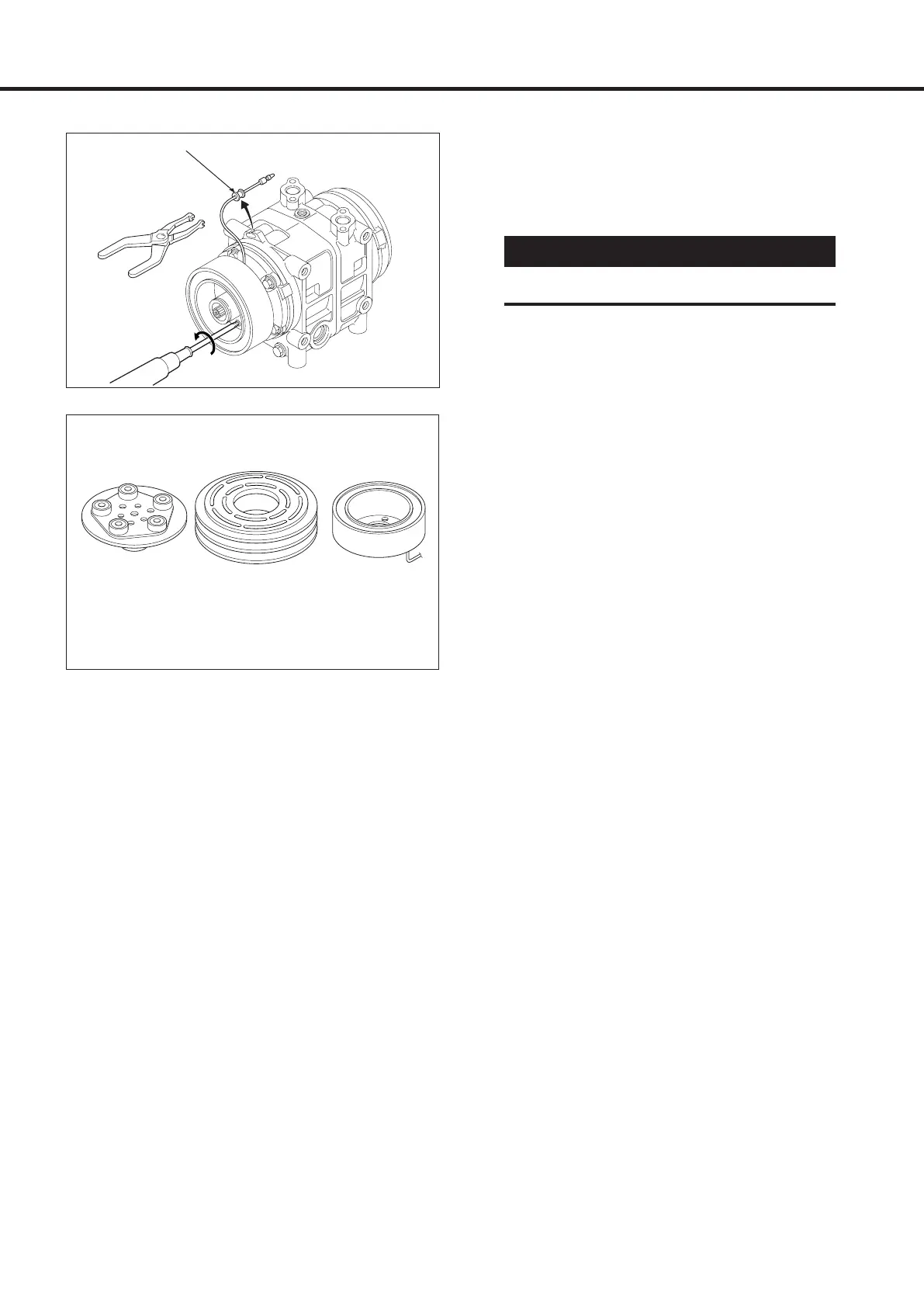

Lead wire bushing
Remover
597035-3820
5. Remove the lead wire bushing of the field
coil using the remover (597035-3820).
6. Remove the three field coil/compressor
screws. Then remove the field coil.
Inspection
1. If the contact surface has been damaged
by excessive heat, the armature and pulley
must be replaced.
2. Check the appearance of the pulley
assembly. If the contact surface of the pulley
is excessively grooved due to slippage,
both the pulley and the armature must be
replaced. The contact surface of the pulley
assembly must be cleaned with a suitable
solvent before reinstallation.
3. Check the field coil for a loose connector or
cracked insulation.
CAUTION!
Do not hold the field coil by the harness.
Pulley assembly Field coilArmature assembly
