8- Service procedures - Cylinder head

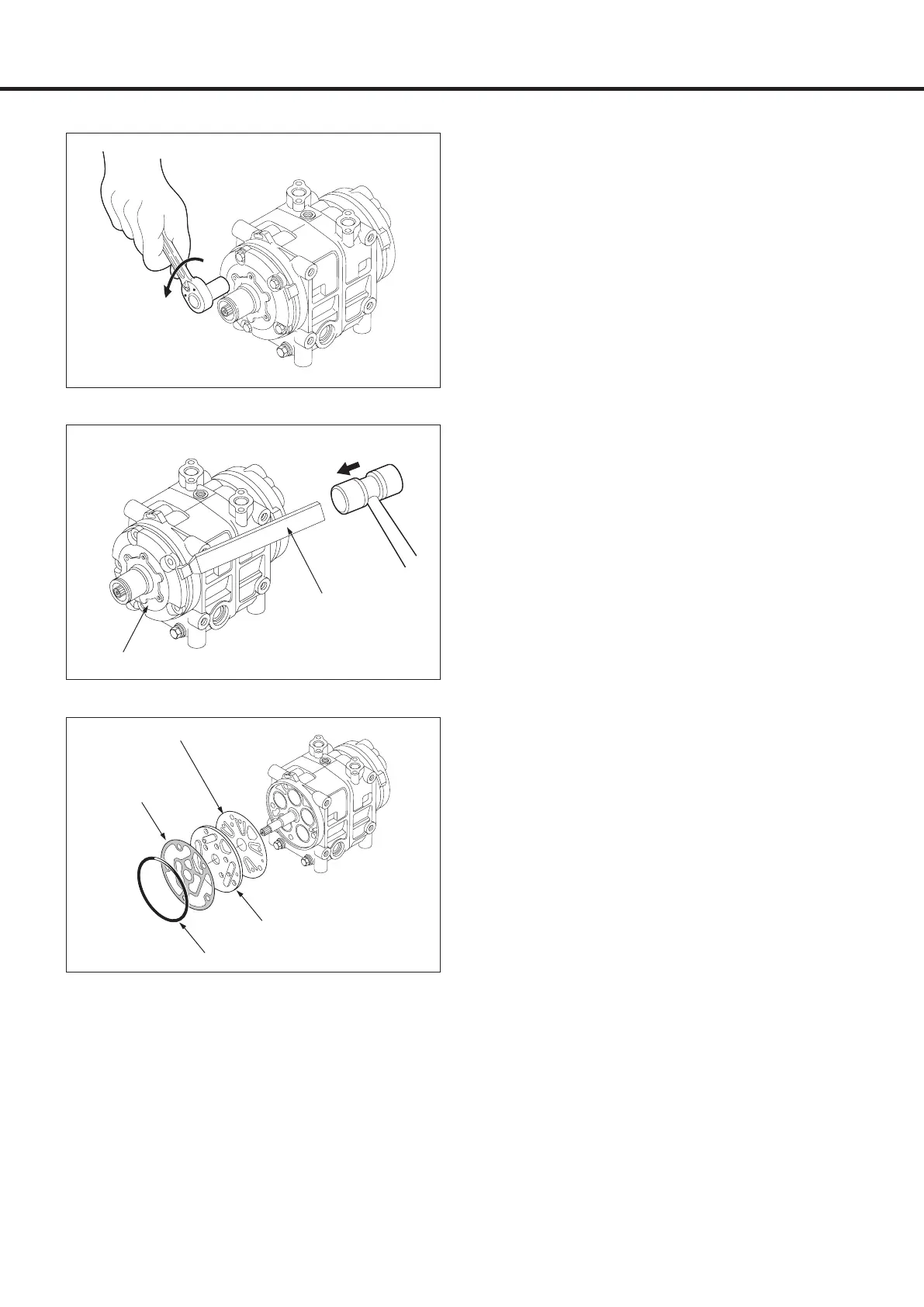

Front cylinder head
Remover
597035-0500
Tap lightly
O-ring
Gasket
Valve plate assembly
Suction valve
Cylinder heads (Front & Rear)
Disassembly
1. Remove the magnetic clutch assembly as
described on page 27.
2. Remove the four bolts securing the
connectors, and then remove the connectors
and strainer from the cylinder shaft assembly.
3. Remove the oil filler plug and then drain the
oil.
4. Remove the five bolts securing the heads.
5. Alternately tap the two projections on the
front head using the remover (597035-
0500) and a mallet to remove the front
cylinder head.
6. Remove the front valve plate assembly and
then the suction valve (in that order).
7. Remove and discard the O-ring from the
front cylinder head.
8. Remove all gasket material from the front
cylinder head and the front valve plate.
