11. Fill the compressor with the specified amount
of clean compressor oil through the oil filler.
12. Install the oil filler plug with a new O-ring,
and tighten it to the specified torque.
Specified torque: 14 ~ 16 N·m
{1.4 ~ 1.6 kgf·m, 10 ~ 12 lbf·ft}
13. Install the strainer in the suction port.
When the connectors are installed
14. Fit plates to the suction and discharge
connections, and tighten them to the
specified torque.
Specified torque: 20 ~ 24 N·m
{2.0 ~ 2.4 kgf·m, 14 ~ 17 lbf·ft}
15. Install the magnetic clutch as described on
page 29.
16. Run-in the compressor as described on page
19.
17. Perform the leak test as described on page
20.

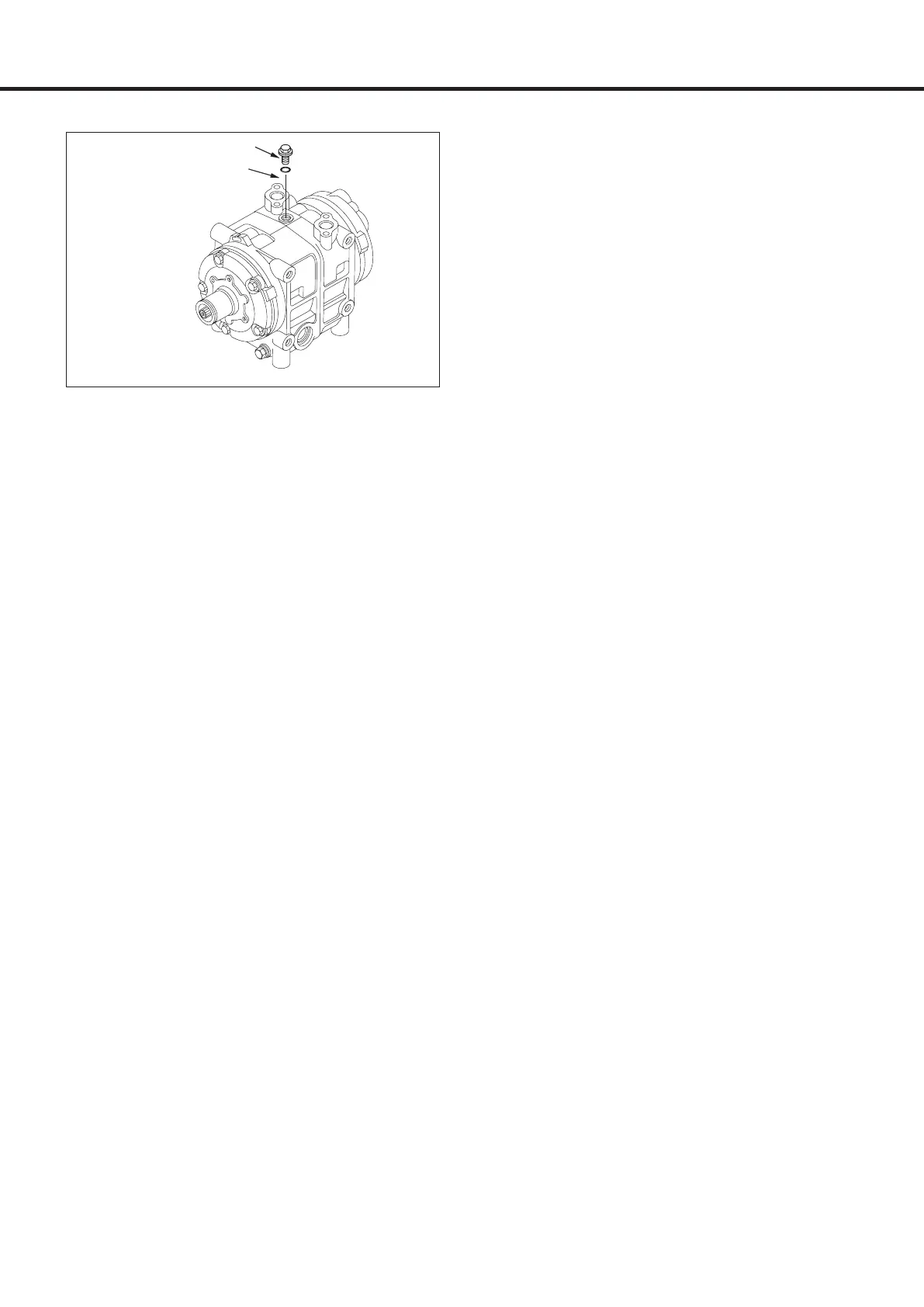

Oil filler plug
