- 27 -
6- Service procedures - Magnetic clutch
Drive plate holder
597031-3000
Snap ring
Pulley puller
Center pulley puller
597033-1700
Magnetic clutch

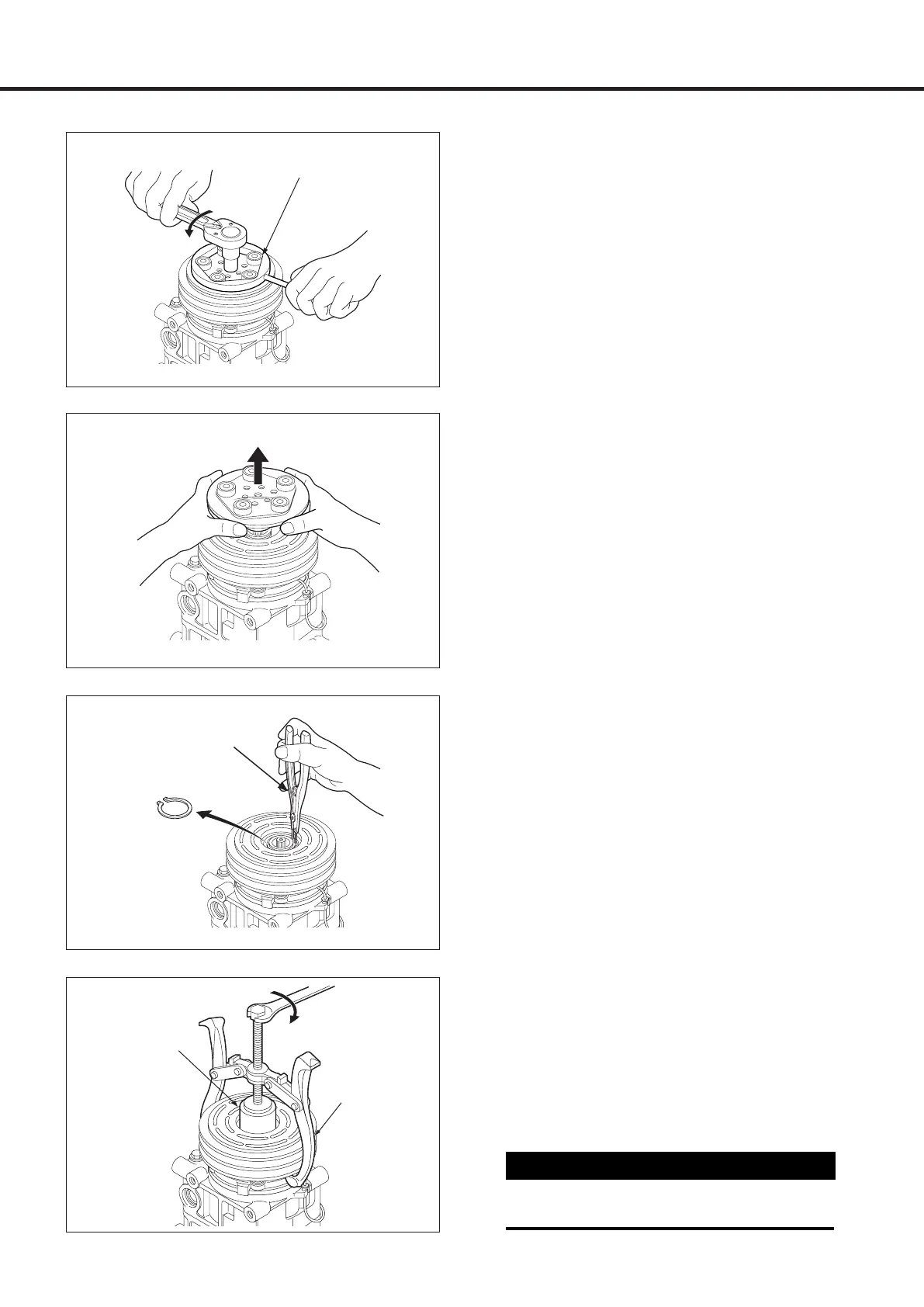

Removal
1. Remove the center bolt using the drive
plate holder (597031-3000) to prevent the
armature assembly from rotating.
2. Remove the armature assembly.
3. Remove the snap ring using external snap
ring pliers.
4. Position the center pulley puller (597033-
1700) at the end of the driveshaft.
5. Attach a suitable pulley puller to the pulley.
Hook the puller claws to the edge of the
pulley as shown.
6. Tighten the center pulley puller bolt to
remove the pulley.
CAUTION!
Do not clip the puller claws into the pulley
groove to prevent pulley groove damage.
External snap
ring pliers
