TECHNICAL SPECIFICATIONS
1
2
3
19
16
13
12
11
10
20
21
9
8
7
6
5
4
1
2
18
14
22
23
15
17
16
25
26
27
28

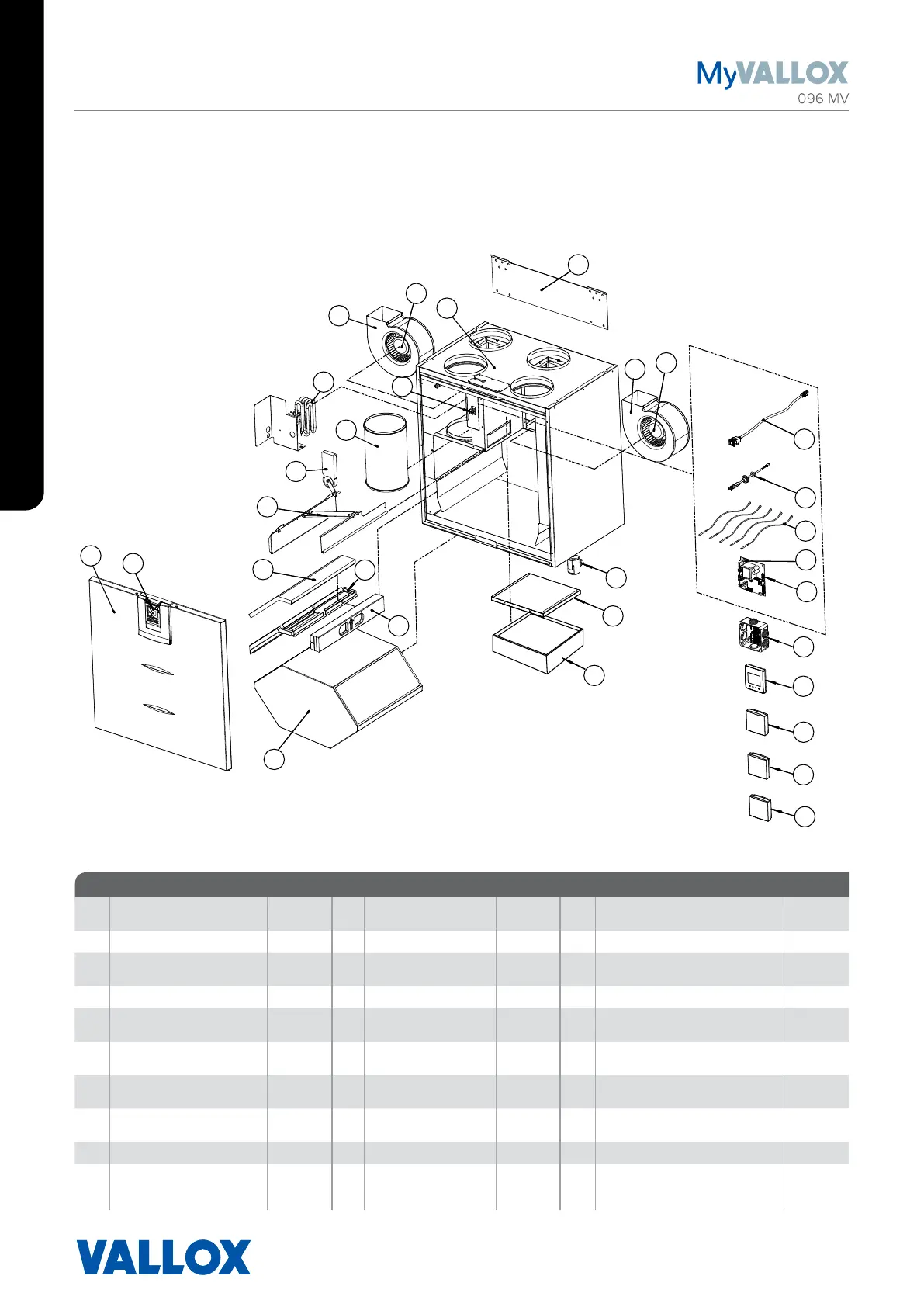

EXPLODED VIEW AND PARTS LIST
Vallox 096 MV
NO. PART CODE NO. PART CODE NO. PART CODE
1.
Supply / extract air fan
(with a hood)
1108800 11.
HR cell bypass
damper assembly
19.
Post-heating resistor 900W
(R and L models)
942210
2. Fan 935365 R model 3491200 20. Door 3475200
3.
Wall mounting plate
(optional)
3080700 L model 3491201 21. Door latch 3355900
4. Siphon Vallox Silent Klick 3494701 12. Damper motor 930620 22. NTC sensor kit 3480500
5. Coarse filter for supply air 978044 13. Extract air outlet 985026 23.
Glass tube fuse 63mA slow
5x20mm
952490
6. Fine filter for supply air 978220 14.
Internal humidity and
carbon dioxide sensor
4107982 24.
MyVallox Control panel
MyVallox Touch control panel
949033
949090
7.
HR cell (aluminium)
HR cell (enthalpy)
933260
933153
15. Motherboard 949032-1 25.
MyVallox humidity sensor
(optional)
946149
8. Upper support for HR cell 3467200 16. Safety switch 948377 26.
MyVallox carbon dioxide sensor
(optional)
949111
9. Filter stand 3464500 17. Connection box 3526700 27. MyVallox VOC sensor (optional) 949112
10. Coarse filter for extract air 978045 18. RJ45 extension cable 952196 28.
Ceiling bushing for electric wires
Ceiling feed-through seal
950445
950446
