Vallox A3712-1 Manual

30

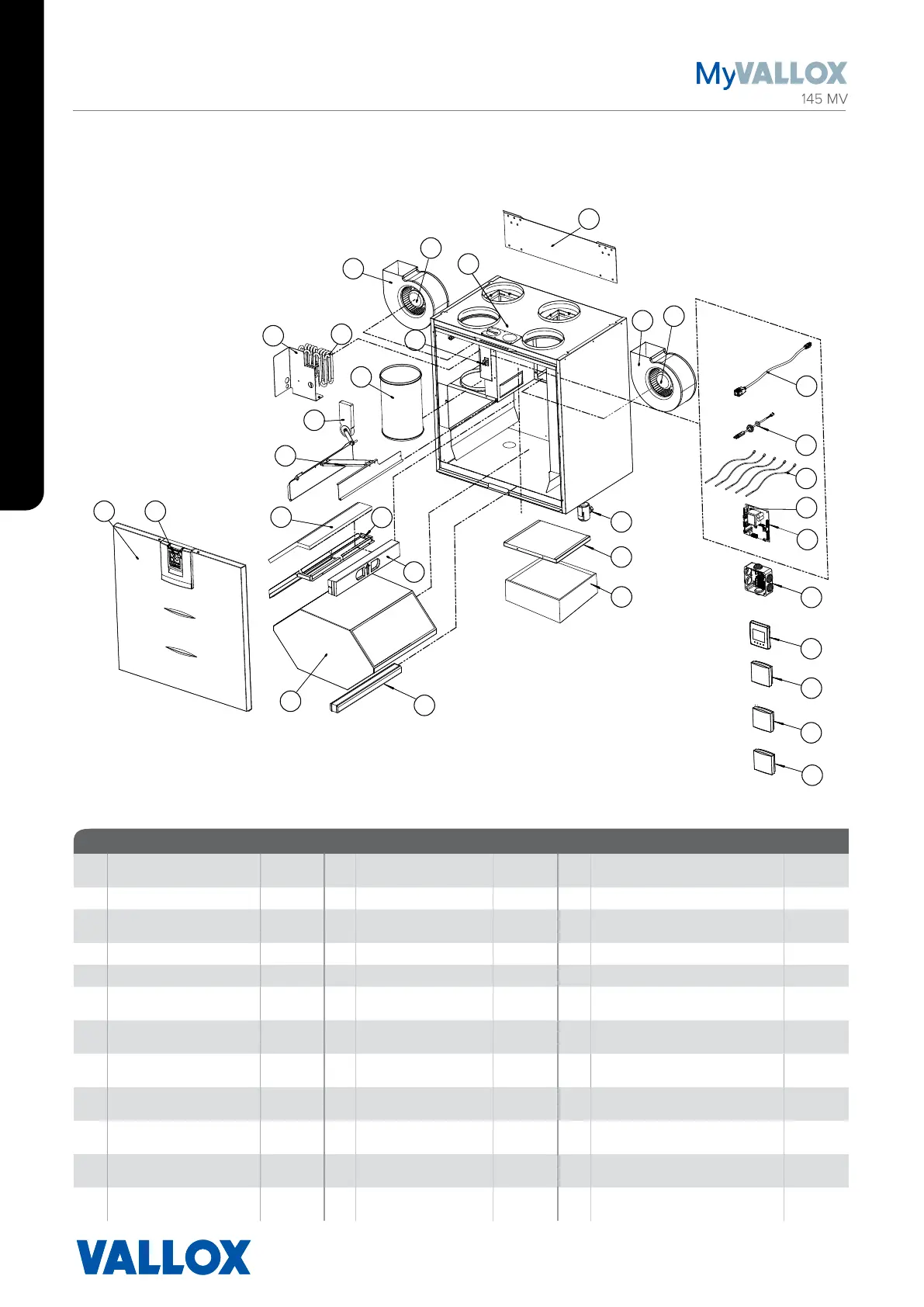

Vallox 145 MV
NO. PART CODE NO. PART CODE NO. PART CODE
1.
Supply / extract air fan
(with a hood)
1109200 12.
HR cell bypass
damper assembly
21. Post-heating resistor 900W
2. Fan 935530 R model 3475900 R model 942211
3.
Wall mounting plate
(optional)
3482100 L model 3475901 L model 942210
4. Siphon Vallox Silent Klick 3494701 13. Damper motor 930620 22. Door 3476000
5.
Coarse filter for supply air 978046 14. Extract air outlet 985035 23. Door latch 3355900
6. Fine filter for supply air 978158 15.
Internal humidity and
carbon dioxide sensor
4107982 24. NTC sensor kit 3482300
7. Lower support for HR cell 3469000 16. Motherboard 949032-1 25.
Glass tube fuse 63mA slow
5x20mm
952490
8.
HR cell (aluminium)
HR cell (enthalpy)
933270
933154
17. Safety switch 948377 26.
MyVallox Control panel
MyVallox Touch control panel
949033
949090
9. Upper support for HR cell 3468900 18. Connection box 3526700 27.
MyVallox humidity sensor
(optional)
946149
10. Filter stand 3466500 19. RJ45 extension cable 952196 28.
MyVallox carbon dioxide sensor
(optional)
949111
11.
Coarse filter for extract
air
978047 20.
Additional heating
resistor 1500W
942220 29. MyVallox VOC sensor (optional) 949112
30.
Ceiling bushing for electric wires
Ceiling feed-through seal
950445
950446
1
2
3
1
2
19
15
24
25
16
18
26
27
28
6
4
5
21
20
14
13
12
11
22
23
10
9
8
7
17
29
30
