INSTALLATION GUIDE – 203 DISPLAY
www.valortpms.com
5

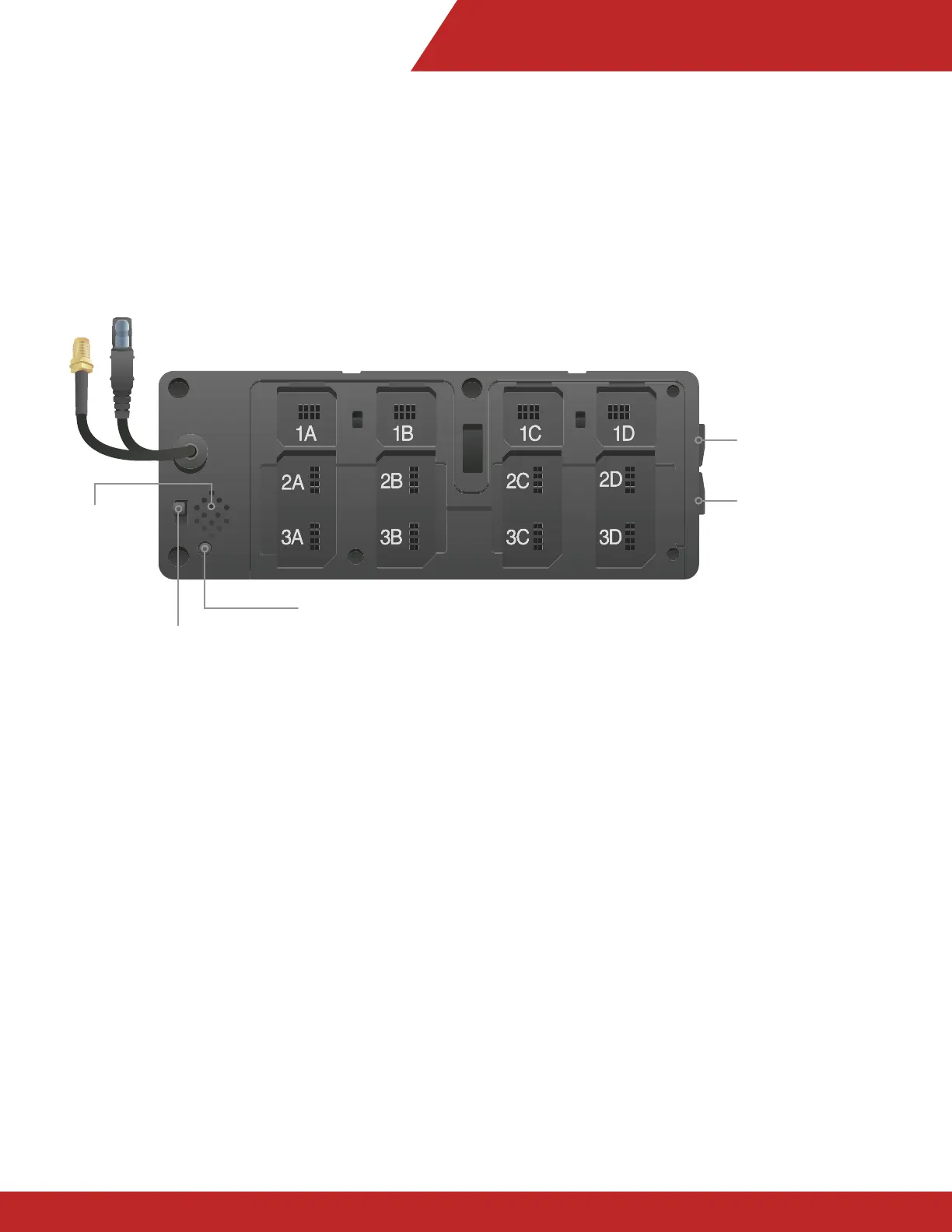

1.3 Installing ID Modules
Prior to installing wireless sensor on the rim, remove ID Module (taped to sensor) and insert into back of the
display (see below).
Suggested Tire/ID Module positioning:
Tractor (10-Wheel)
1A Left Steer
1D Right Steer
2A Left Front Outside Drive
PART 1 : System Installation
BUZZER
ON/OFF
SWITCH
SET KEY
AXLE
TOGGLE
PRESSURE AND
TEMPERATURE
TOGGLE
2B Left Front Inside Drive
2C Right Front Inside Drive
2D Right Front Outside Drive
3A Left Rear Outside Drive
3B Left Rear Inside Drive
3C Right Rear Inside Drive
3D Right Rear Outside Drive
