INSTALLATION GUIDE – 203 DISPLAY
www.valortpms.com
7
1.5 Installing Antennas
1. Locate a place between the rear drive wheels. Attach the 8m antenna pointing downwards. Be sure not to
locate near a heat source or where a moving part will be in contact with the antenna.
2. Run the cable along the left (driver) side of the vehicle to the front under the driver seat. Using wire ties,
attach the cable to vehicle wiring harness (normally runs along the frame). If extra cable, loop up and wire
tie out of the way making sure it does not interfere with any other item on the truck.
3. DO NOT OVER-TIGHTEN THE CABLES TO THE SPLITTER. HAND-TIGHTEN ONLY.
4. From the cab, run the 3m extension cable from the Integrated Display down either through the firewall or
along the side post and through the floor board ending up under the driver seat.
5. Connect the female end of the Splitter to the 3m extension cable.
6. Locate a place between the steer wheels and attach the 3m cable antenna pointing downwards. Be sure
not to locate near a heat source or where a moving part will be in contact with the antenna.
7. Run the antenna cable along the left (driver) side of the vehicle and connect to one of the male ends of the
Splitter.
8. DO NOT OVER-TIGHTEN THE CABLES TO THE SPLITTER. HAND-TIGHTEN ONLY.
Wrap with electrical tape.

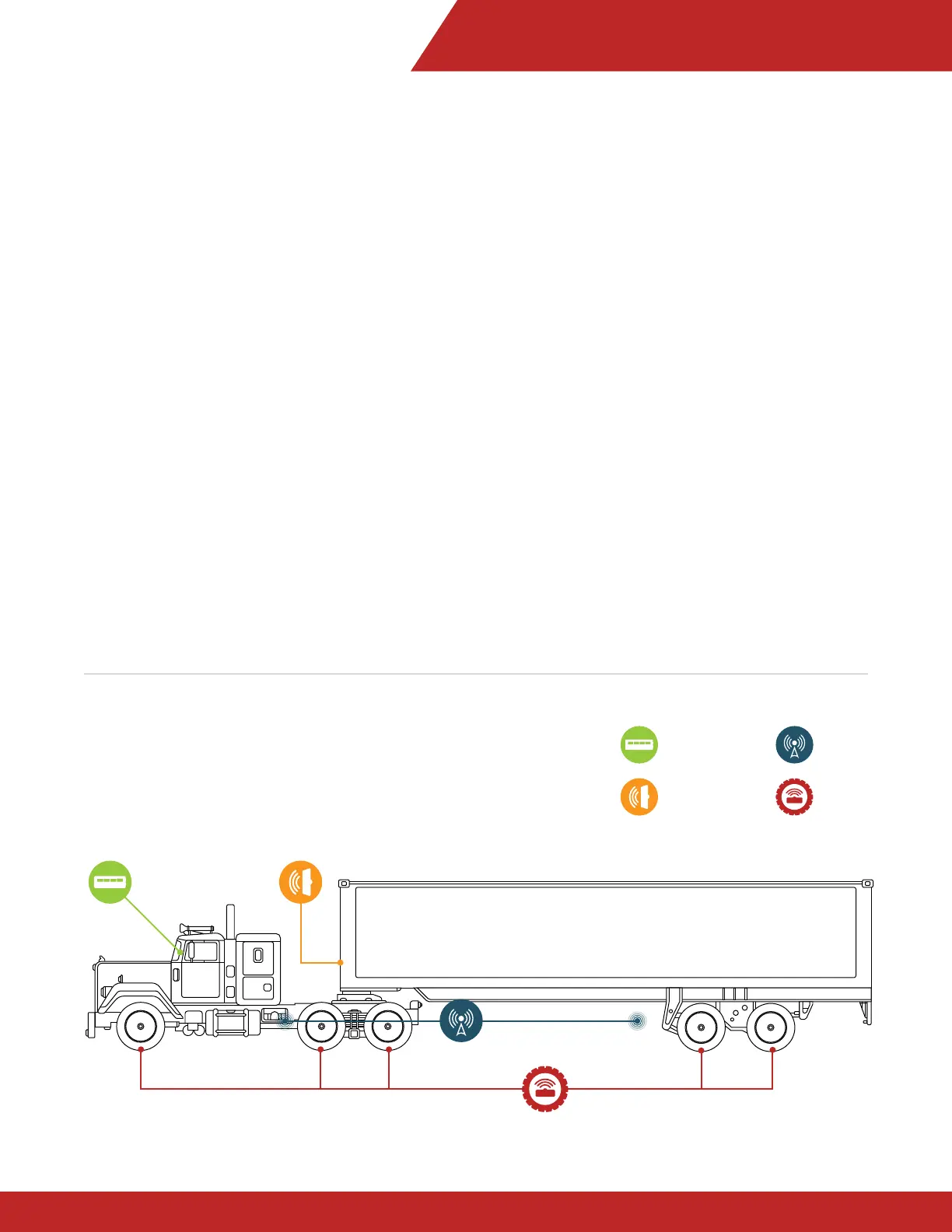

1.6 Trailer Installation
PART 1 : System Installation
Antenna
Sensor
Display
Transceiver
To Next Page
