Valor 546LFB ZC Portrait Ledgeview Front User Manual

3

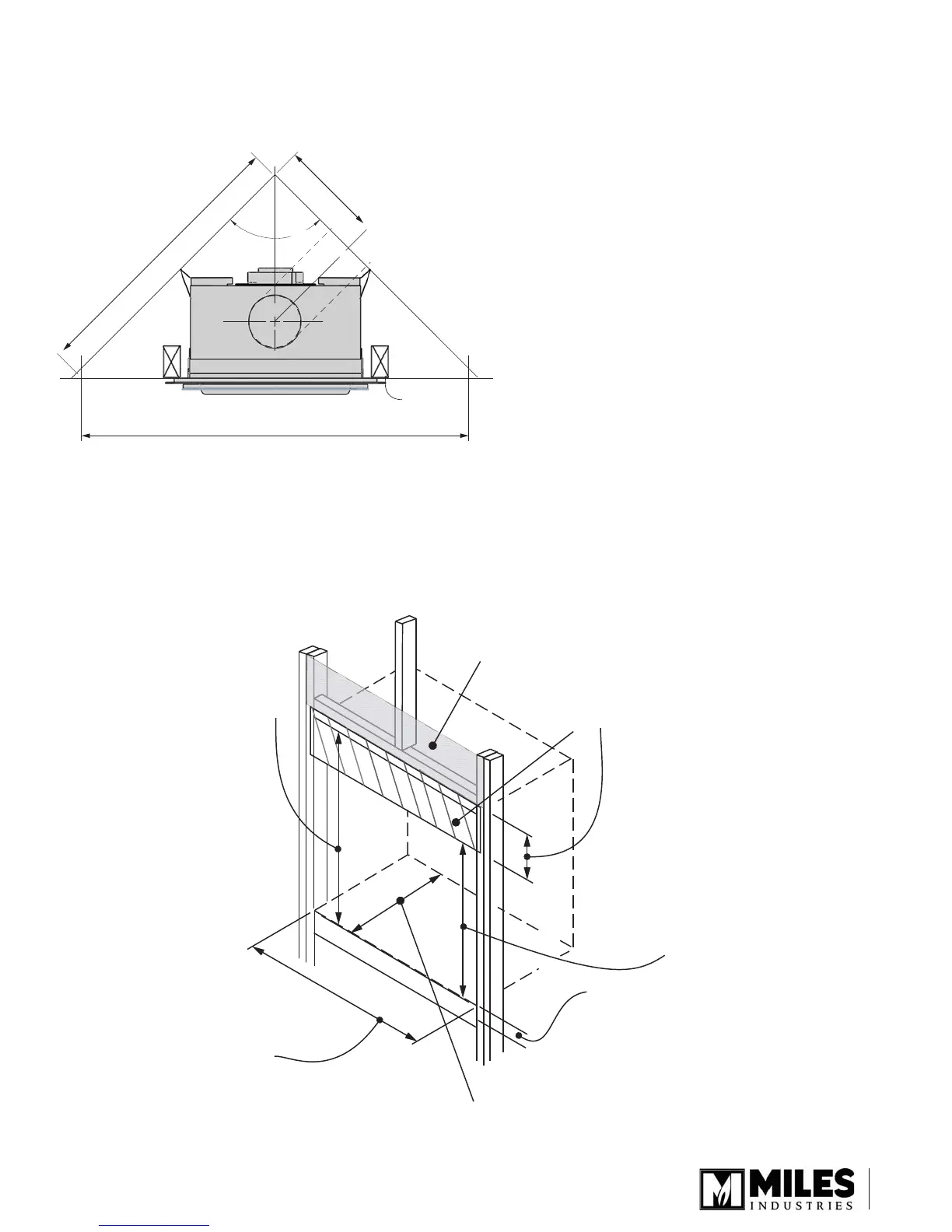

Corner dimensions
48” (1219 mm)
Face of
wall studs
34” (864 mm)
12”
(305 mm)
90°
Framing
22-1/2”
(572 mm)
32” (813 mm)
to header
26-7/8” (684 mm)
to cement board
6-1/8” (154 mm)
cement board
supplied
Wall Finish
This is the framing
width. Drywall to
24” (610 mm) wide
(to edge of stud brackets)
Note -
Finished surface of floor
or hearth/shelf, if used,
must be min. 1-1/2”
lower than bottom of
appliance otherwise the
front trim will not fit
Note -
There is a 1” (25 mm)
gap between bottom
of cement board and
top of backing frame
assembly
Minimum 12-3/4” (324 mm)
(Allow extra if using rear vent elbow)

Valor 546LFB ZC Portrait Ledgeview Front Specifications

General

Brand	Valor
Model	546LFB ZC Portrait Ledgeview Front
Category	Fireplace Accessories
Language	English
