Adjustability of the Clearview Front ZC
• Method 1. The appliance’s position within the
framing cavity may be adjusted forward in the
framing up to 1” to accomodate additional wall fi nish
thickness “tucked” behind the backing plate.
• Method 2. The Backing Plate is also adjustable to
accomodate up to an additional 3/4” of tile or other
non-combustible material over top of the 1/2” non-
combustible wall board.
• Method 1 and Method 2 may be combined for a total
of 1-3/4” of non-combustible material over top of the
1/2” wall board.
Attention! When positioning the appliance forward
of the framing cavity (Method 1), ensure that the front
edge of the backing frame does not protrude beyond
the planned fi nished wall surface. Otherwise the
backing plate, when installed, will not sit against the
fi nished wall.
Measured from face of stud
bracket to front edge of backing
plate frame assembly

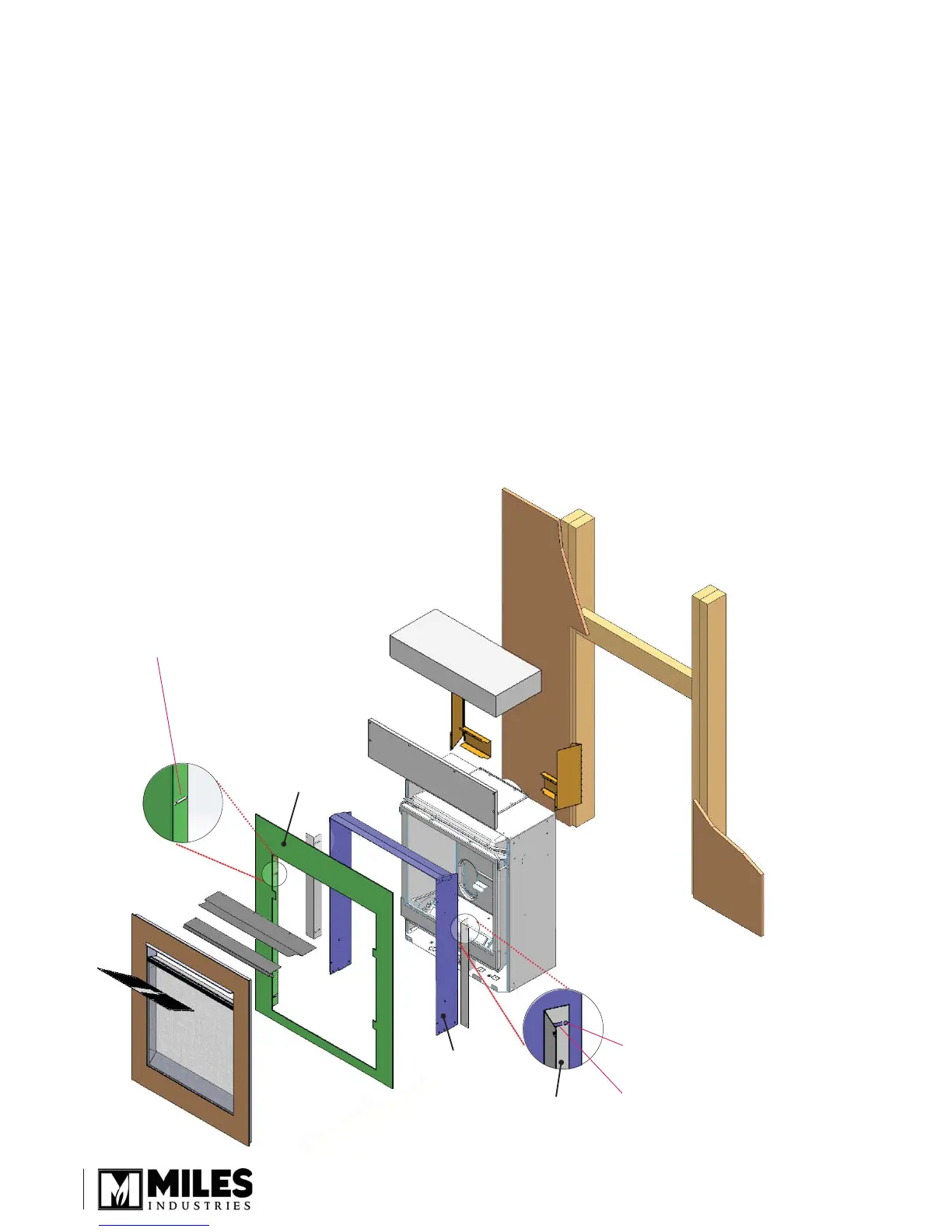

Method 1 - Appliance Positioning
Method 2 - Backing Plate Positioning
Wall nish thickness: 1/2”
- use hole
Backing Plate is adjustable up to 3/4”.
Wall nish thickness: 1/2” to 1-1/2”
- use slot
Backing frame
assembly
Backing Plate
Stud bracket
