9” (229 mm)
A
B
Non-combustible hearth
With optional
Fan: depth
+3” (76 mm)
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance
Sidewall Clearances
Minimum distance from side of appliance (liner box) to
combustible wall: 9” (229 mm).
Mantel legs projecting forward less than 6” (152 mm)
may be located within 5” (127 mm) of the side of the
appliance (liner box).
Floor/Hearth Clearances
Combustible shims/supports may be used beneath
the appliance to level or raise the appliance within the
existing fi replace cavity.
Combustible fl ooring/hearths in front of the appliance
must be at a minimum of 4” (102 mm) below the bottom
of the appliance. The gas insert does not require a
hearth.
Mantel Pro-
jection A
1”
(25 mm)
4”
(101 mm)
8”
(203 mm)
14”
(355 mm)
Mantel
Height B*
34”
(864 mm)
36”
(914 mm)
38”
(965 mm)
40”
(1016 mm)
sidewall
WARNING
Some materials or items, although safe, may discolor, shrink, warp, crack, peel,
and so on because of the heat produced by the fi replace. Avoid placing candles,
paintings, photos, and other items sensitive to heat around the fi replace.

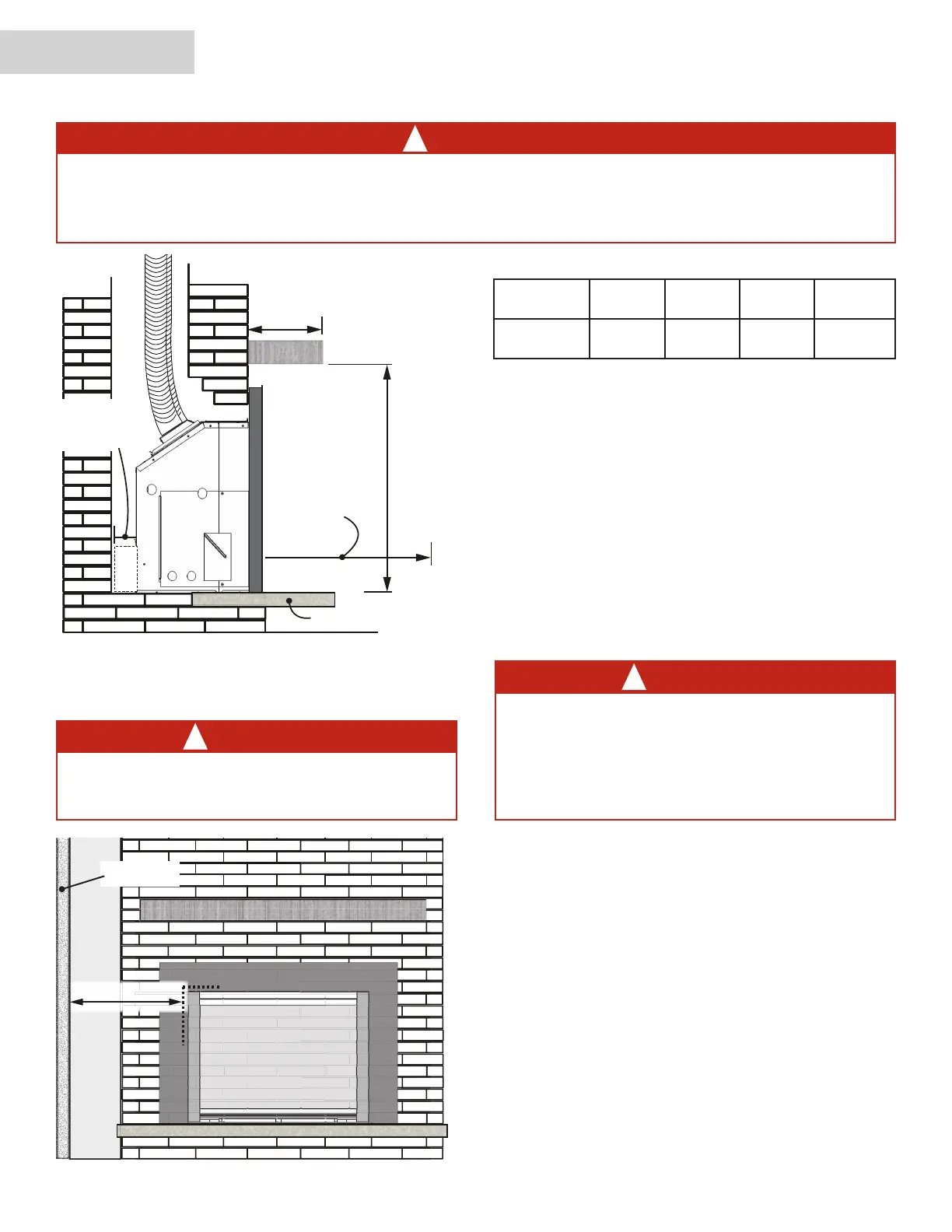

Combustible Mantel Clearances
*Measure taken from the underside of the mantel to fi nished
hearth or surface that the unit is sitting on.
Finishing Materials
Combustible materials: Materials made of or surfaced
with wood, compressed paper, plant fi bers, plastics, or
other material that can ignite and burn, whether fl ame
proofed or not, or plastered or unplastered.
Non-combustible materials: Material which will not
ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C
WARNING
HOT GLASS! The use of a screen in front of
the glass is highly recommended particularly in
households with children.
WARNING
HOT HEARTH / FLOOR! The hearth or fl oor in
front of the fi replace may become very hot when
the fi replace heats. Do not use the hearth as a seat
or shelf. Solid wood fl ooring in front of the fi replace
(if allowed) may shrink during the heating season
due to heat.
WARNING
!
WARNING
!
WARNING
!
QUALIFIED
INSTALLER
22
Clearances

Valor G4 Series Specifications

General

Venting	Direct Vent
Log Set Material	Ceramic Fiber
Fuel Type	Natural Gas or Propane
Ignition Type	Electronic
Warranty	Limited Lifetime
