Valor LINEAR SERIES Installation Instructions

10

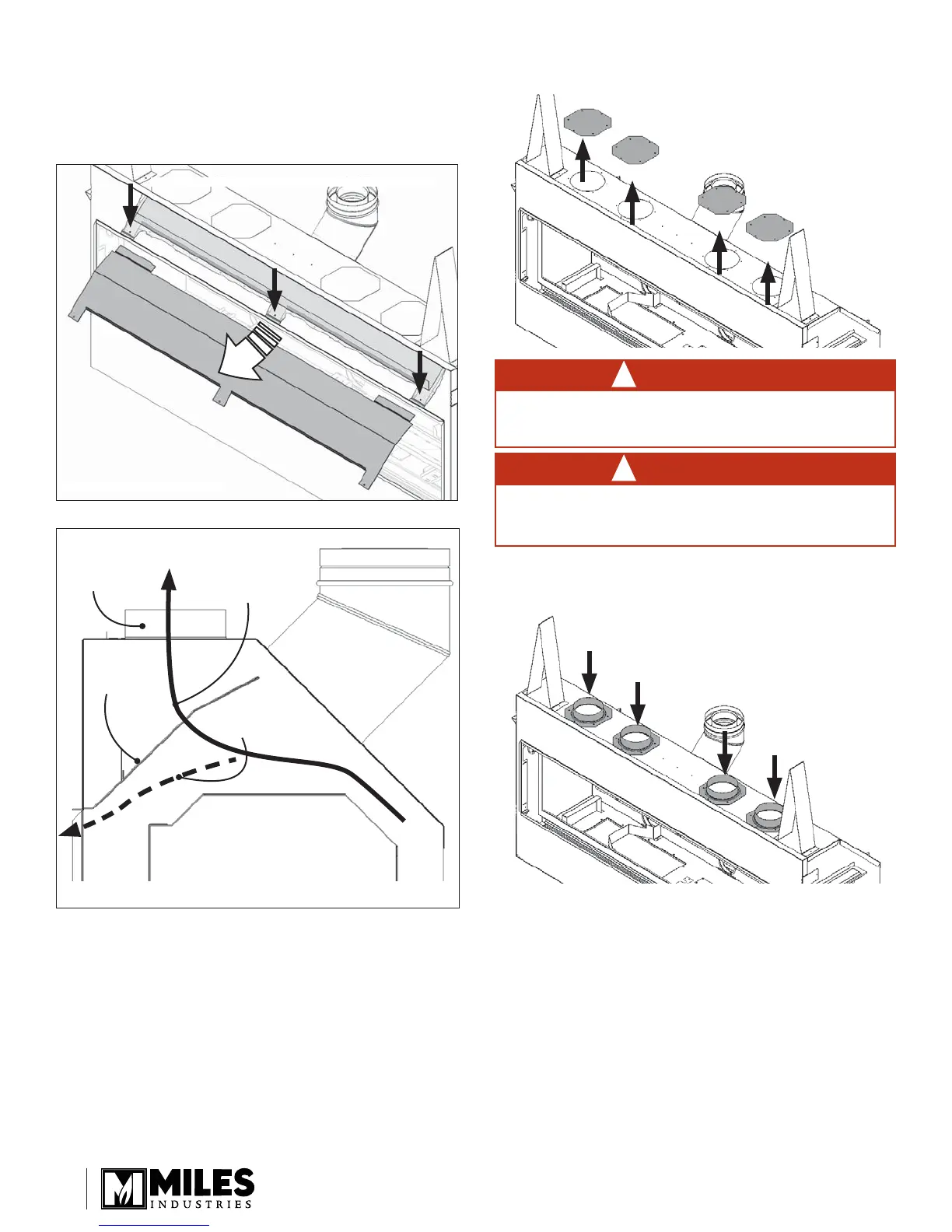

Installation
1. Remove the convection baffl e from the appliance.
It is held in place by screws located right behind
the upper edge of the fi replace opening (3 screws).
Recycle this panel as it is no longer needed.
2. Remove the four cover plates on top of the
appliance case (6 screws each).
3. Install the collars on the holes where the cover
plates were (6 screws each).
4. Frame a rough opening at the desired location—see
earlier sections of this manual for allowable plenum
positions and rough frame opening sizes.
WARNING
All FOUR (4) takeoffs MUST BE
CONNECTED TO PLENUM(S).
WARNING
DO NOT INSTALL 1270RBK Remote
Blower Kit to any of these 4 takeoffs.
!
!
Remove convection baffl e
Appliance front panel—shown transparent for clarity
Convection baffl e
Convection
baffl e to be
removed
Convective
airfl ow with
baffl e removed
Take-off
collar
Firebox
Section view through baffl e
Convective
airfl ow with
baffl e in place
