9

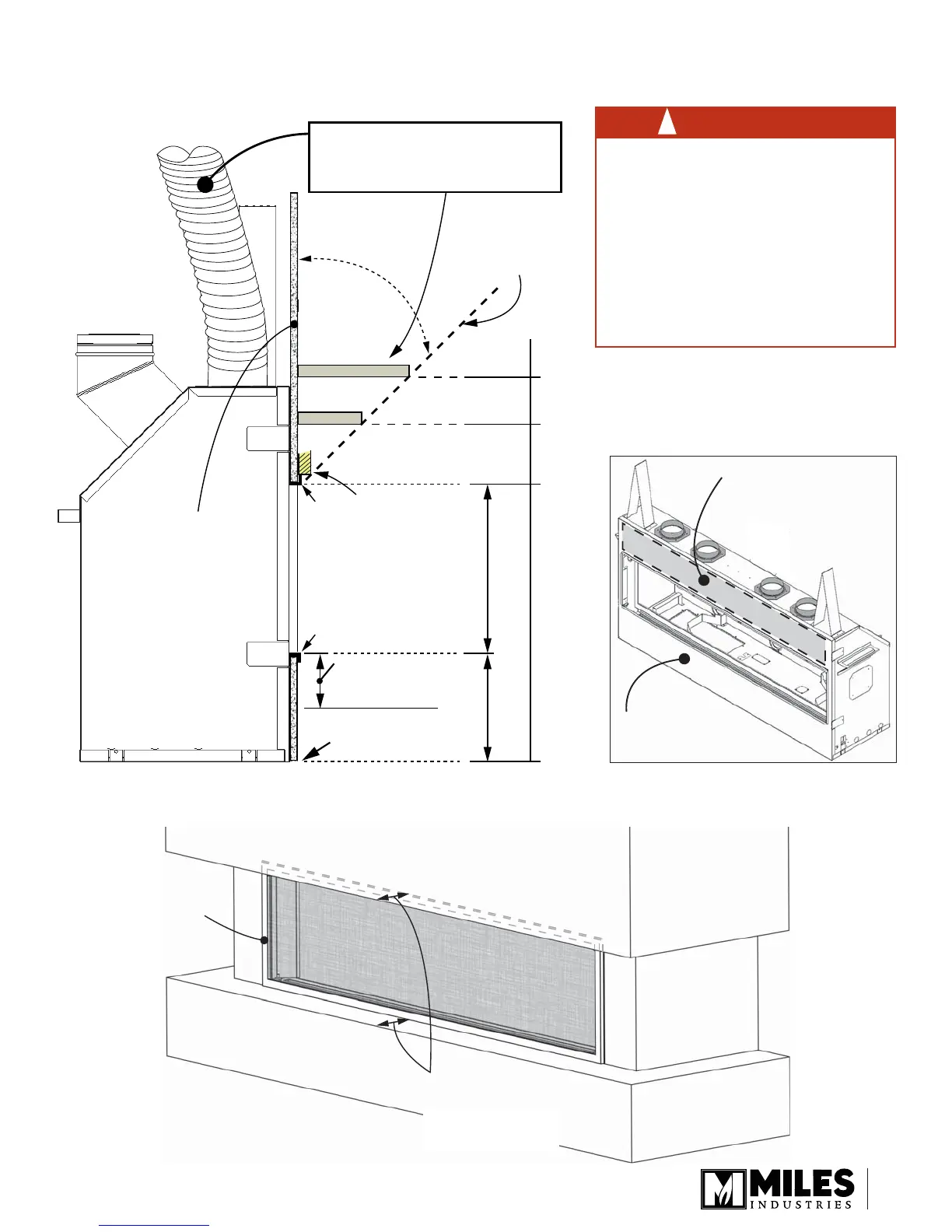

COMBUSTIBLE Mantel Clearances (when using LDK Duct Kits)
Sidewall clearances remain as stated in the installation manual packed with the appliance.
NON-COMBUSTIBLE Flush Hearth/Mantel Projections (when using LDK Duct Kits)
Bottom of Unit
6”
10”
14-1/4”
Opening in Trim
9-1/2”
Note: Combustible
wall finish up to
1” thick may be
installed over
cement board
and butt up to
the 1” trim.
DO NOT COVER
THE TRIM
Cement board as specified
in installation manual
packed with appliance
1” trim
1” trim
4” minimum to
combustible
hearth
Combustible
materials must
be kept behind
this line
23-3/4”
29-3/4”
33-3/4”
45°
NOTE: These Mantel Clearances
apply ONLY when LDK Duct
system is installed
Mantel
Height
(from
Bottom
of Unit)
Max. 6” non-combustible
projection allowed top and
bottom, at edge of 1” trim.
Only allowed when using
LDK Duct kit.
1” Trim
Screws penetrating through
cement board into this area
to fasten/support mantels
and nishes are allowed.
Pre-drill before screwing and
minimize number of screws used.
DO NOT USE screws
through the lower panel
WARNING
RISK OF OVERHEATING
AND FIRE!
Ensure LDK installation is
complete and internal con-
vection baffle is removed
(see page 10) when using
these combustible mantel
clearances.
!
