Linear Duct Kit LDK 1, LDK 4 with optional 1270RBK Remote Blower Kit
LDK1 or LDK4 plenum
Linear 1500J, 1700J or 1800J replaces
See installation instructions packaged
with the LDK Linear Duct Kits
Universal take-o supplied with 1270RBK kit.
Can mount to either end of plenum.
Maximum 1 x 1270RBK kit per plenum.
Note: DO NOT CONNECT 1270RBK directly
to replace when using LDK Duct Kit;
connect to LDK plenum ONLY as this will
ensure cooler wall temperature whether or
not the 1270 fan is running.

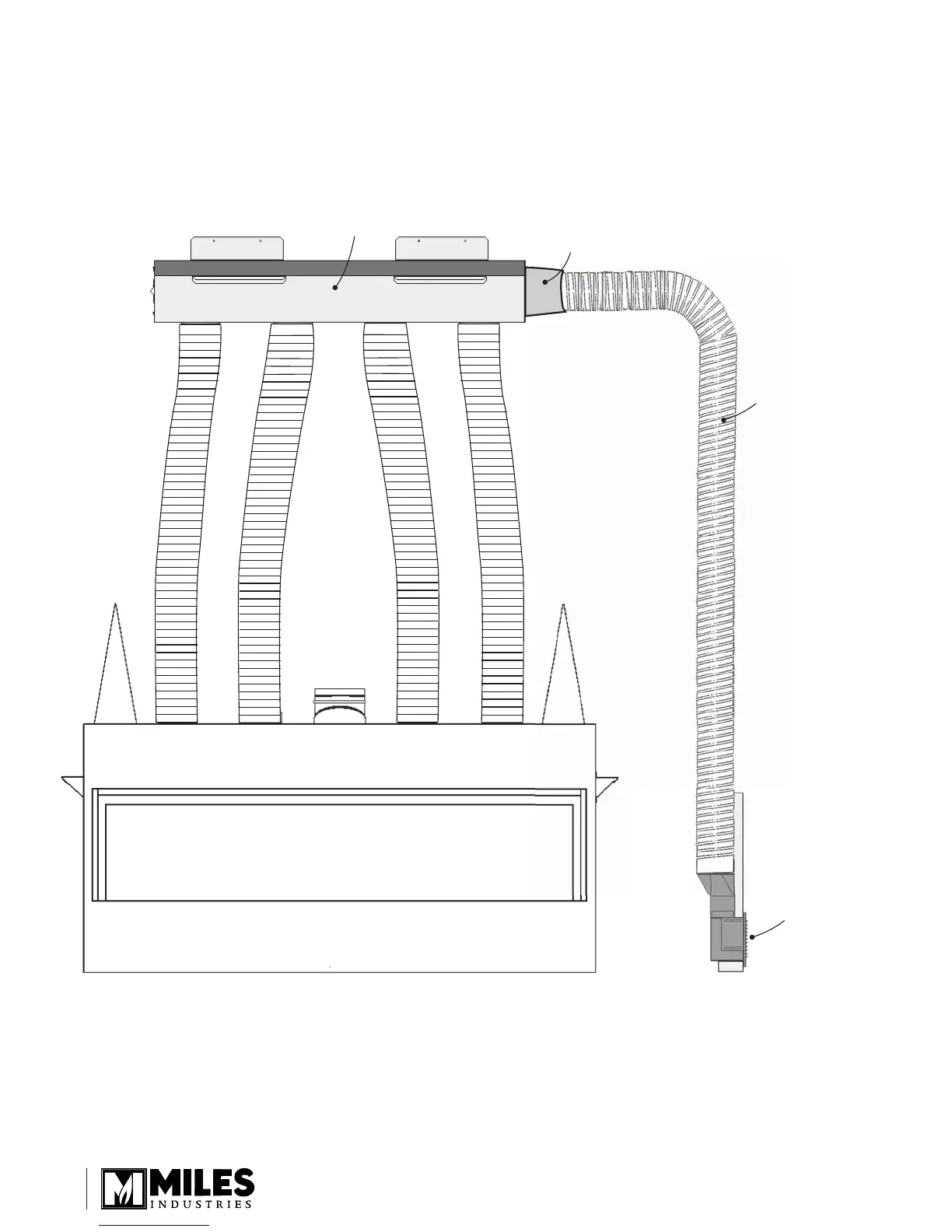

1270RBK fan unit -
see diagram for
possible mounting
positions. May be
positioned higher
or lower than
LDK plenum position.
5” dia. piping
