Valor LINEAR SERIES

5

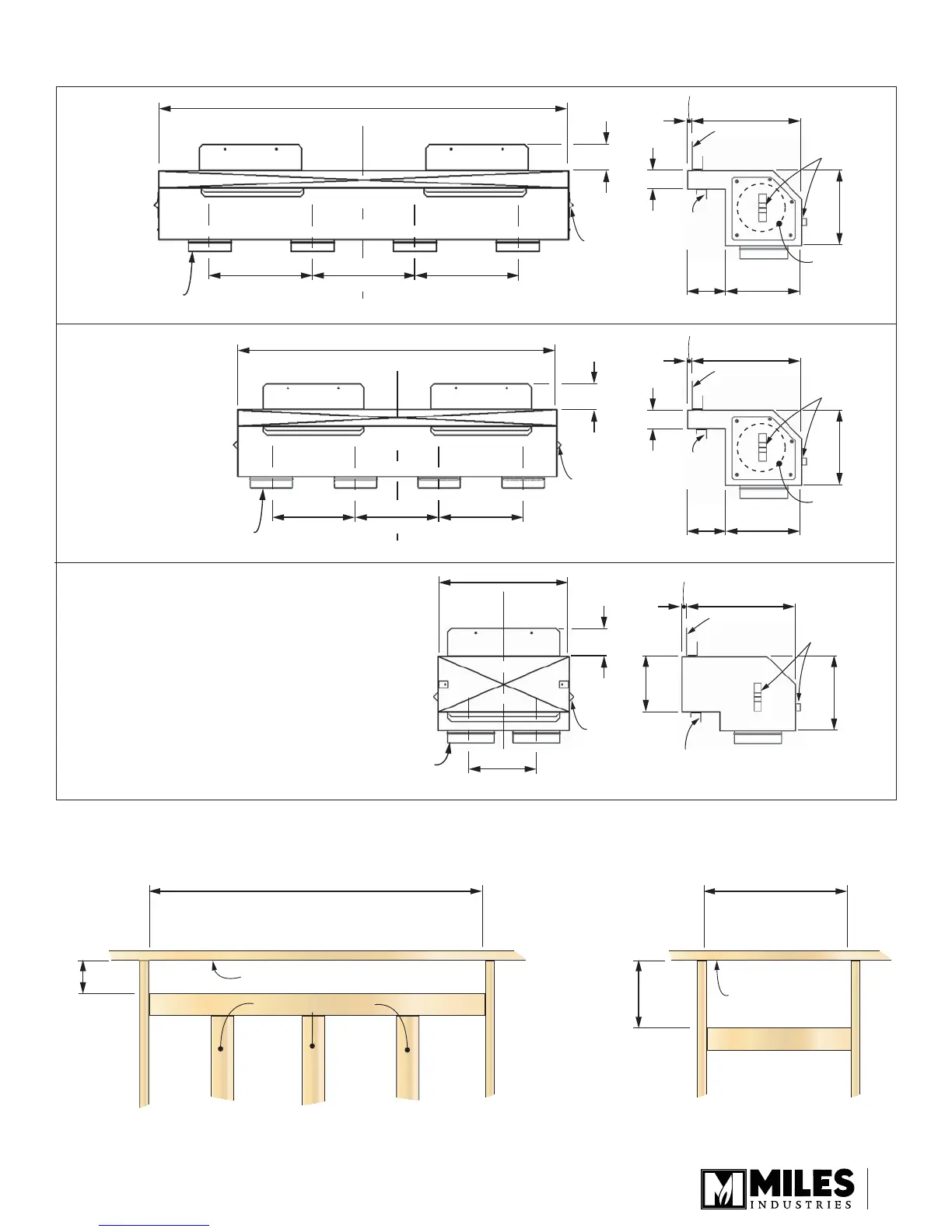

Dimensions
Rough Frame Openings
48” LDK 1
LDK 1
LDK 4
LDK 3
14”
5” dia.
collars (4)
C
L
C
L
12” LDK 1
7”
12” LDK 1 12” LDK 1
6”
2”
8”
1/2”
standos
6” knock-out
each end for
optional
1270RBK
connection
11-1/2”
8”4”
1/2” wallboard
mounting
bracket and
1-1/2” stando
mounting
bracket and
1/2” stando
5” dia.
collars (2)
3”
3”
mounting
bracket and
1-1/2” stando
mounting
bracket and
1/2” stando
8”
11-1/2”
1/2” wallboard
1/2”
standos
1/2”
stando
38” LDK 4
5” dia.
collars (4)
C
L
10” LDK 4 10” LDK 4 10” LDK 4
3”
1/2”
stando
1/2”
stando
2”
8”
1/2”
standos
6” knock-out
each end for
optional
1270RBK
connection
11-1/2”
8”4”
1/2” wallboard
mounting
bracket and
1-1/2” stando
mounting
bracket and
1/2” stando
Min. 1” below
nished ceiling
LDK 1 = 49”
LDK 4 = 39”
LDK 1 & LDK 4 LDK 3
LDK 3 = 15”
4”
Framing on edge
Framing on edge
Min. 1” below nished ceiling
8”
