4
Installation
Ensure that the venting and gas fitting are completed
and that the ceramics and window are installed before
assembling casting.

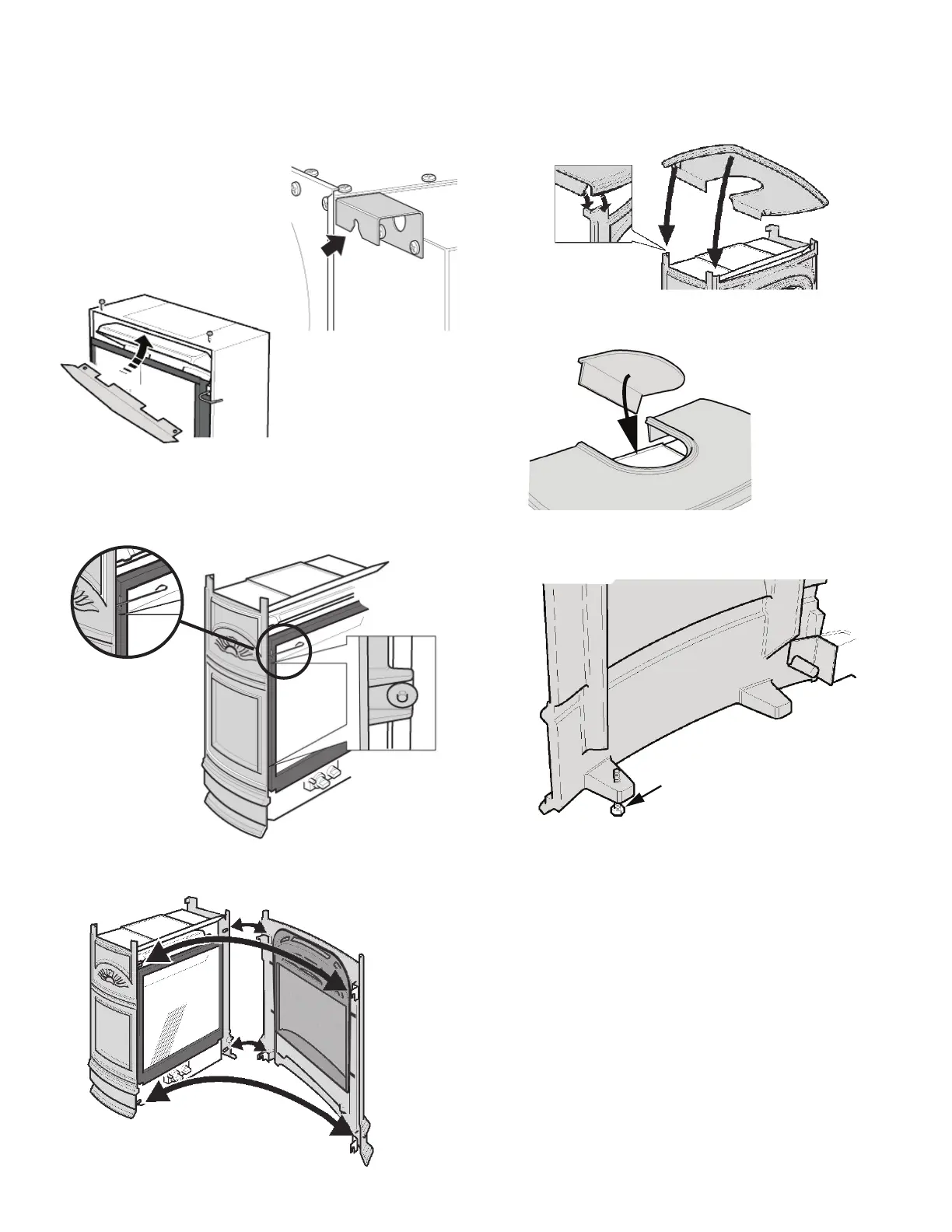

1. Attach the stand-off spacers.
They need not be fitted if the
rear of the appliance is more
than 1-1/4” (32 mm) from any
combustible material.
2. Install the top baffle using 2
screws supplied.
3. Bolt the left and right side castings in place using the
bolts and washers supplied. Leave the bolts slightly
loose to allow the side castings to move as necessary
when the front casting is hooked on.
Note: Lift the
window lever
handle to bolt
to sides and
then bend the
lever handle
back.
4. Hang the front casting by the hooks at the 4 corners.
Side casting
inside
face
Rear levelling bolt
5. Fit the top casting making sure that the corners
locate as shown.
Note: The rear edge of the top casting should be
flush with the rear edge of the side castings.
6. Fit the top infill casting (if rear vent connection).
7. If necessary, the appliance can be leveled by the
adjustment bolts at the back of the side castings.
