6

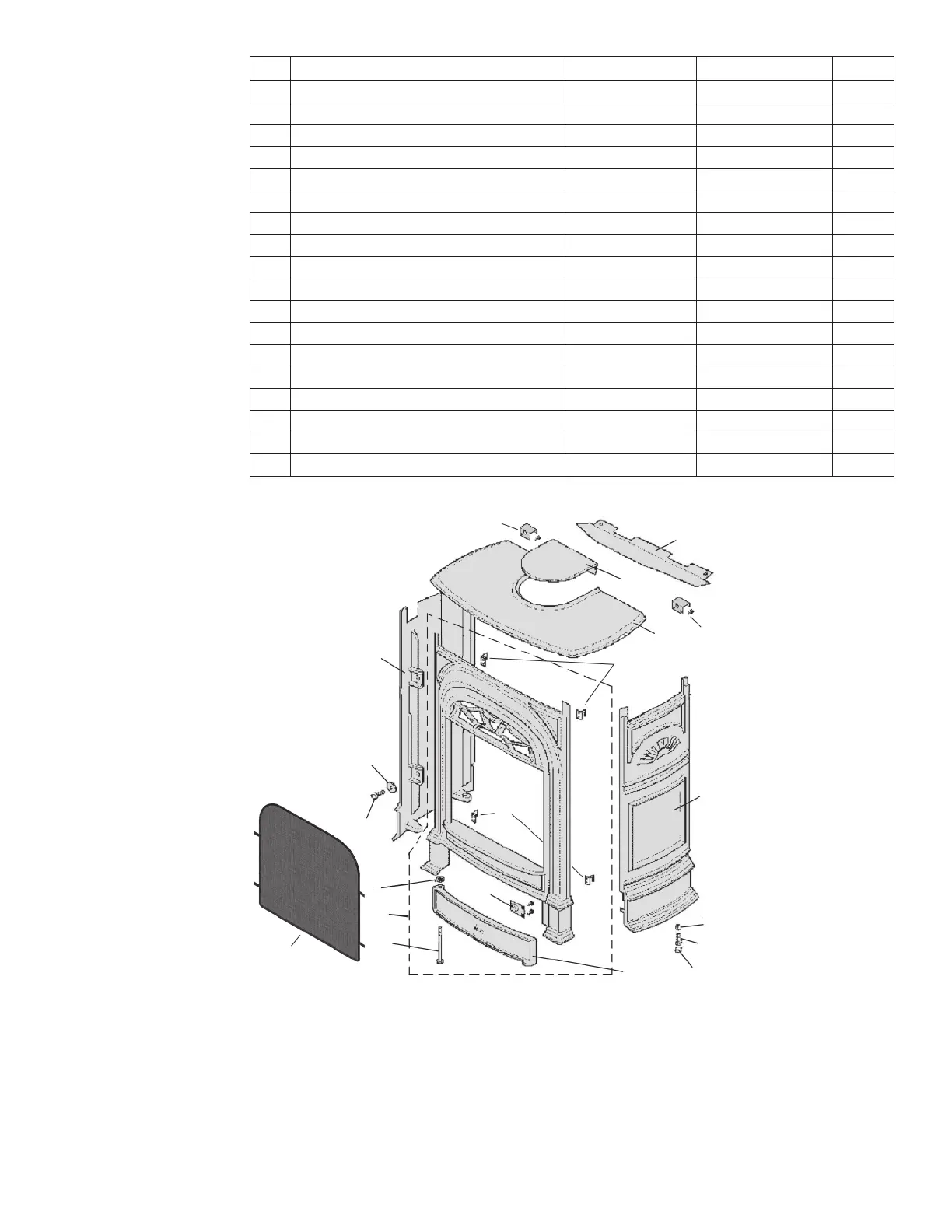

Repair Parts List
#
Description Number Alternate no.
Qty
1 Front Unit 569169 000B205 1
2 Door Hinge Washer 532529 100B810 1
3 Ash Pan Door 568989 540K048AZ 1
4 Door Hinge Bolt 568999 420K558 1
5Magnet Unit 569009 020A085 1
6 Right Side Casting 569179 550K056AZ 1
7 Left Side Casting 569189 550K057AZ 1
8Leveling Bolt 535979 100D273 2
9 Nut for Leveling Bolt 532259 100K294 2
10 Leveling Bolt Head Cover 526549 620B509 2
11 Top Baffl e 569209 340B228 1
12 Side Fixing Screw 535569 100D192 4
13 Side Fixing Washer 532529 320A219 4
14 Top Casting 569289 550K060AZ 1
15 Top Infi ll Casting 569299 540K053AZ 1
16 Hardware Kit (spacers, screws) 4001220 4001220 1
17 Hooks Kit (hooks, screws) 4001239 4001239 1
18 Barrier Screen 4006382 4006382 1
1
8
2
9
3
10
15
4
11
16
16
5
12
17
17
6
13
18
7
14
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1
Tel. 604-984-3496 Fax 604-984-0246
www.valorfireplaces.com
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
