10

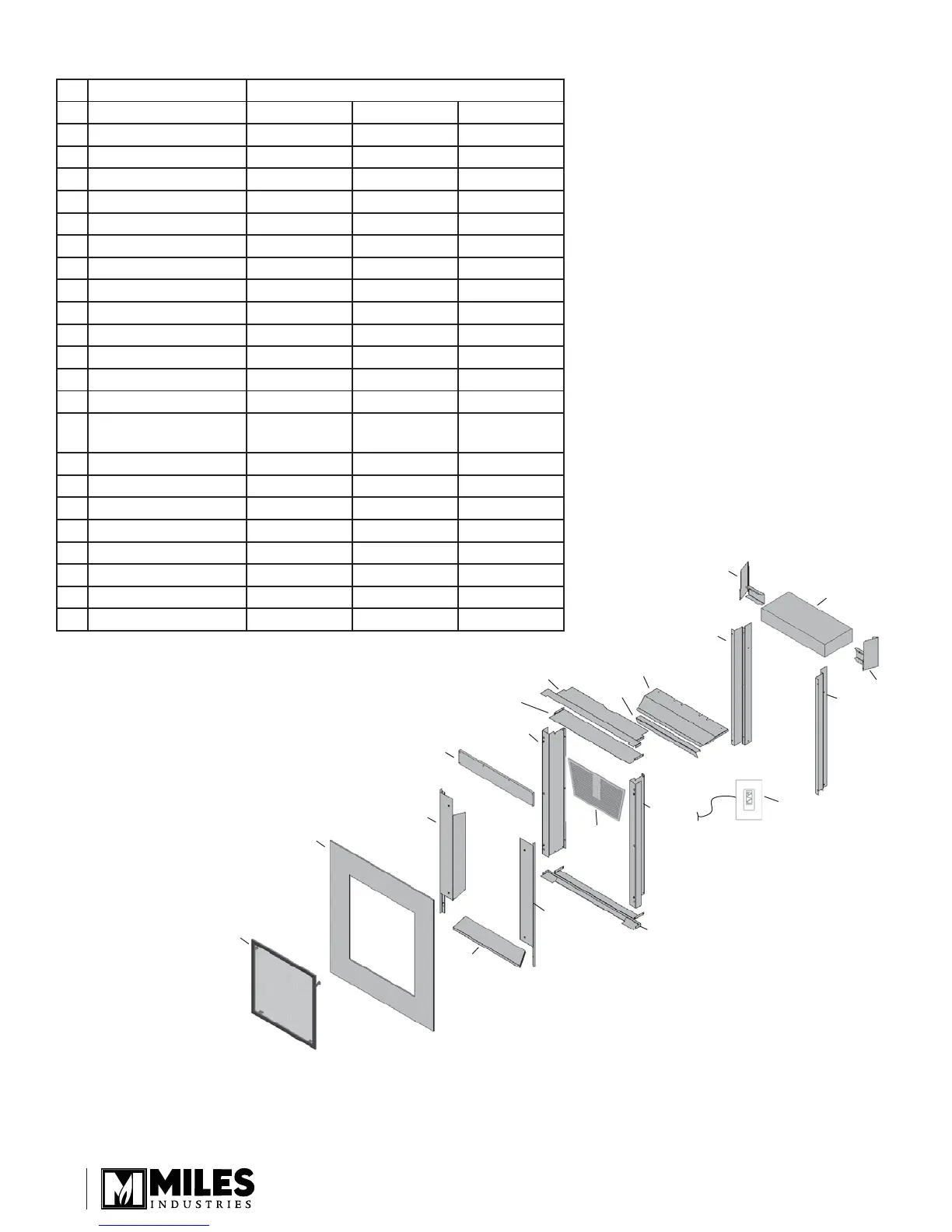

Repair Parts List
Description Part Numbers
569LFP Patina 569LFN Nickel 569LFB Black
1 Trim Panel 4002267PA 4002267N 4002267AZ
2 LH Side Lead-in Panel 4002268AZ 4002268AZ 4002268AZ
3 RH Side Lead-in Panel 4002269AZ 4002269AZ 4002269AZ
4 Lower Lead-in Panel 4002270AZ 4002270AZ 4002270AZ
5 Cement Board 4002568 4002568 4002568
6 LH Column Assembly 4002272 4002272 4002272
7 RH Column Assembly 4002274 4002274 4002274
8 Bottom Panel 4002282AZ 4002282AZ 4002282AZ
9 Roof Grille 4002101EB 4002101EB 4002101EB
10 Internal Baffl e 4002402 4002402 4002402
11 Top Panel 4002276AZ 4002276AZ 4002276AZ
12 Window Frame Cover 4002279BY 4002279BY 4002279BY
13 Convection Baffl e 4002277BY 4002277BY 4002277BY
14
Touch Control Wall
Switch with wire
4001487 4001487 4001487
15 LH Stud Bracket 4002516 4002516 4002516
16 RH Stud Bracket 4002517 4002517 4002517
17 LH ZC Stand-off 4002570 4002570 4002570
18 Insulation 620B987 620B987 620B987
19 RH ZC Stand-off 4002569 4002569 4002569
20 Barrier Screen 4003375 4003375 4003375
Screws 8 x 3/8 (20) 100A757 100A757 100A757
Nuts 8 x 32 (4) 4001517 4001517 4001517
1
20
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1
Tel. 604-984-3496 Fax 604-984-0246
www.valorfi replaces.com
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
