SETUP GUIDE – TPMS
10
STEP 2
STEP 2.1
1. Once it locates the sensor, the SmarTool will display
the ID number in the tire position field selected by the
operator.
2. If performing a complete tire installation, be sure to
repeat this step for each tire before moving to the next
step.
3. Once all Sensor ID numbers (tires) have been
scanned/ loaded, press ESC on the SmarTool and
return to the “ID Learning” menu. Return to the
vehicle’s cab.
4. *Note: When programming a Valor CANbus
transceiver for an axle with only two wheel positions
(tires) program the sensor ID numbers in positions – A
for left side and B for the right side. (Figure 11)
By positioning the sensors this way the graphical
display on the Ametek gauge will appear with 2 wheel
positions on the axle, not 4. For axles with 4 wheel
position (tires), program the sensor ID numbers as
normal: outside left A, inside left B, inside right C,
outside right D.

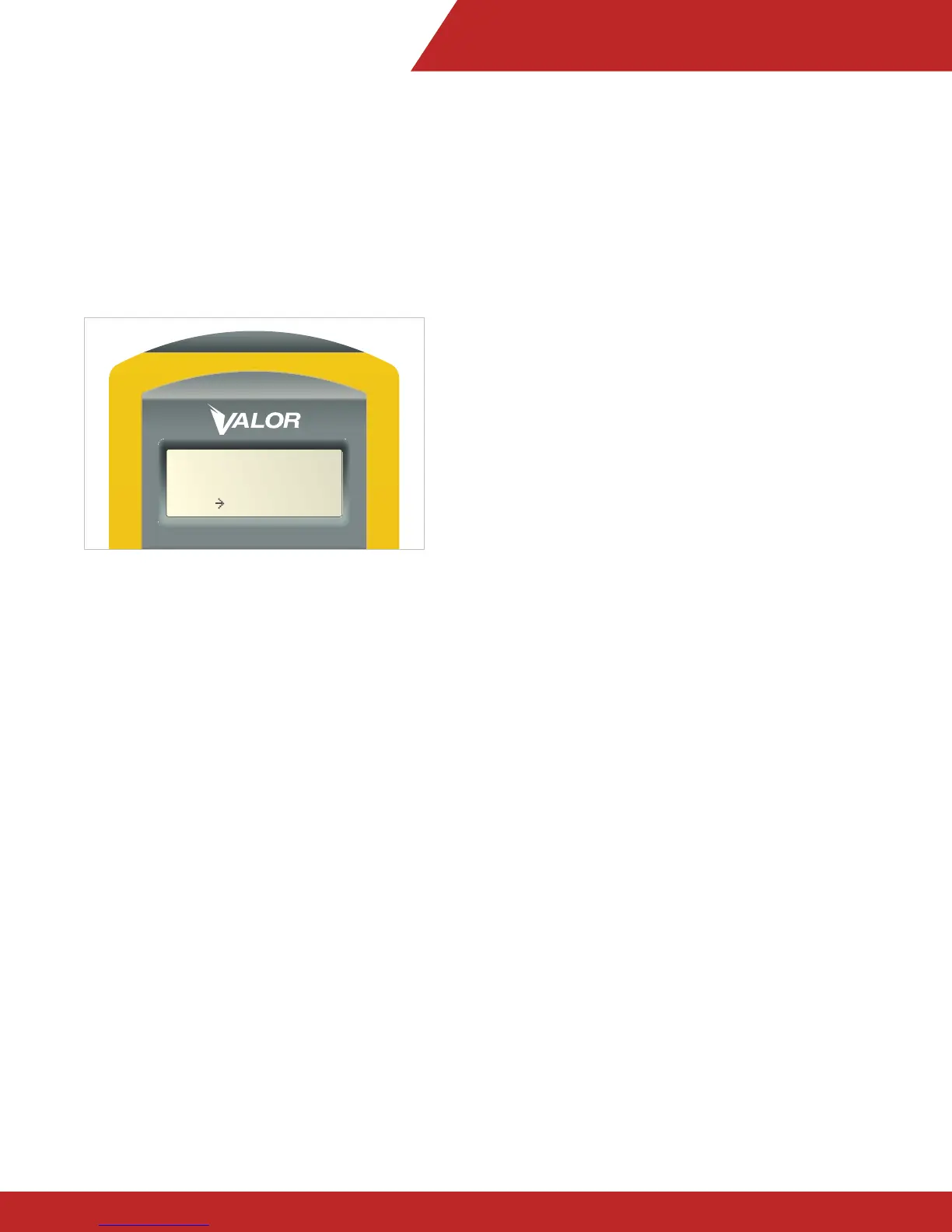

Figure 11
Vehic ID: 0014BC
1-A: 01015669
1-B: 01015559
1-C: ________
To Next Page
