SETUP GUIDE – TPMS
9
STEP 2
STEP 2 - Read Sensor ID/Set Positions
1. Using the up/down arrow buttons, select the tire
position you want to program. Once the arrow
is in the selected position (Figure 9), go to the
corresponding tire on the vehicle.
Example: If programming 1–A to the left front tire,
position the SmarTool approx. 1 inch from the side
of the tire you wish to scan (sensors are normally
installed near the valve stem).
2. Press ENTER
3. A series of zeros will scroll across the SmarTool
indicating a search for sensor. When it locates the
sensor, the SmarTool will beep once. (Figure 10)

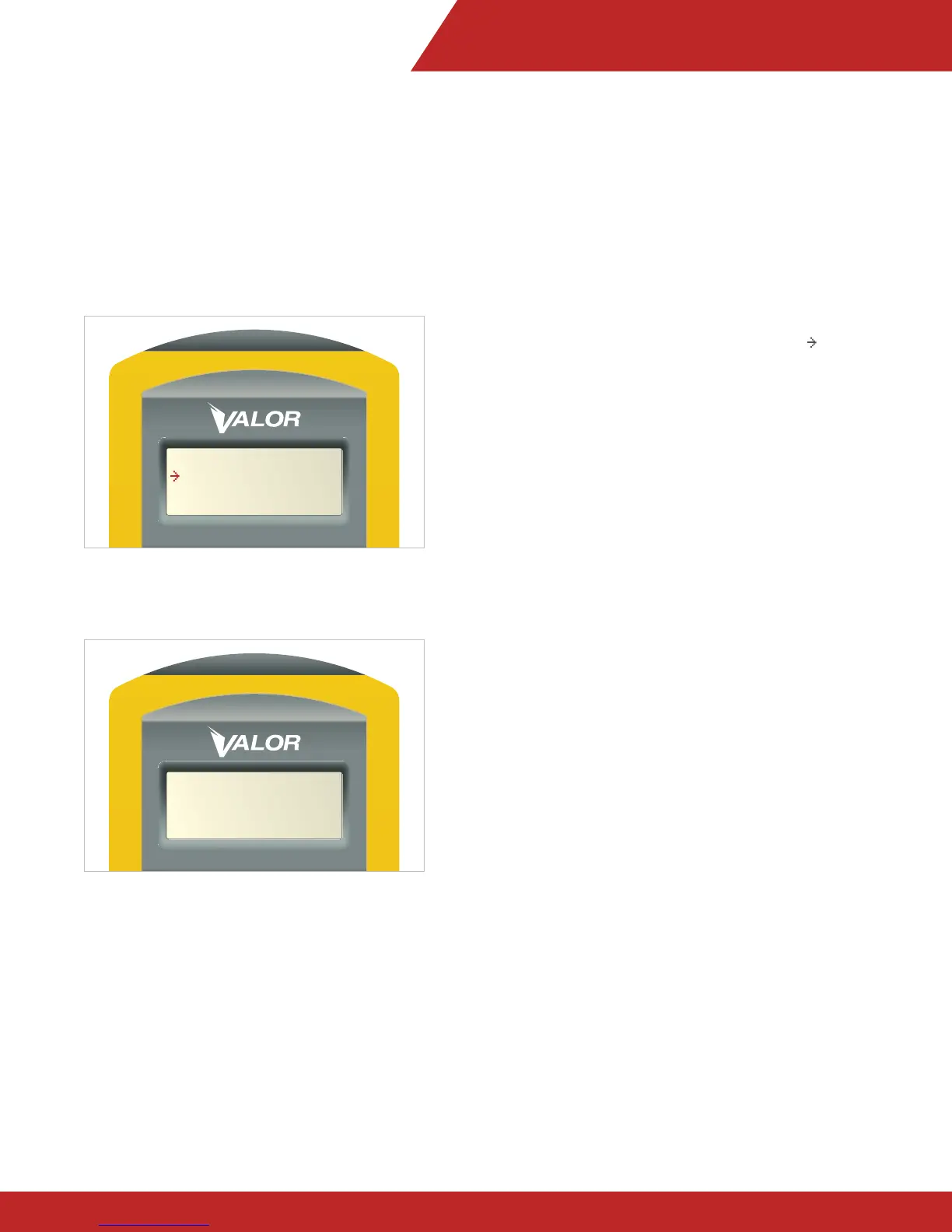

Figure 9
Vehic ID: 0014BC
1-A: ________
1-B: ________
1-C: ________
Figure 10
OOOOOOOOOO
