SETUP GUIDE – TPMS
15
STEP 5
STEP 5 - Conrm Programming
1. To check if the new sensor ID information has been
uploaded correctly, go to the Main menu on the
SmarTool and select option “Check ID” “4/7.”
(Figure 21)
2. Position the SmarTool directly over the Valor CANbus
and press ENTER.
3. The screen will display “Waiting Rec,” (Figure 22)
Restart the Valor CANbus (power OFF and back ON).
4. The SmarTool will display the sensor ID (tires) by
position assigned during programming. (Figure 23)
Example:
1–A 01011A2D
1–B 0101243R
Showing all position with sensors.

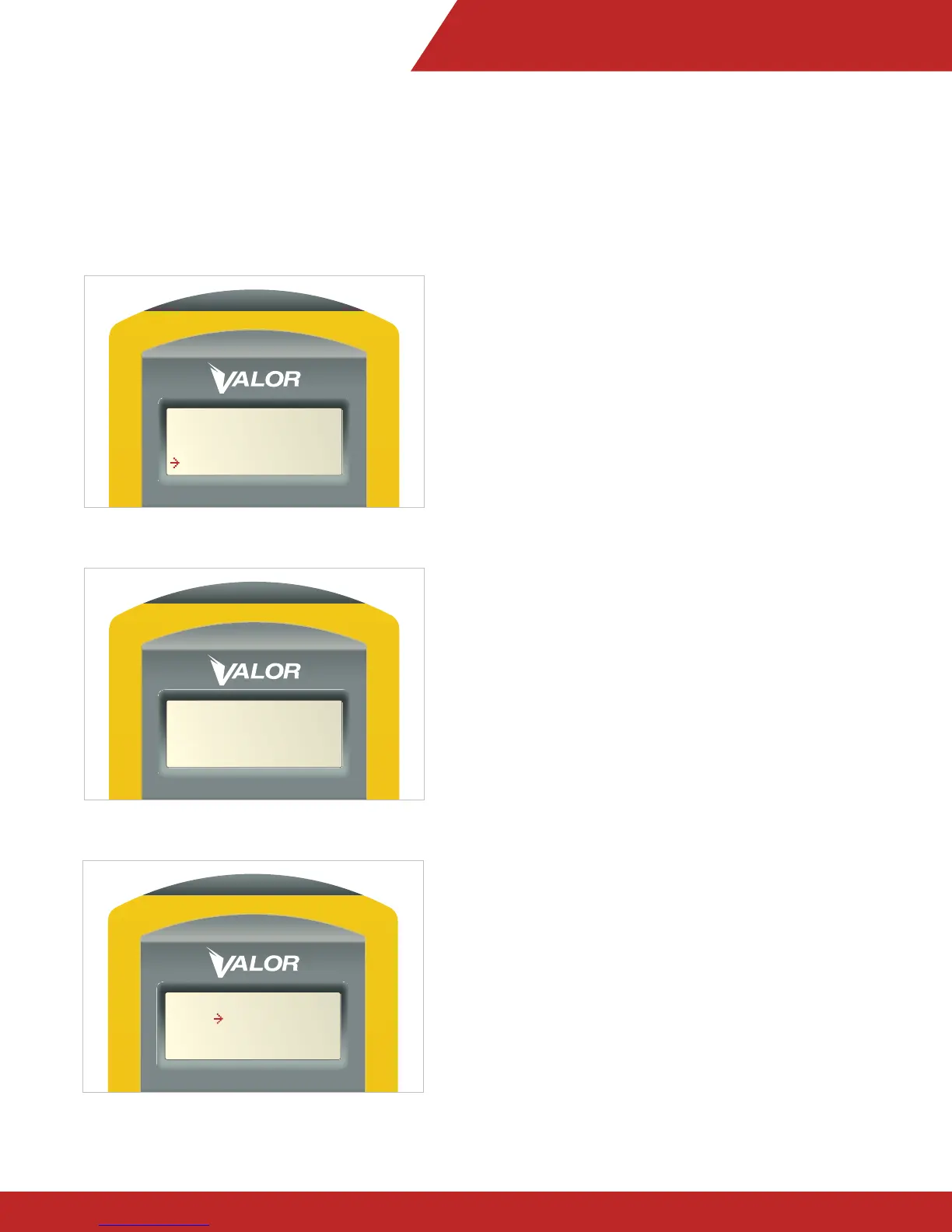

Figure 21
Sensor 4/7
Vehicle ID
ID Learning
Check ID
Figure 22
Waiting Rec...
Figure 23
Vehic ID: 0017B4
6-B: 010162F6
6-C: 01018E79
6-D: 01016997
