There are two types of loose coals.
These are identified with the letter
“A” or “B” on the underside of the
coal.
There are three “A” coals and two
“B” coals.
3. Place a type “A” coal between
the front and rear base coals with
the letter “A” upright and so that the
coal is against the left side of the
firebox. See figure 24.
4. Place a type “B” coal between the
front and rear base coals as shown in
figure 25. The letter “B” should be
upright.
5. Place a type “A” coal between
the front and rear base coals with
the letter “A” upright. The top of
the coal should rest against the
centre coal of the rear base coal as
shown in figure 26.
6. Place the remaining type “B” coal
at the right side of the firebox
between the front and rear base coals.
The letter “B” should be upright. The
coal should touch the right side of the
firebox. See figure 27.
Page 25
INSTALLER GUIDE

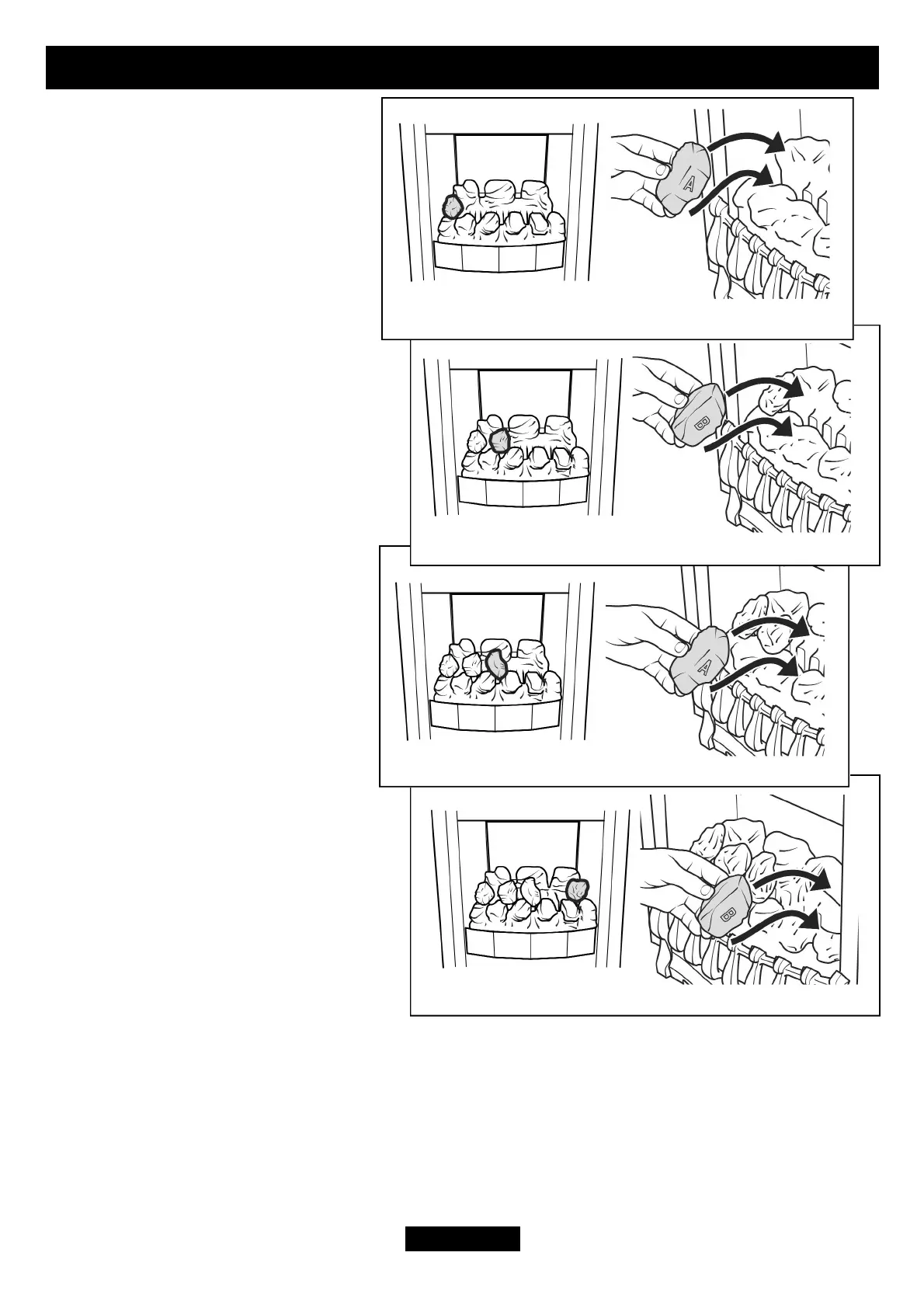

Figure 27.
Figure 26.
Figure 25.
Figure 24.
