17.3 To Remove the Burner Unit
See figure 33.
1. Remove the loose coals, front base
coal, and rear base coal.
2. Remove the front surround unit -
See section 17.2.
3. Support the inlet-isolating elbow to
avoid straining the pipework and
disconnect the appliance from the
elbow.
4. Detach the burner unit from the
convection box by removing two screws.
5. Replace in the reverse order
17.4 To Remove the Pilot Unit
1. Remove the burner unit - See section
17.3.
2. If lying the burner on its back, ensure
that the worksurface is suitably protected
This will avoid damage to the
worksurface.
3. Detach the pilot pipe from the pilot
unit.
4. Detach the thermocouple from the gas
valve
5. Detach the electrode lead from the underside of the electrode tab.
6. Remove the two screws securing the pilot unit . See figure 34.
7. Refit in the reverse order.
Note: 1. The pilot unit is an atmosphere sensing device. It must be replaced as
a whole assembly. Its individual components are not separately replaceable.
17.5 To Remove the gas valve
See figure 35.
1. Remove the burner unit - See section 17.3.
2.
If lying the burner on its back, ensure that the worksurface is suitably protected This
will avoid damage to the worksurface.Turn the burner unit upside down. Detach the
thermocouple from the tap
3. Detach the pilot pipe from the tap.
4. Detach the inlet pipe.
Page 32
INSTALLER GUIDE

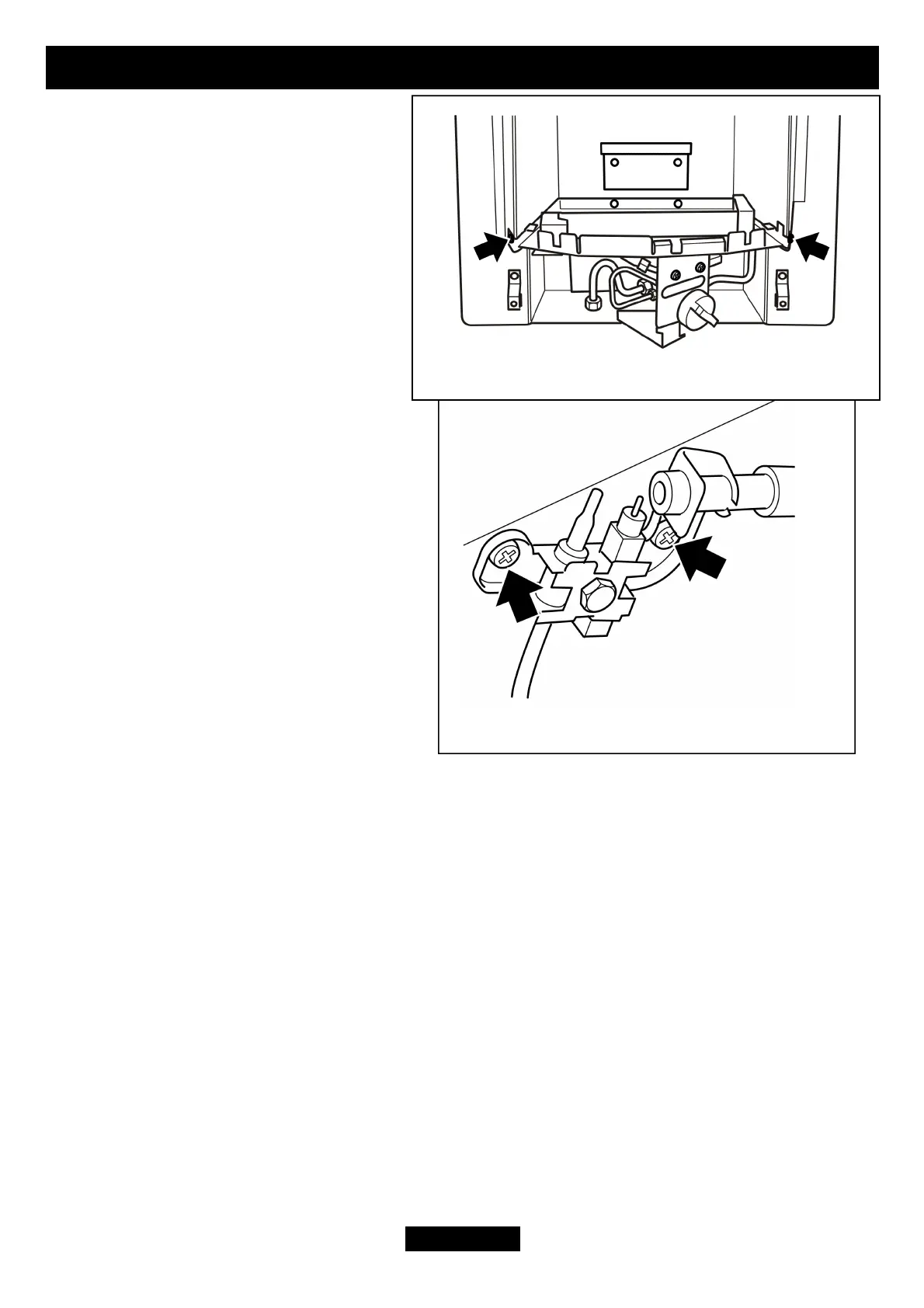

Figure 33. Burner attachment points
Figure 34. Pilot unit removal
