12. CERAMIC COALS INSTALLATION
1.
Place the rear base coal in the firebox. It should rest on the ledges at the rear sides of
the burner unit. When located gently move the rear base coal so that it is as far forward
as possible. The amount of movement
will be negligible (See figure 22).
2. Place the front base coal in the firebox
with its bottom front locating over the
front rim of the firebox. Pull the coal
forward so that it locates immediately
behind the front rim of the firebox. (See
figure 23).The front base coal will touch
the rear base coal as it is located.
Page 24
INSTALLER GUIDE

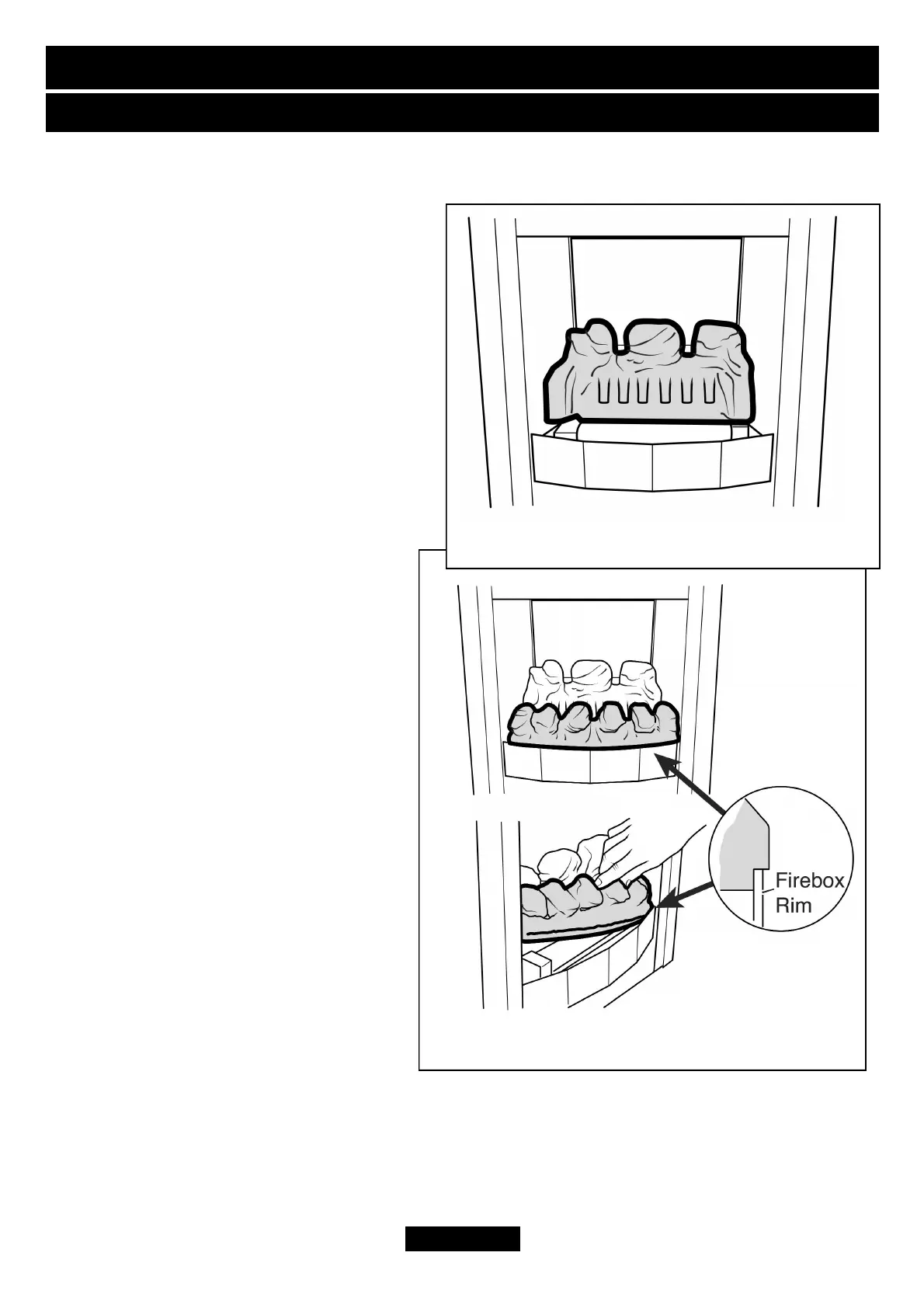

Figure 23. Front base coal position
Figure 22. Rear Base Coal Position
