9.2 Setting OSDP address for the card reader
You can set the card reader address to 1 (default setting), 2 , or programmed with a value from 1 to 8 using

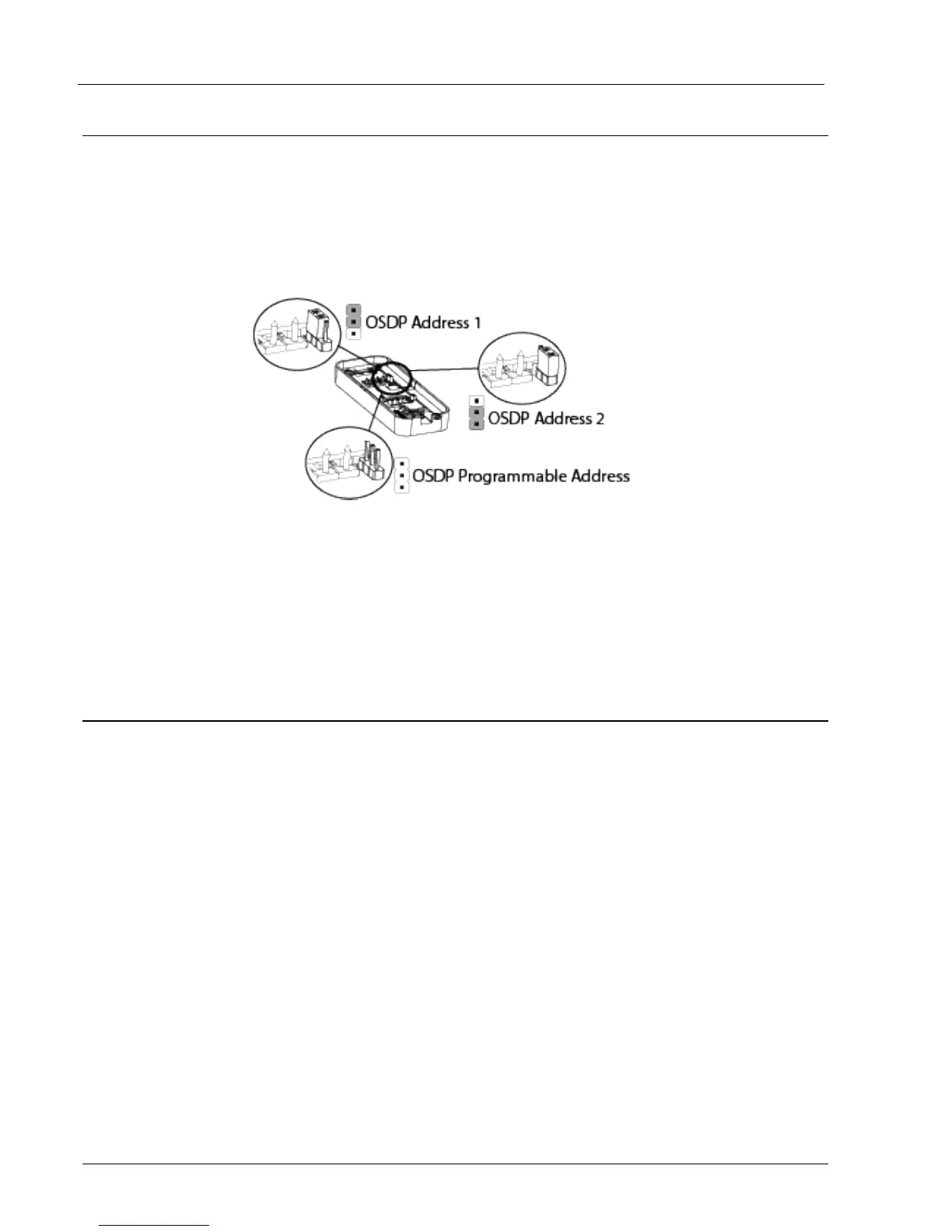

the jumper. Place the jumper in one of the three positions shown in the diagram below to achieve the
desired address. Additional addresses are automatically assigned by the controller from 3 to 8 following
the order in which the readers are powered up.
When the card reader is first powered up, the yellow LED flashes. The flashing lights stop when it is
correctly configured to SiPass integrated. This can be tested by holding a card next to the reader. A
correctly configured card reader acknowledges the card according to the SiPass integrated settings.
Please note that a new card reader will always get the next free bus address. For example, if a card reader
with bus address 5 is removed and a new card reader is installed, the new card reader gets address 5.
9.3 Connecting the card reader to SiPass integrated in Wiegand mode
For more detail on connecting the card reader to SiPass integrated via Wiegand see section 5.3.3 in Connecting the
cables on page13
Mullion Reader – User Manual Connecting the card reader to SiPass integrated
© Vanderbilt 2018 24
A-100410
21.06.2018
