vanEE 6LC - Appendix D - Drain Connections

17

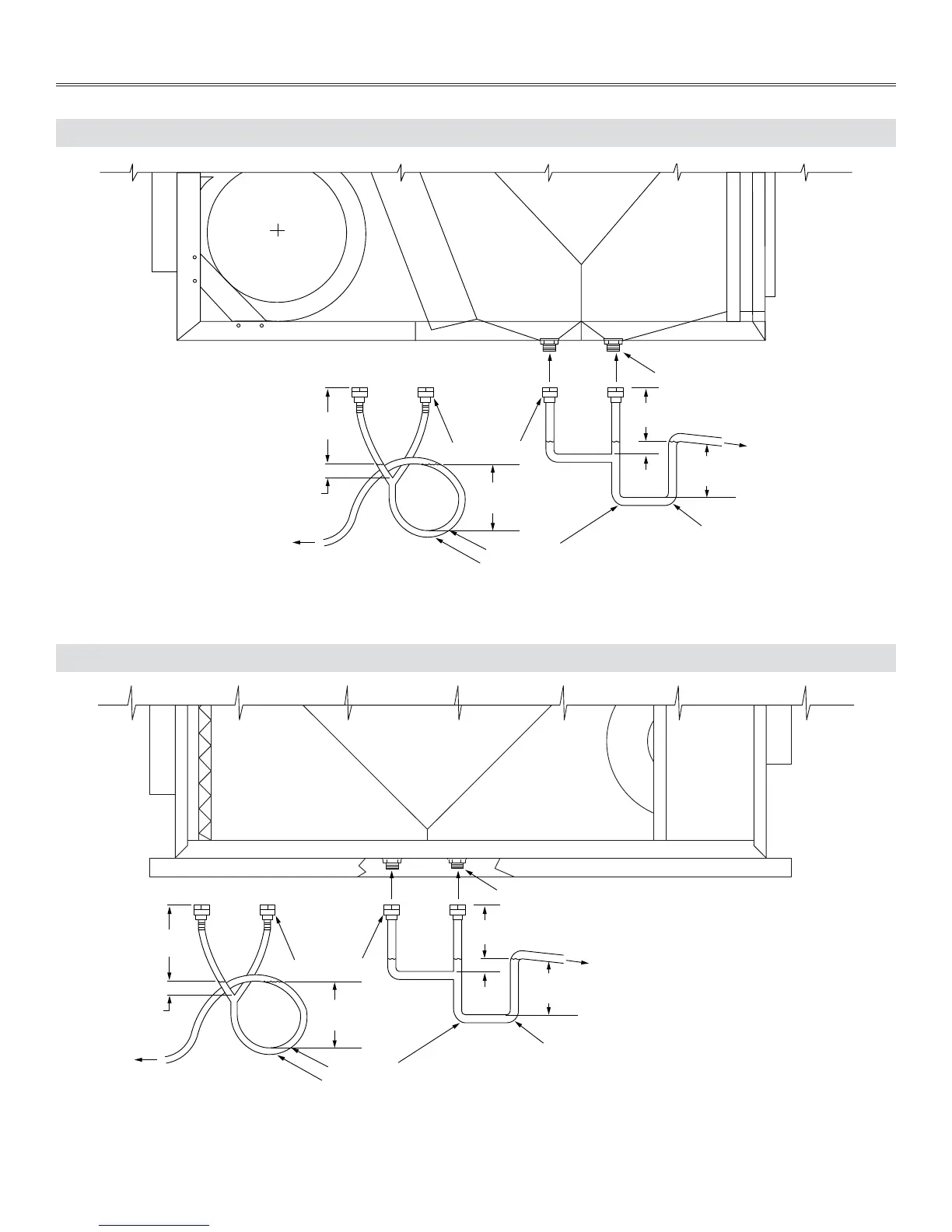

Appendix D
DRAIN CONNECTIONS
6LC, V6LC, 12LC AND V12LC
Min. 3”
[76 mm]
Min. 1”
[25 mm]
3/4” NPT
coupler
Water trap
Min. 4”
[102 mm]
Min. 4”
[102 mm]
Plastic hose
To drain
NOTES:
1. All hose, pipe and couplers to be supplied by others.
2. Slope drain lines minimum 1/4” per foot.
Min. 1”
[25 mm]
Min. 3”
[76 mm]
Plastic drain fitting
To drain
Copper or
plastic pipe
VO0002A
7000
Min. 3”
[76 mm]
Min. 1”
[25 mm]
3/4” NPT
coupler
Water trap
Min. 4”
[102 mm]
Min. 4”
[102 mm]
Plastic hose
To drain
NOTES:
1. All hose, pipe and couplers to be supplied by others.
2. Slope drain lines minimum 1/4” per foot.
Min. 1”
[25 mm]
Min. 3”
[76 mm]
Plastic drain fitting
To drain
Copper or
plastic pipe
VO0001A
