vanEE 6LC - 6 Service Parts; 6 LC, V6 LC-12 LC, V12 LC Exhaust Defrost

7
6. Service parts

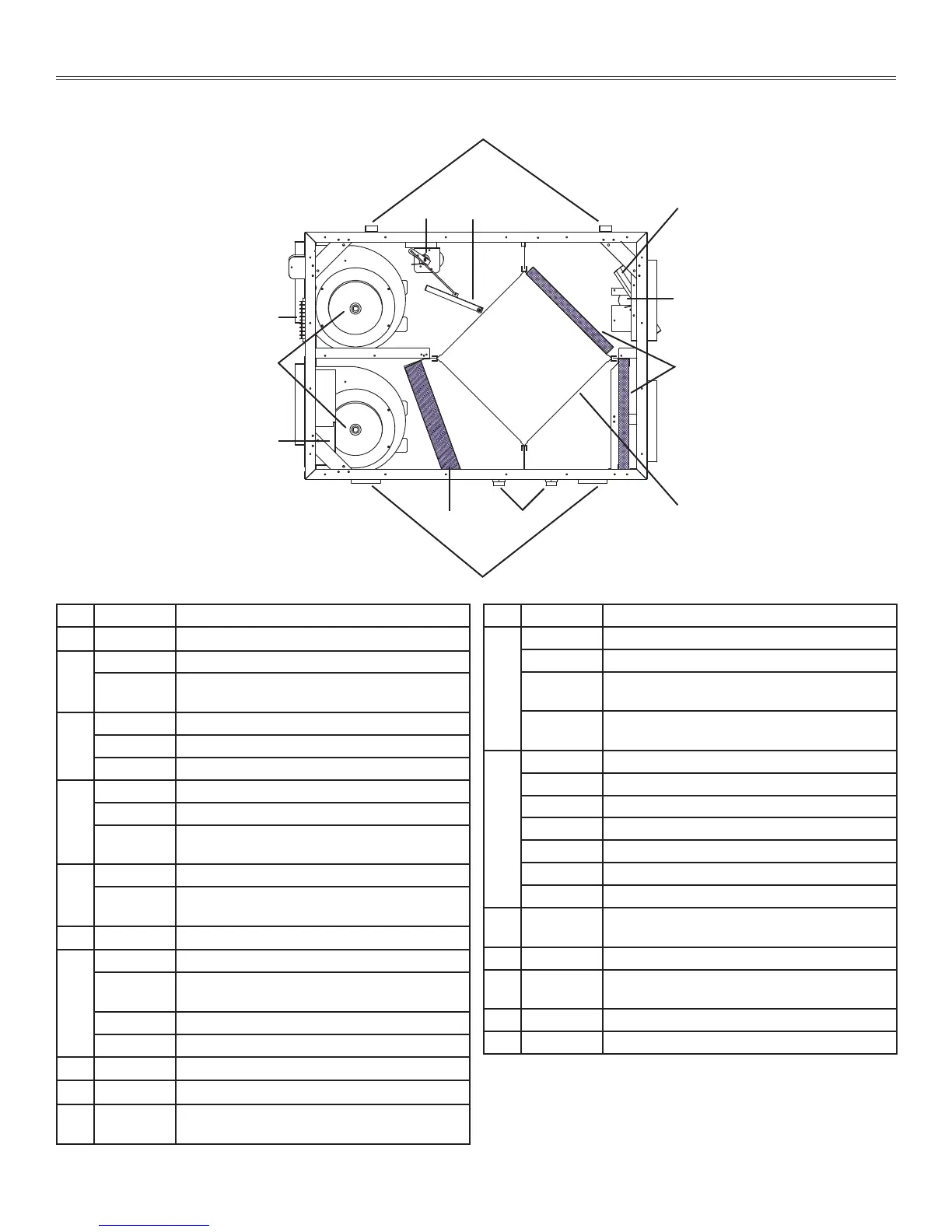

6.1 6LC, V6LC-12LC, V12LC Exhaust Defrost
B
C D
E
F
G
H
I
JK
M
L
N
VL0068
Ref. Part No. Description
B
13036 Hinge kit (male-female)
C
1808139 Core Defrost Actuator 6LC, V6LC-12LC, V12LC
63341
Core Defrost Actuator 12LC, V12LC, Powder
Coated
D
63327 Core Damper 6LC, V6LC
63328 Core Damper 12LC, V12LC
63329 Core Damper 12LC, V12LC, Powder Coated
E
201982 Fresh Air Damper 6LC, V6LC
63330 Fresh Air Damper 12LC, V12LC
63331
Fresh Air Damper 12LC, V12LC Powder
Coated
F
1808138 Fresh Air Damper Act. 6LC, V6LC-12LC, V12LC
63332
Fresh Air Damper Actuator 12LC, V12LC
Powder Coated
G
201805 Filter SWF 13.125" x 11.25" x 1" (unitary)
H
1808147 Core Poly CSA 6LC, V6LC-12LC, V12LC (unitary)
1808146
Core Poly UL 6LC, V6LC-12LC, V12LC U.S.
only (unitary)
1604191 Core Aluminum 6LC, V6LC-12LC, V12LC (unitary)
1607787 ERV HM Core 6LC, V6LC-12LC, V12LC (unitary)
I
16035 Door Latch-Keeper Kit
J
1607456 Drain Fitting 6LC, V6LC, 12LC, V12LC, 7000 (unitary)
K
63342
Filter Optional MEF 6LC, V6LC, 12LC, V12LC
(unitary)
Ref. Part No. Description
L *
1808130 PCB Electronic 6LC, V6LC, 12LC, V12LC, 7000
202382 Thermistor 6LC, V6LC, 12LC, V12LC, 7000
500025914
Relay SPDT 120 VAC, 1 HP,
30 A @ 120 VAC, 6LC, V6LC, 12LC, V12LC
500025915
Relay DPST 120 VAC, 1 HP,
30 A @ 120 VAC, 6LC, V6LC, 12LC, V12LC
M
1808144 Blower Ass’y 6LC, V6LC
1808148 Blower Ass’y 12LC, V12LC
1808148P Blower Ass’y 12LC, V12LC Powder Coated Option
1808142 Blower Wheel 6LC, V6LC, 12LC, V12LC (not shown)
1808149 Fan Motor 6LC, V6LC (not shown)
1808150 Fan Motor 12LC, V12LC (not shown)
63110 Capacitor 5 F LC, 7000 (not shown)
N
208507
Terminal Strip 10-Pin Molex 38721-6710,
6LC, V6LC, 12LC, V12LC
* 202798 Door Assembly 6LC, V6LC, 12LC, V12LC
* 63343
Door Assembly
12LC , V12LC
(Powder Coated Option)
* 1808145 Accessories kit 6LC, V6LC, 12LC, V12LC
* 63344 Hanger Strap 18" Kit 6LC, V6LC,12LC, V12LC, 7000
* Not Shown.
NOTE 1: C and D not available for ERV HM Core
NOTE 2: H 2 cores required for 6LC and V6LC units
3 cores required for 12LC and V12LC units
NOTE 3: G 4 filters for 6LC and V6LC units
6 filters for 12LC and V12LC units
NOTE 4: K 2 filters for 6LC and V6LC units
3 filters for 12LC and V12LC units
