vanEE 6LC - 6 LC, V6 LC-12 LC, V12 LC Recirculation Defrost

8
6. Service parts (cont’d)

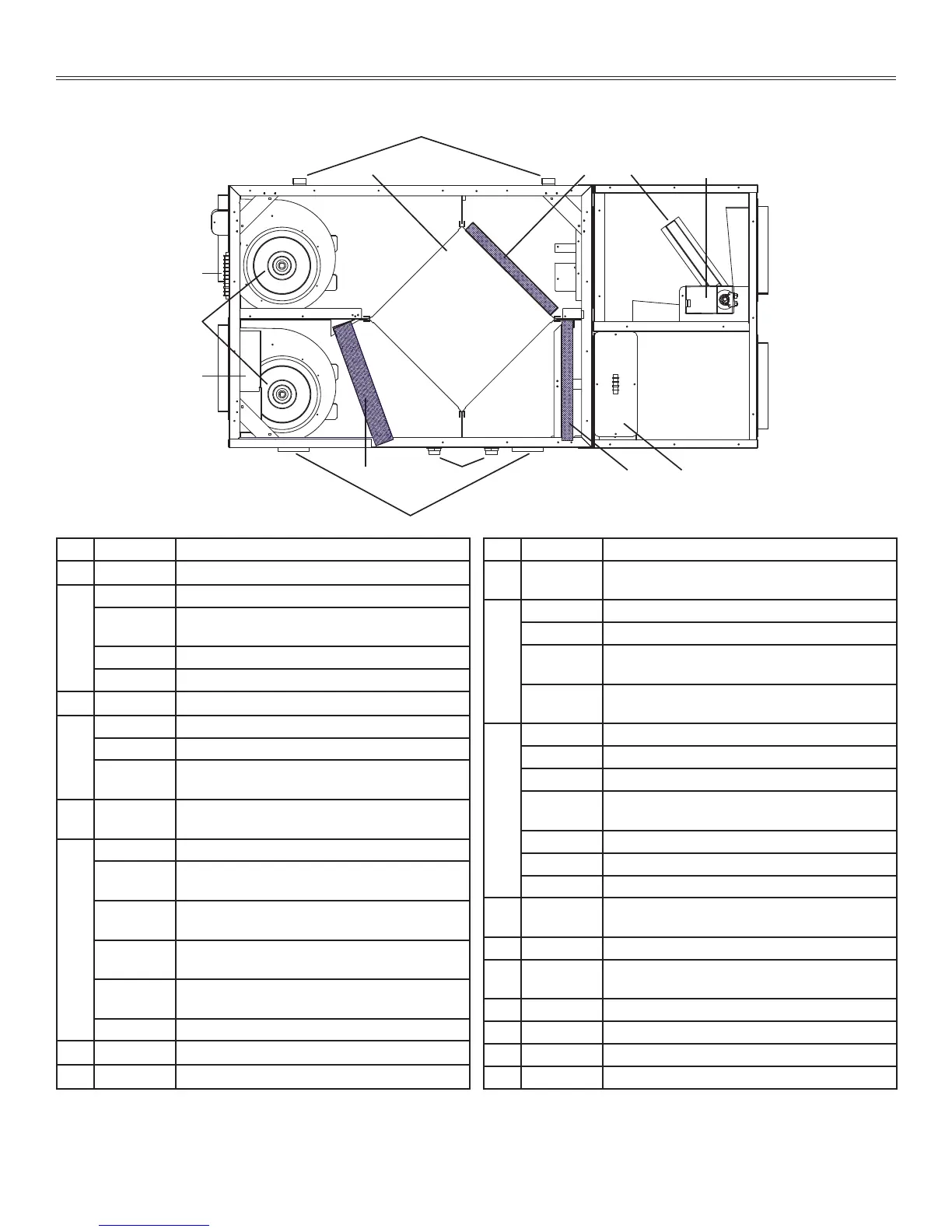

6.2 6LC, V6LC-12LC, V12LC Recirculation Defrost
B
C
D
DE F
G
I
J
H
K
L
M
VL0069
Ref. Part No. Description
B
13036 Hinge kit (male-female)
C
1808147 Core Poly CSA 6LC, V6LC-12LC, V12LC (unitary)
1808146
Core Poly UL 6LC, V6LC-12LC, V12LC U.S.
only (unitary)
1604191 Core Aluminum 6LC, V6LC-12LC, V12LC (unitary)
1607787 ERV HM Core 6LC, V6LC-12LC, V12LC (unitary)
D
201805 Filter SWF 13.125" x 11.25" x 1" (unitary)
E
63333 Recirculation Damper 6LC, V6LC
63334 Recirculation Damper 12LC, V12LC
63335
Recirculation Damper 12LC, V12LC Powder
Coated
F
225855
Damper Motor Belimo LMB24-3-T, 7000,
6LC, V6LC-12LC, V12LC (Recirc. Defrost Option)
G
*
066161 Fuse Holder 6LC, V6LC, 12LC, V12LC, 7000
201603
Terminal Strip 3-Pin Molex 38721-6703 6LC,
V6LC, 12LC, V12LC (Recirculation Defrost)
63352
Relay DPDT 24 VAC, 1/2 HP, 15 A @ 120 VAC,
6LC, V6LC, 12LC, V12LC (Recir. Defrost Option)
066176
Fuse 0.25 A, 250 V Time Delay 1.25" MDL 6LC,
V6LC-12LC, V12LC (Recirc. Defrost Option)
500025914
Relay SPDT 120 VAC, 1 HP,
30 A @ 120 VAC, 6LC, V6LC, 12LC, V12LC
64098 Transformer 120-24V 40VA
H
16035 Door Latch-Keeper Kit
I
1607456 Drain Fitting 6LC, V6LC, 12LC, V12LC, 7000 (unitary)
Ref. Part No. Description
J
63342
Filter Optional MEF 6LC, V6LC, 12LC, V12LC
(unitary)
K *
1808130 PCB Electronic 6LC, V6LC, 12LC, V12LC, 7000
202382 Thermistor 6LC, V6LC, 12LC, V12LC, 7000
500025914
Relay SPDT 120 VAC, 1 HP,
30 A @ 120 VAC, 6LC, V6LC, 12LC, V12LC
500025915
Relay DPST 120 VAC, 1 HP,
30 A @ 120 VAC, 6LC, V6LC, 12LC, V12LC
L
1808144 Blower Ass’y 6LC, V6LC
1808148 Blower Ass’y 12LC, V12LC
1808148P Blower Ass’y 12LC, V12LC Powder Coated Option
1808142
Blower Wheel 6LC, V6LC, 12LC, V12LC (not
shown)
1808149 Fan Motor 6LC, V6LC (not shown)
1808150 Fan Motor 12LC, V12LC (not shown)
63110 Capacitor 5 F LC, 7000 (not shown)
M
208507
Terminal Strip 10-Pin Molex 38721-6710,
6LC, V6LC, 12LC, V12LC
* 202798 Door Assembly 6LC, V6LC, 12LC, V12LC
* 63343
Door Assembly
12LC, V12LC
(Powder Coated Option)
* 1808145 Accessories kit 6LC, V6LC, 12LC, V12LC
* 63344 Hanger Strap 18" Kit 6LC, V6LC, 12LC, V12LC, 7000
* 64228 Backdraft damper 6LC, V6LC recirculation
* 64229 Backdraft damper 12LC, V12LC recirculation
* Not Shown.
NOTE 1: C 2 cores required for 6LC and V6LC units
3 cores required for 12LC and V12LC units
NOTE 2: D 4 filters for 6LC and V6LC units
6 filters for 12LC and V12LC units
NOTE 3: J 2 filters for 6LC and V6LC units
3 filters for 12LC and V12LC units
* Not Shown.
